Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |

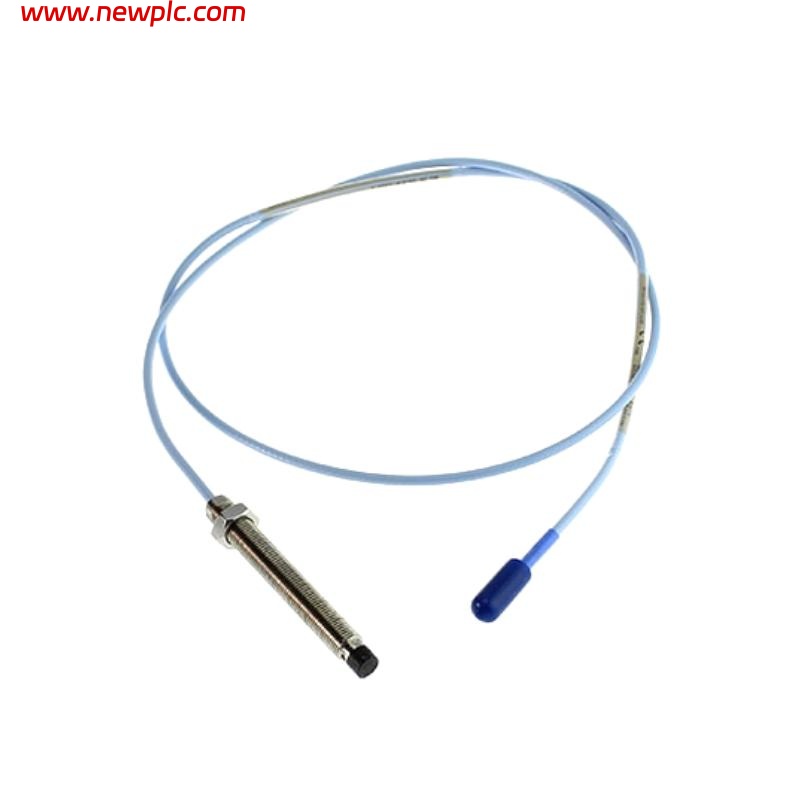

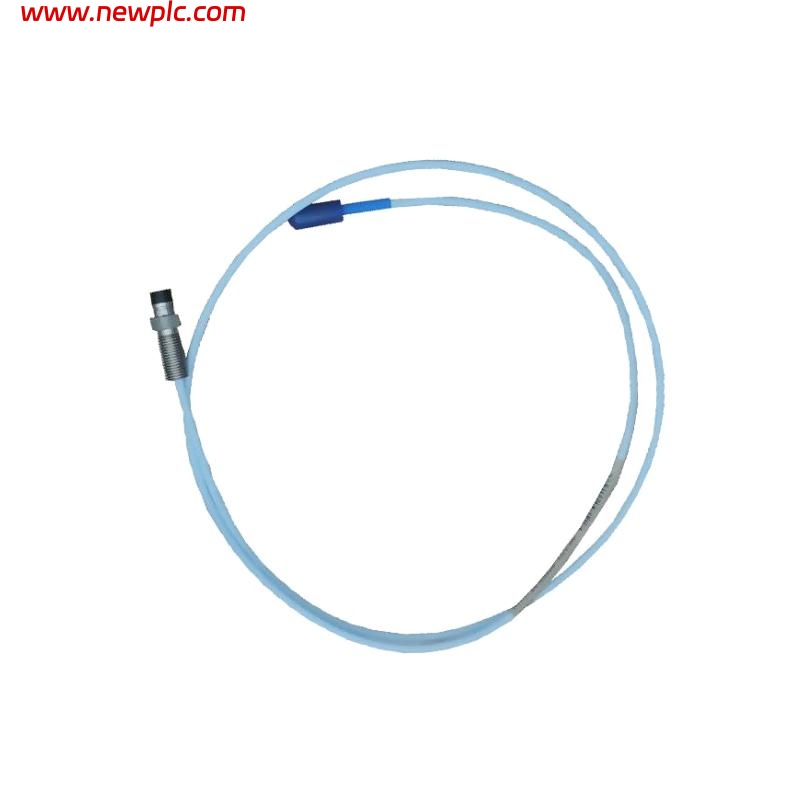

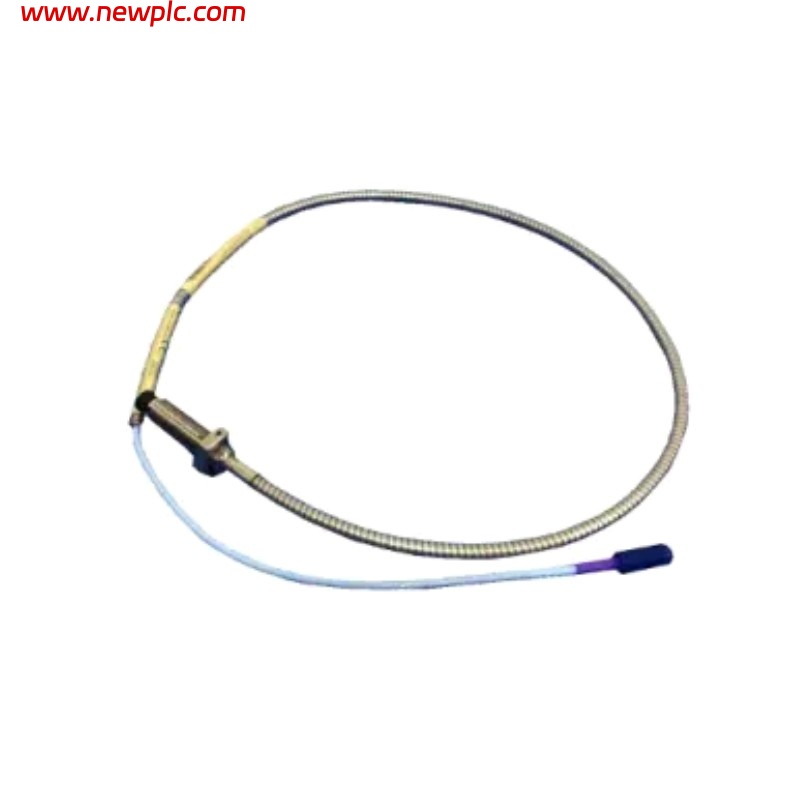

| Product | Bently Nevada 330171‑XX‑XX‑10‑02‑05 |
| Product Model | 330171‑XX‑XX‑10‑02‑05 |
| Product Type | 3300 Series 5 mm Eddy‑Current Proximity Probe |
| Measurement Principle | Non‑contact displacement and vibration measurement using eddy‑current sensing |
| Probe Tip Diameter | 5 mm |
| Thread Type | 1/4‑28 UNF standard mounting |
| Unthreaded Length | Configurable (code “XX”) – probe body section without thread |
| Overall Case Length | Configurable (code “XX”) – total rigid probe section length |
| Cable Length | 1.0 m (code “10”) |
| Connector Type | Miniature coaxial ClickLoc connector (code “02”) |
| Agency Approval | Multiple approvals (code “05”) |
| Linear Sensing Range | ~0.25 mm – 2.0 mm typical for 5 mm probes |
| Output Signal | Analog voltage proportional to gap/displacement (requires conditioning electronics) |
| Frequency Response | DC – ~10 kHz typical for 3300 series probes |
| Operating Temperature Range | –35 °C to +177 °C typical industrial range |
| Housing Material | Stainless steel probe body |
| Cable Jacket | FEP insulated coaxial cable with shielding |
| Dimensions | Probe rigid body length and unthreaded portion depend on specific “XX‑XX” configuration; overall assembly includes 1.0 m cable |
| Weight | ~0.25–0.32 kg typical depending on specific configuration |
| Operating Environment | Designed for industrial machinery condition monitoring systems |
| Compliance | Compatible with 3300 series Proximitor and monitoring electronics |
FAQ
FAQ
Q1: What does the “XX‑XX” in the model code 330171‑XX‑XX‑10‑02‑05 represent?
A1: The “XX‑XX” placeholders represent customizable options for unthreaded length and overall case length of the probe when ordered; these determine the rigid portion of the probe body that fits into the machine.
Q2: What is the meaning of “10” in the part number?
A2: The “10” indicates the cable length option, which corresponds to approximately 1.0 meter (3.3 ft) of integral cable.
Q3: What does “02” signify in the part code?
A3: “02” designates the connector type — a miniature coaxial ClickLoc connector used for reliable electrical connection.
Q4: What does “05” indicate at the end of the part number?
A4: “05” means the probe has multiple agency approvals for broad industrial applicability.
Q5: Does this product include a proximitor or conditioning module?
A5: No, this is a passive proximity probe; it must be connected to a compatible proximitor sensor or condition monitoring electronics to condition and interpret the signal.
Q6: What machinery applications is this probe suitable for?
A6: It is commonly used on turbines, compressors, pumps, motors, and generators for continuous vibration and shaft position monitoring in industrial environments.
Q7: How is the probe installed?
A7: The probe is threaded into a housing or mounting block using its 1/4‑28 UNF thread and positioned such that the sensing tip faces the target surface at the required gap.
Q8: What maintenance is needed for this proximity probe?
A8: Routine visual inspection and verification of gap settings during machine maintenance are recommended; no frequent factory calibration is usually needed under normal service.
