Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |

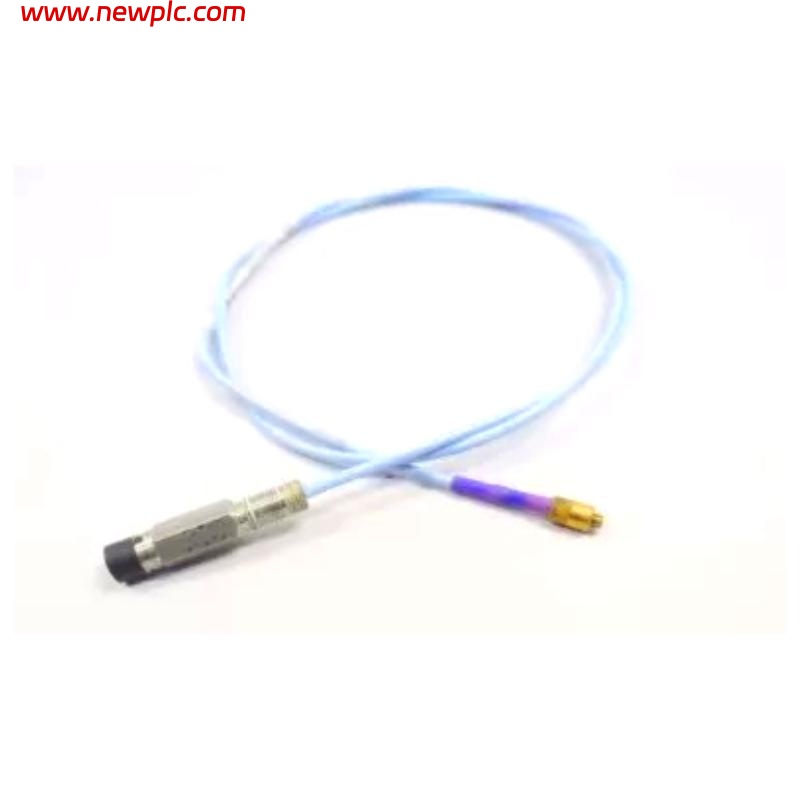

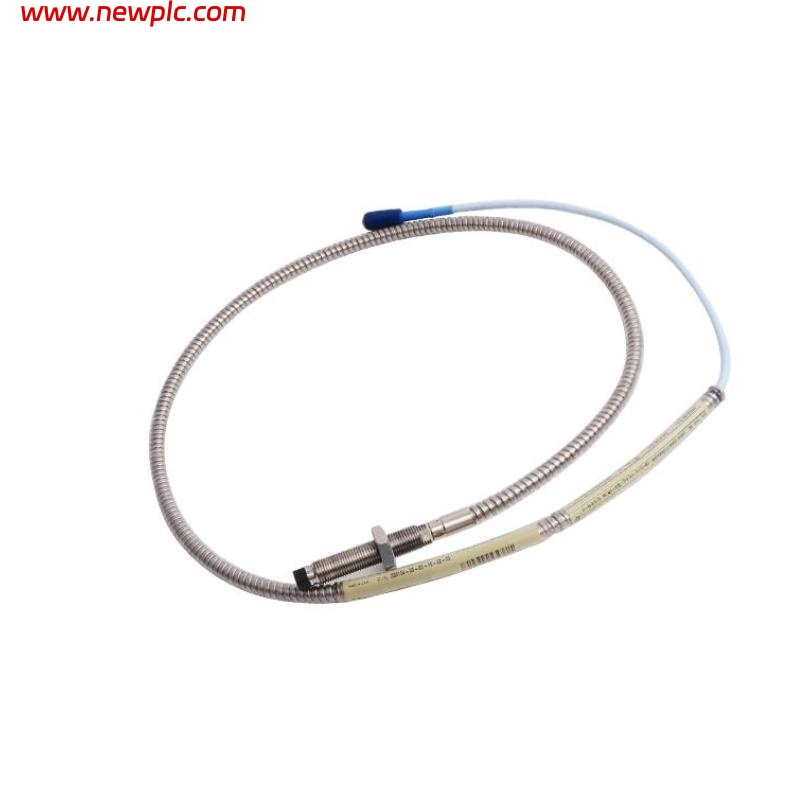

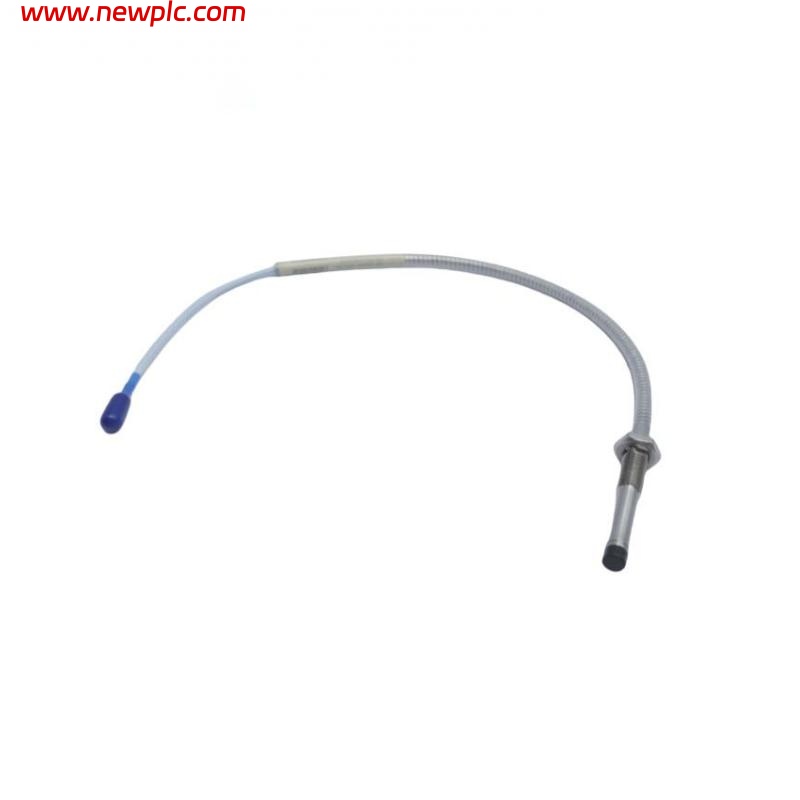

| Product | 330173-15-20-10-12-00 3300 Series 5 mm Proximity Probe |
| Product Model | 330173-15-20-10-12-00 |
| Product Type | 3300 Series Eddy-Current Proximity Probe |
| Measurement Principle | Non-contact eddy-current displacement and vibration sensing on rotating machinery (turn1search19) |
| Probe Tip Diameter | 5 mm (standard 3300 series) (turn1search19) |
| Thread Size | M8 × 1 threaded mount (typical for 5 mm 3300 probes) |
| Unthreaded Length | ~150 mm (code “15”, indicative of ordering convention for longer unthreaded/lead section before body) |
| Overall Rigid Body Length | ~200 mm (code “20”, denotes long rigid body section typical for high-reach probes) |
| Cable Length | ~1.0 m (code “10”) |
| Connector Type | Miniature coaxial ClickLoc™ connector with FluidLoc™-style cable (code “12”) |
| Agency Approval | None (code “00”) |
| Linear Sensing Range | ~0.25 mm to ~2.0 mm typical for 3300 series 5 mm proximity probes (turn1search19) |
| Output Signal | Analog voltage proportional to gap/displacement; requires conditioning electronics |
| Frequency Response | DC to ~10 kHz typical for 3300 5 mm probes |
| Operating Temperature Range | –40 °C to +177 °C typical industrial range |
| Housing Material | Stainless steel rugged industrial probe body |
| Cable Jacket | FEP-insulated, shielded coaxial cable |
| Dimensions | Probe rigid body ~200 mm × 5 mm Ø; integral cable ~1.0 m |
| Weight | ~0.35 kg (assembled with cable and connector) |
| Operating Environment | Industrial rotating machinery condition monitoring |
| Compliance | Designed to interface with 3300 proximitor and monitoring electronics |
FAQ
FAQ
Q1: What is the Bently Nevada 330173-15-20-10-12-00 used for?
A1: It is a 3300 Series eddy-current proximity probe used for non-contact measurement of shaft vibration and displacement in industrial rotating machinery condition monitoring systems.
Q2: What does the “15” in the model number represent?
A2: “15” typically indicates a long unthreaded/lead segment (approximately 150 mm) ahead of the rigid body, based on internal part number ordering conventions.
Q3: What does the “20” in the model number mean?
A3: “20” refers to the overall rigid body length code, representing a relatively long body section (approximately 200 mm) for extended reach into machinery housings.
Q4: How long is the cable attached to this probe?
A4: The integral cable is approximately 1.0 meter long (code “10”), providing flexibility in routing to proximitor or monitoring electronics.
Q5: What connector does this probe use?
A5: This model uses a miniature coaxial ClickLoc™ connector with a higher-performance cable option (code “12”), facilitating a secure and reliable connection.
Q6: What is the typical sensing range of this probe?
A6: The usual linear sensing range for a 5 mm 3300 Series proximity probe is roughly 0.25 mm to about 2.0 mm from the target surface, depending on system gap settings and conditioning.
Q7: What environments can this probe operate in?
A7: It is built for rugged industrial environments and can operate across a wide temperature range, typically from –40 °C up to +177 °C.
Q8: What additional components are required to use this probe?
A8: A compatible proximitor conditioning sensor and monitoring electronics are needed to condition and interpret the raw analog output signal.
