Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |

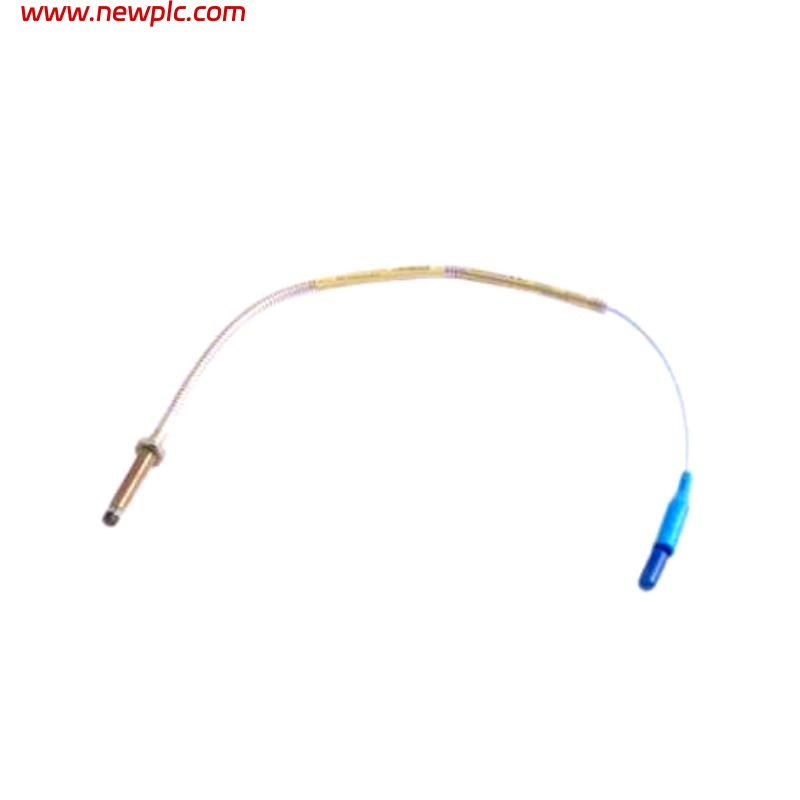

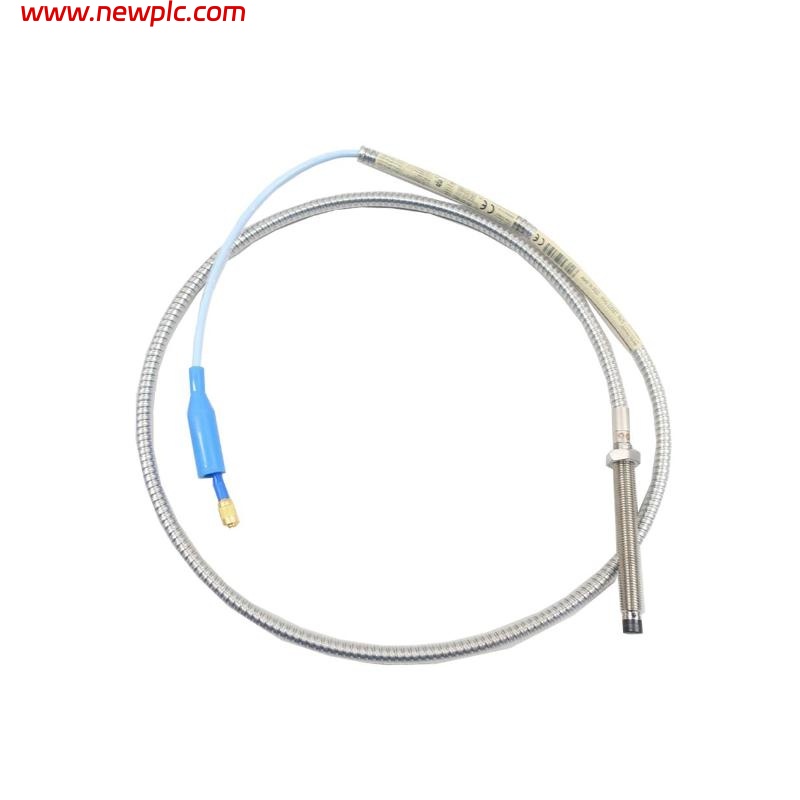

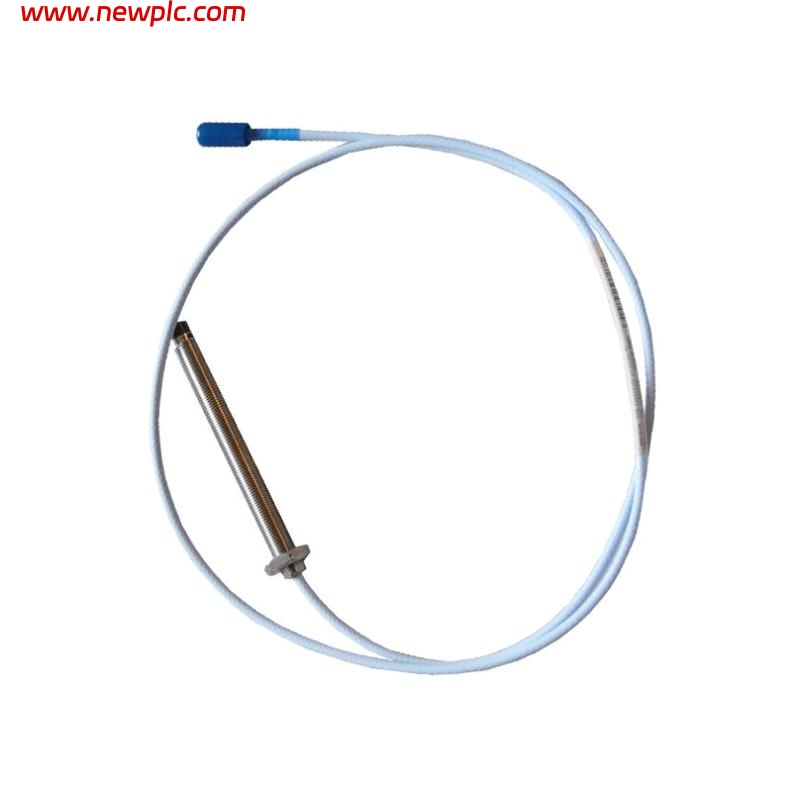

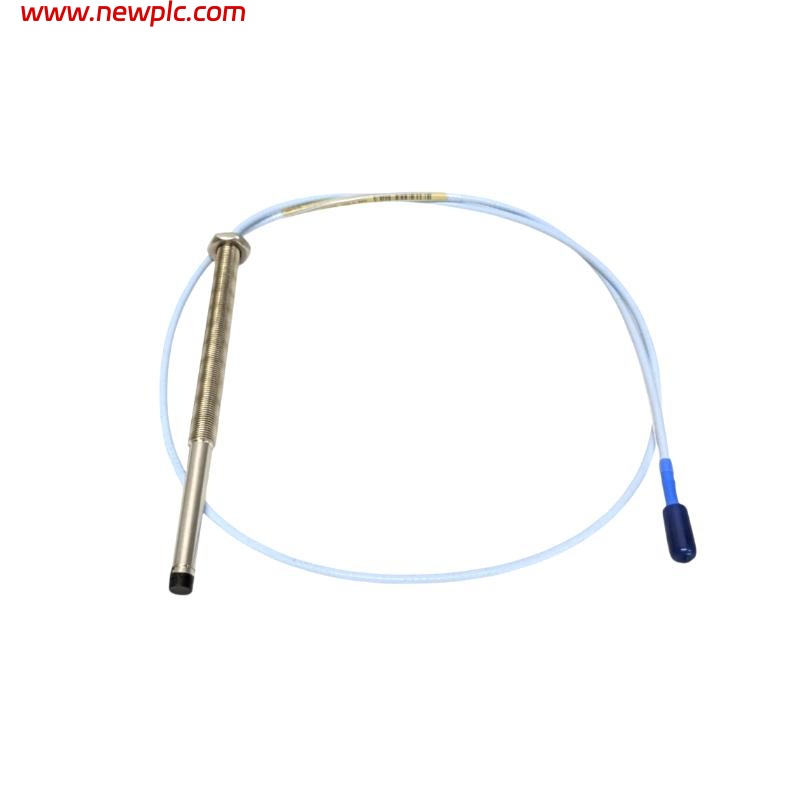

| Product | ** (Representative 3300 Series 5 mm Proximity Probe)** |
| Product Model | 330173-XX-XX-20-02-05 (ordering code with variable unthreaded & case lengths) |
| Alternative / MOD Code | 148001-00-025 (associated internal/alternate reference) |
| Product Type | 3300 Series Eddy-Current Proximity Probe (5 mm) |
| Measurement Principle | Non-contact displacement & vibration measurement using eddy-current technology |
| Probe Tip Diameter | 5 mm (standard 3300 Series) |
| Thread Size | M8 × 1 threaded mount (typical for 5 mm probes) |
| Unthreaded Length | Configurable (indicated by “XX” in part number; defined per specific ordered length) |
| Overall Rigid Body Length | Configurable (indicated by “XX” in part number; defined per specific ordered length) |
| Cable Length | 2.0 m (code “20”) |
| Connector Type | Miniature coaxial ClickLoc™ connector (code “02”) |
| Agency Approval | “05” — Standard industrial approval/configuration (e.g., CSA/ATEX/IECEx options depending on exact suffix meaning) |
| Linear Sensing Range | Approximately 0.25 mm to ~2.3 mm (10–90 mils) typical for 3300 5 mm probes |
| Output Signal | Raw analog voltage proportional to gap/displacement (requires proximitor/conditioning electronics) |
| Frequency Response | DC to ~10 kHz typical for 3300 Series probes |
| Operating Temperature Range | Approximately –40 °C to +177 °C typical industrial range |
| Housing Material | Stainless steel rugged industrial probe body |
| Cable Jacket | FEP-insulated, shielded coaxial cable |
| Approximate Dimensions | Probe rigid body and unthreaded portion defined per specific ordered codes; cable length 2.0 m; tip diameter 5 mm |
| Weight | ~0.32 kg typical assembled (probe with cable) |
| Operating Environment | Industrial rotating machinery condition monitoring systems |
| Compliance | Designed for use with 3300 Series proximitor and monitoring electronics |
FAQ
FAQ
Q1: What is the Bently Nevada 330173-XX-XX-20-02-05 (148001-00-025)?
A1: It is a 3300 Series 5 mm eddy-current proximity probe designed for non-contact measurement of shaft vibration and displacement in industrial rotating machinery condition monitoring systems.
Q2: What does the model number suffix “20-02-05” stand for?
A2: “20” indicates a 2.0 m integral cable length, “02” denotes a miniature coaxial ClickLoc™ connector, and “05” refers to the standard industrial approvals/configuration options.
Q3: What is the meaning of “XX-XX” in the part number?
A3: The double “XX” placeholders represent customizable lengths for the unthreaded and overall rigid body portions of the probe as specified at order time.
Q4: What is the typical sensing range of this proximity probe?
A4: It typically provides a linear sensing range from about 0.25 mm up to approximately 2.3 mm from the target surface when used with compatible conditioning electronics.
Q5: What type of output signal does this probe produce?
A5: The probe produces a raw analog voltage proportional to the gap/displacement; this signal must be conditioned using a proximitor or dedicated monitoring electronics for useful data.
Q6: What environments can this probe withstand?
A6: It is built for rugged, industrial environments and can operate across a wide temperature range common to 3300 Series probes (approximately –40 °C to +177 °C).
Q7: How is this probe physically mounted?
A7: The probe uses an M8 × 1 threaded mount into a housing or mounting block; the specific rigid and unthreaded lengths adjust how far it extends into the machinery.
Q8: What additional components are needed to use this probe?
A8: To form a complete measurement system, you need a compatible proximitor conditioning sensor and, if required, extension cables and monitoring electronics to condition and interpret the analog output signal.
