Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |

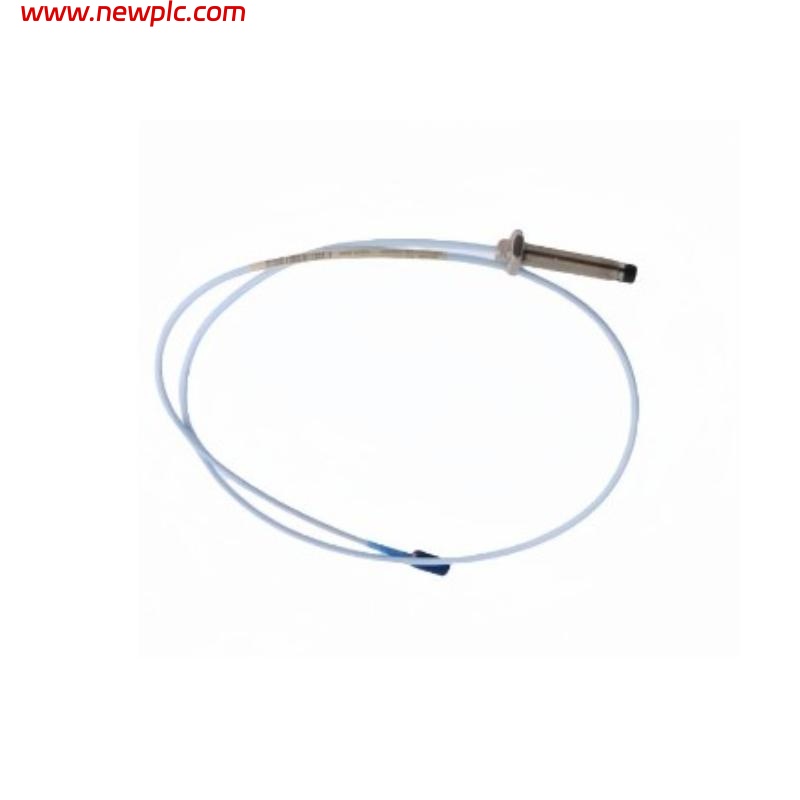

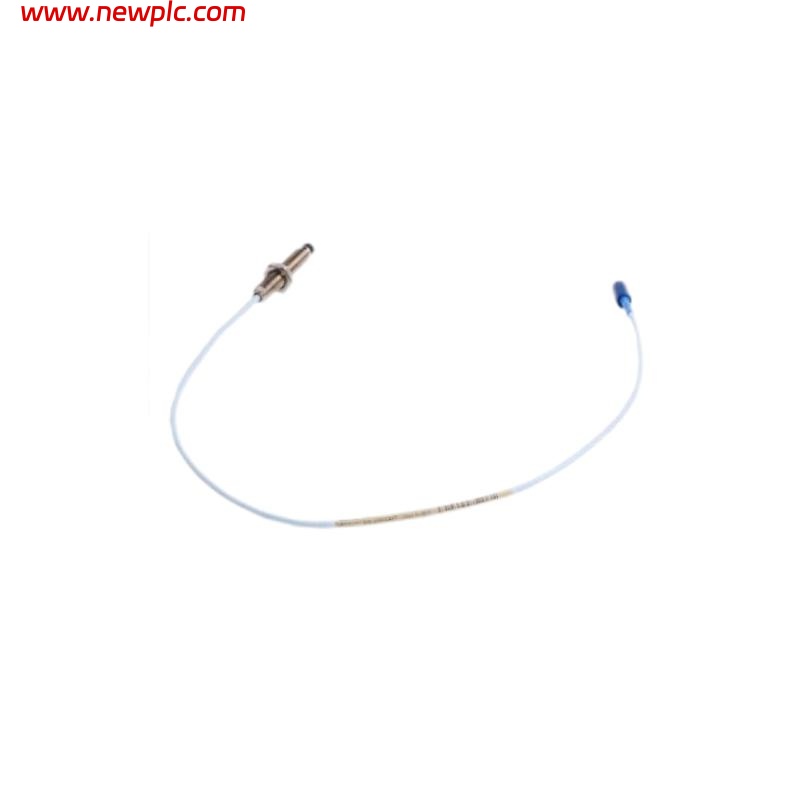

| Product | **** (Representative of 330174 5 mm series; actual 330174‑00‑06‑20‑02‑00 variant uses similar base design) |
| Product Model | 330174‑00‑06‑20‑02‑00 |
| Product Type | 3300 Series Eddy‑Current Proximity Probe |
| Measurement Principle | Non‑contact eddy‑current displacement & vibration sensing — 5 mm transducer type |
| Probe Tip Diameter | 5 mm (standard 3300 Series) |
| Thread Size | M8 × 1 threaded mount (metric) |
| Unthreaded Length | 0 mm (code “00”) |
| Overall Rigid Body Length | 60 mm (code “06”) (typical based on code conventions; “06” = 60 mm case length) (turn0search25) |
| Cable Length | 2.0 m (code “20”) – integral probe cable |
| Connector Type | Miniature coaxial ClickLoc™ connector (code “02”) |
| Agency Approval | None (code “00”) |
| Linear Sensing Range | ~0.25 mm to ~2.3 mm typical for 5 mm 3300 probes |
| Output Signal | Raw analog voltage proportional to displacement (requires conditioning via proximitor or monitoring electronics) |
| Frequency Response | DC to ~10 kHz typical for 3300 Series probes |
| Operating Temperature Range | –35 °C to +177 °C typical industrial range |
| Housing Material | Stainless steel rugged probe body |
| Cable Jacket | Shielded FEP‑insulated coaxial cable |
| Dimensions (Overall) | Probe body ~60 mm length × 5 mm diameter; cable ~2.0 m |
| Weight | ~0.32 kg typical (probe + cable assembly) |
| Operating Environment | Industrial rotating machinery condition monitoring |
| Compliance | Works with 3300 Series proximitor and monitoring electronics |
FAQ
FAQ
Q1: What is the Bently Nevada 330174‑00‑06‑20‑02‑00 used for?
A1: It is a 5 mm 3300 Series eddy‑current proximity probe designed for non‑contact measurement of shaft vibration and displacement on rotating machinery as part of an industrial condition monitoring system.
Q2: What do the model number segments “06‑20‑02‑00” mean?
A2: “06” indicates a rigid body case about 60 mm long, “20” means the integral cable is approximately 2.0 meters long, “02” identifies the miniature coaxial ClickLoc™ connector, and “00” shows no special agency approval options.
Q3: What is the sensing range of this probe?
A3: Typical linear sensing range is from approximately 0.25 mm up to around 2.3 mm from the target surface when used with compatible proximitor conditioning systems.
Q4: What type of signal does this proximity probe output?
A4: It produces a raw analog voltage proportional to gap/displacement; this signal must be conditioned by a proximitor sensor or monitoring electronics to be used.
Q5: What environments can this probe withstand?
A5: The probe is built for industrial environments and can operate across a wide temperature range (about –35 °C to +177 °C) with a rugged stainless steel housing.
Q6: What connector and cable does this product use?
A6: It uses a Miniature coaxial ClickLoc™ connector with a 2.0 m cable, providing secure and reliable electrical connections.
Q7: How is the probe physically mounted?
A7: It mounts via an M8 × 1 threaded section into an appropriate housing or mounting block, giving a stable position in rotor‑to‑shaft clearance measurement applications.
Q8: What additional components are required to use this probe?
A8: To make a working measurement setup, you need a compatible proximitor conditioning sensor, and potentially extension cable and monitoring electronics to condition, process, and analyze the raw output signal.
