Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |

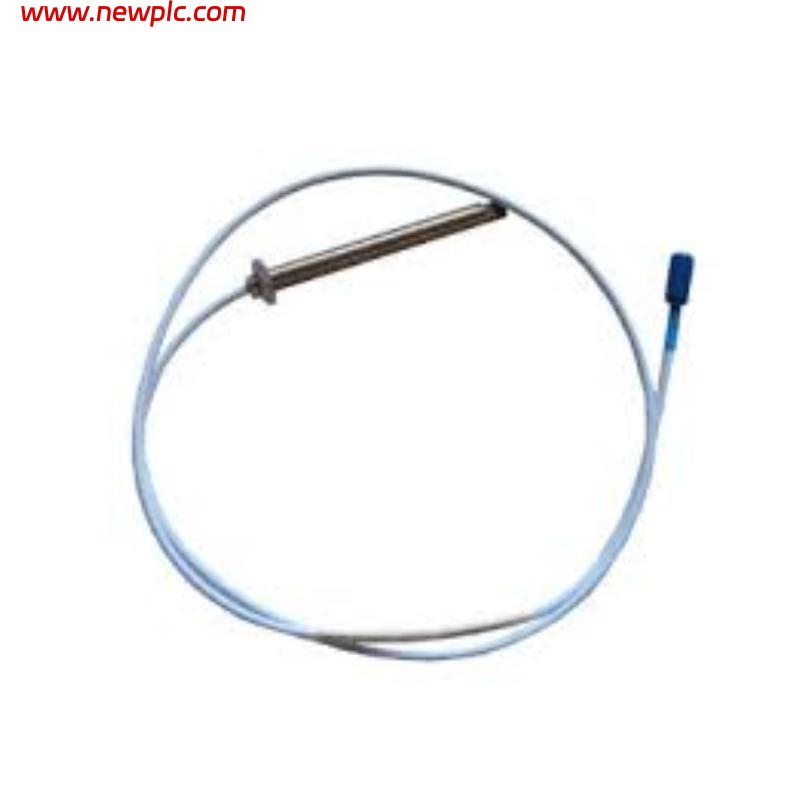

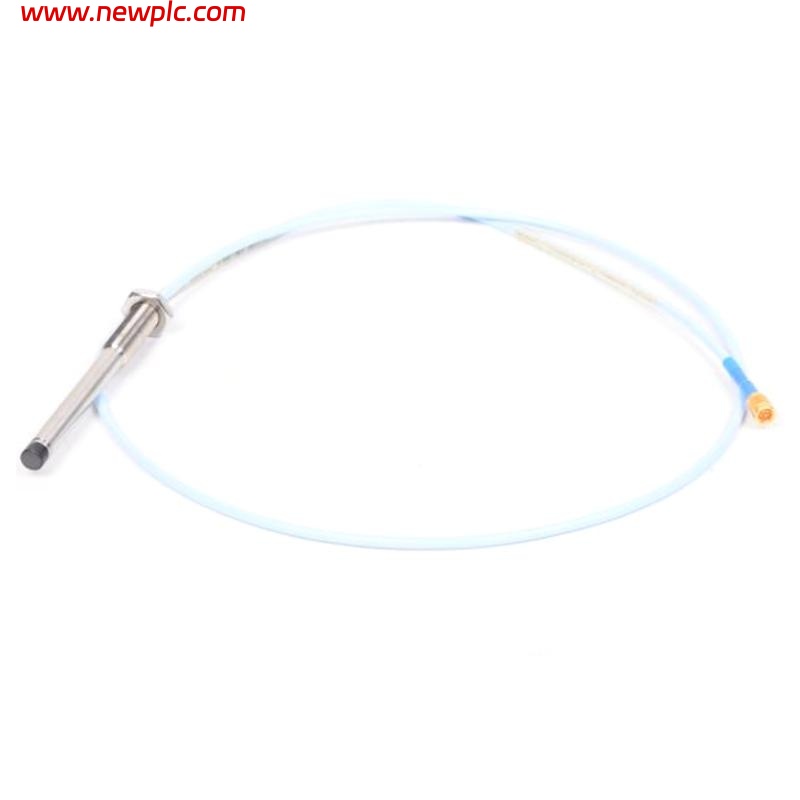

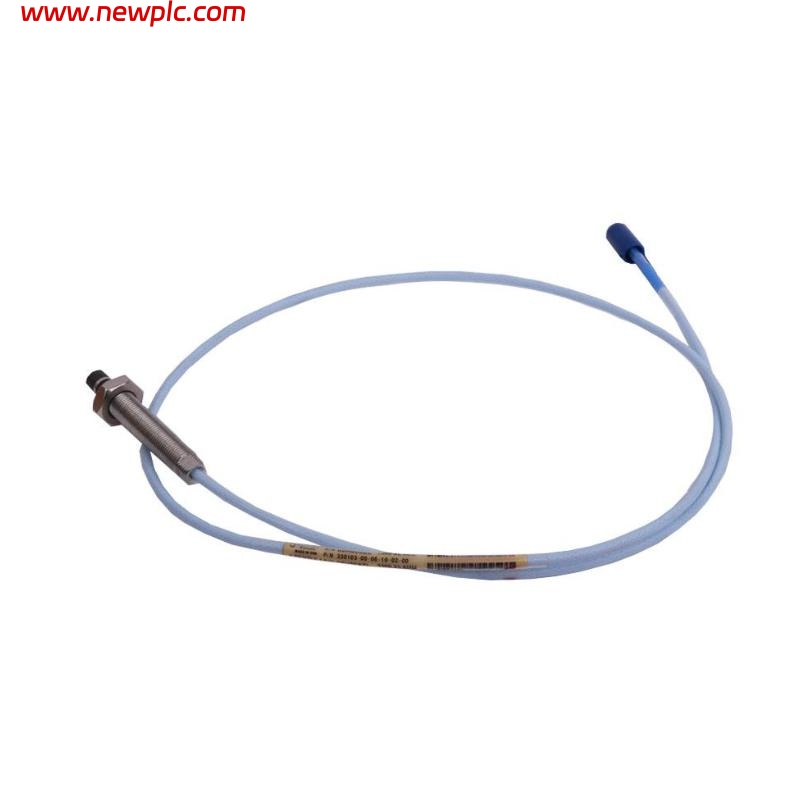

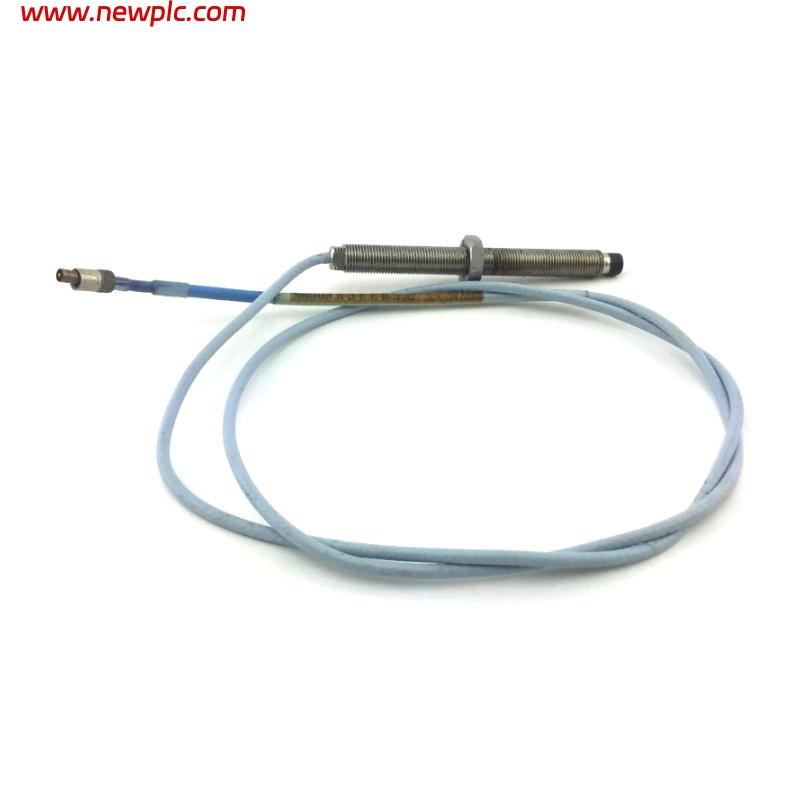

| Product | 330174‑02‑15‑10‑02‑05 3300 Series 5 mm Eddy‑Current Proximity Probe |
| Product Model | 330174‑02‑15‑10‑02‑05 |
| Product Type | 3300 Series Eddy‑Current Proximity Probe |
| Measurement Principle | Non‑contact eddy‑current displacement and vibration sensing |
| Probe Tip Diameter | 5 mm |
| Thread Size | M8 × 1 threaded mount |
| Unthreaded Length | 0 mm |
| Overall Rigid Body Length | 15 mm |
| Cable Length | 1.0 m |
| Connector Type | Miniature coaxial ClickLoc™ connector |
| Agency Approval | Standard industrial approvals (code “05”) |
| Linear Sensing Range | 0.25 mm – 2.3 mm |
| Output Signal | Raw analog voltage proportional to target gap (requires conditioning electronics) |
| Frequency Response | DC – 10 kHz |
| Operating Temperature Range | –35 °C to +177 °C |
| Housing Material | Stainless steel rugged industrial body |
| Cable Jacket | FEP‑insulated, shielded coaxial cable |
| Dimensions | Probe body 15 mm × 5 mm diameter; integral cable 1.0 m |
| Weight | 0.30 kg assembled |
| Operating Environment | Industrial rotating machinery condition monitoring |
| Compliance | Compatible with 3300 Series proximitor and monitoring electronics |
FAQ
FAQ
Q1: What is the Bently Nevada 330174‑02‑15‑10‑02‑05 used for?
A1: It is a 5 mm eddy‑current proximity probe for non‑contact measurement of shaft vibration and displacement in industrial rotating machinery.
Q2: What does the “15” in the model number indicate?
A2: “15” refers to the rigid body length of approximately 15 mm.
Q3: What is the length of the cable?
A3: The probe comes with a 1.0 meter integral cable.
Q4: What type of connector does this probe use?
A4: It uses a miniature coaxial ClickLoc™ connector.
Q5: What is the typical sensing range?
A5: The linear sensing range is approximately 0.25 mm to 2.3 mm.
Q6: What type of signal does this probe output?
A6: The probe provides a raw analog voltage proportional to the gap/displacement; conditioning electronics are required to use the signal.
Q7: What environments is this probe suitable for?
A7: It is suitable for industrial environments and can operate in temperatures from –35 °C to +177 °C.
Q8: Are additional components required to use this probe?
A8: Yes, a compatible proximitor conditioning sensor and monitoring electronics are required to interpret the signal.
