Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |

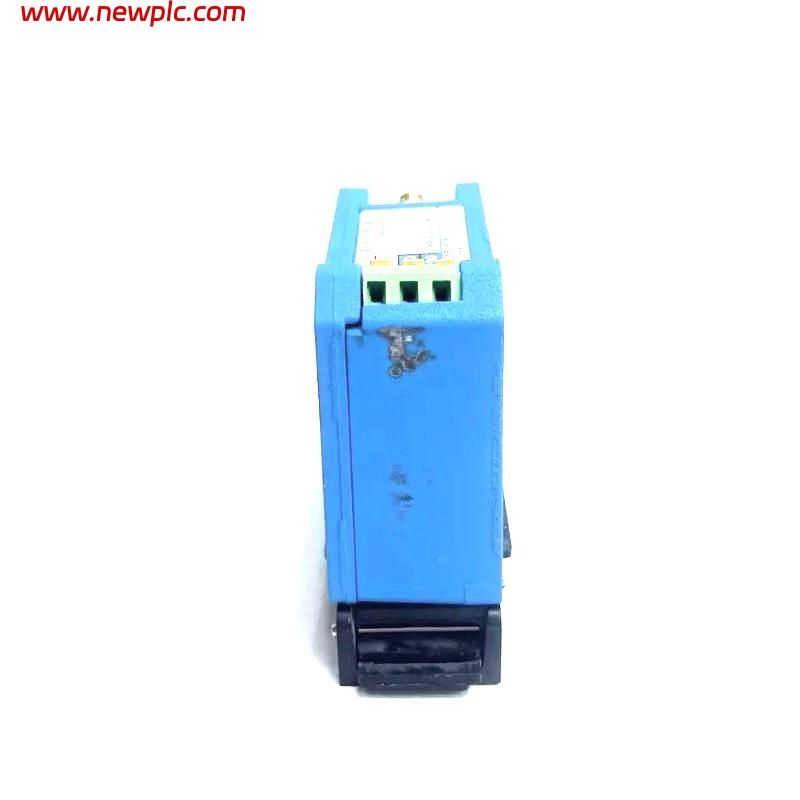

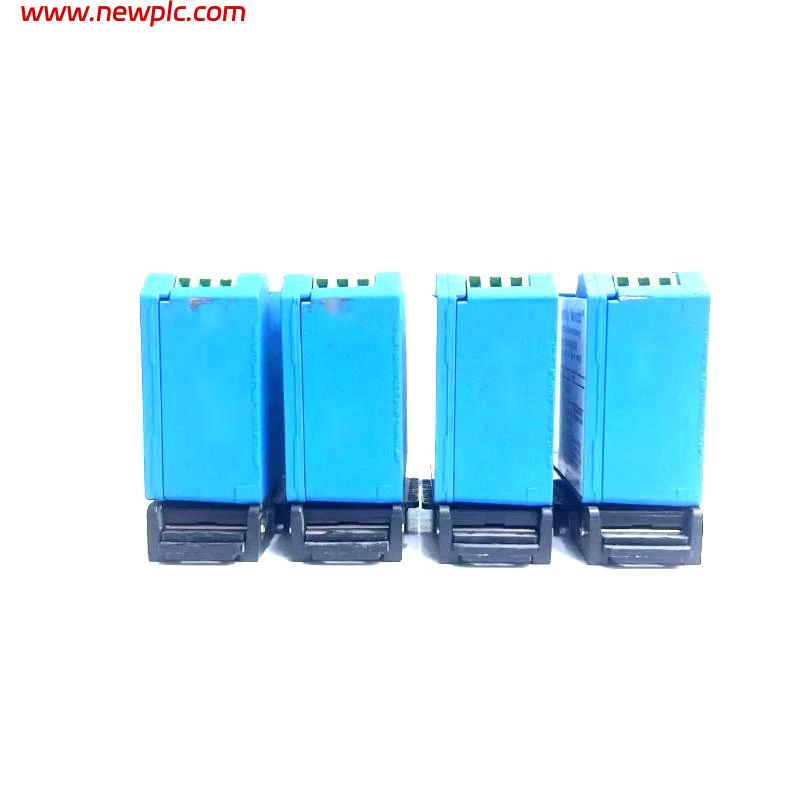

| Product | Bently Nevada 330180‑X0‑05 Proximitor Sensor (330180-X0-05, mod reference 145004-04) |
| Product Model | 330180-X0-05 |
| Internal Reference | 145004-04 |
| Product Type | 3300 XL Series Proximitor Sensor |
| Measurement Principle | Non-contact eddy-current conditioning sensor for proximity probes |
| Compatible Probes | 3300 and 3300 XL Series 5 mm / 8 mm proximity probes |
| Output Signal | Analog voltage proportional to probe gap/displacement |
| Operating Voltage | –17.5 V DC to –26 V DC typical (24 V DC system) |
| Supply Current | ~12 mA maximum under normal operation |
| Frequency Response | DC to ~10 kHz typical |
| Operating Temperature Range | –51 °C to +100 °C (industrial range) |
| Housing Material | Industrial grade – robust enclosure |
| Mounting | Panel mount and/or DIN-rail compatible |
| Dimensions | Compact industrial proximitor module |
| Weight | ~0.246 kg (lightweight) |
| Environmental Protection | Designed for rugged industrial conditions |
| Compliance | Suitable for condition monitoring / vibration measurement systems |
| Typical Applications | Rotating machinery machine condition monitoring and protection |
FAQ
FAQ
Q1: What is the Bently Nevada 330180-X0-05 proximitor sensor (mod 145004-04)?
A1: It is a proximitor conditioning module in the Bently Nevada 3300 XL family that converts raw signals from eddy-current proximity probes into an analog voltage output for monitoring systems.
Q2: Which probes can be connected to this proximitor sensor?
A2: It accepts both 5 mm and 8 mm diameter 3300 and 3300 XL series proximity probes, enabling flexible system configurations.
Q3: What signal output does this sensor provide?
A3: The device outputs an analog voltage proportional to the gap/displacement measured by the connected proximity probe.
Q4: What is the required operating voltage range?
A4: The proximitor typically operates on negative DC supply in the range of –17.5 V DC to –26 V DC (commonly supplied by a 24 V DC system).
Q5: What environmental conditions can this sensor operate in?
A5: It is built for rugged industrial settings and functions across a wide temperature range from roughly –51 °C to +100 °C.
Q6: What is the significance of the “05” suffix?
A6: The “05” indicates standard industrial agency approvals and configuration options integrated into the proximitor unit.
Q7: Is additional hardware needed to use this sensor?
A7: Yes — compatible proximity probes and monitoring or data acquisition electronics are required to complete a functioning measurement and monitoring system.

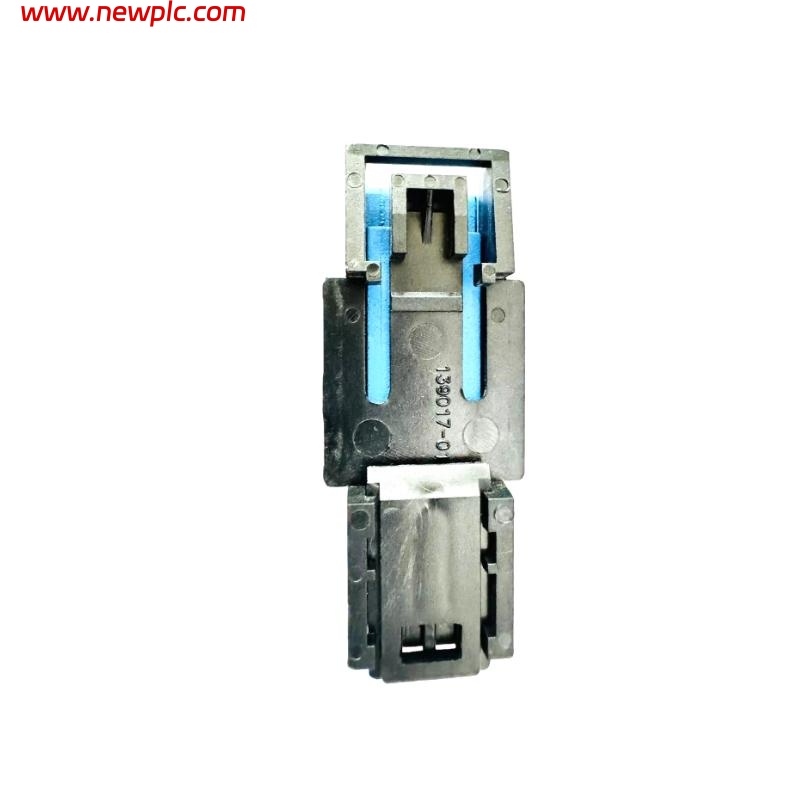

Q8: How is this sensor typically mounted?
A8: It is generally installed on a panel or DIN rail within a monitoring cabinet or equipment rack.
