Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |

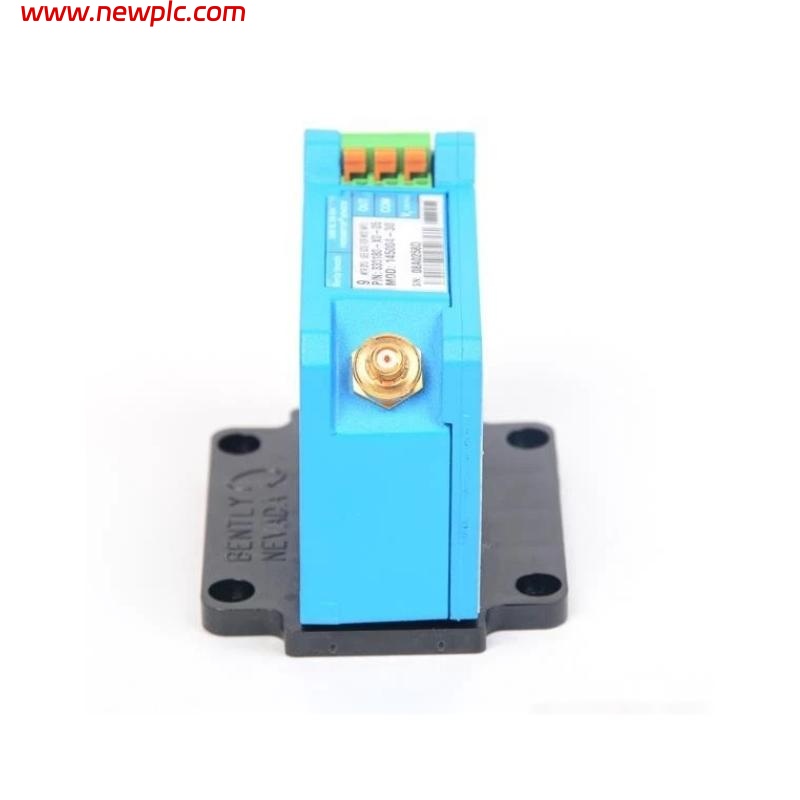

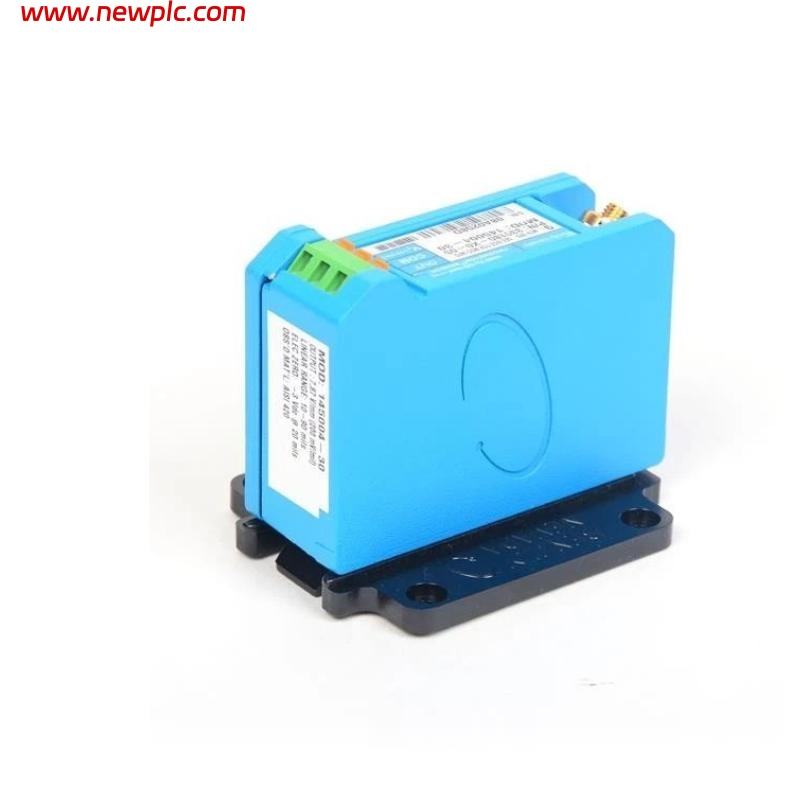

| Product | 330180-X0-05 Proximitor Sensor |
| Product Model | 330180-X0-05 |
| Internal Reference | 145193-01 |
| Product Type | 3300 XL Series Proximitor Sensor |
| Measurement Principle | Non-contact eddy-current signal conditioning for displacement and vibration |
| Compatible Probes | 3300 and 3300 XL Series proximity probes (5 mm and 8 mm) |
| Output Signal | Analog voltage proportional to probe gap/displacement |
| Power Supply Requirement | −17.5 VDC to −26 VDC (24 VDC nominal system supply) |
| Supply Current | Approximately 12 mA |
| Output Impedance | Approximately 50 Ω |
| Frequency Response | DC to 10 kHz |
| Linear Measurement Range | Determined by connected probe and system calibration |
| Operating Temperature Range | −40 °C to +100 °C |
| Mounting Method | Panel mount or DIN-rail mount |
| Housing Material | Industrial-grade enclosure |
| Dimensions | Compact proximitor module suitable for control cabinet installation |
| Weight | Approximately 0.25 kg |
| Operating Environment | Industrial rotating machinery monitoring |
| System Compatibility | Designed for use within Bently Nevada 3300 XL transducer systems |
FAQ
FAQ
Q1: What is the Bently Nevada 330180-X0-05 used for?
A1: It is a proximitor sensor used to condition signals from eddy-current proximity probes for shaft vibration and displacement monitoring.
Q2: What does the internal code 145193-01 indicate?
A2: It is an internal configuration and calibration reference used by the manufacturer for this specific proximitor variant.
Q3: Which probes are compatible with this proximitor sensor?
A3: It is compatible with 3300 and 3300 XL Series proximity probes in both 5 mm and 8 mm diameters.
Q4: What type of output does this sensor provide?
A4: It provides an analog voltage output proportional to the measured gap or displacement.
Q5: What power supply is required for this proximitor?
A5: It typically operates on a negative DC supply between −17.5 VDC and −26 VDC, with 24 VDC being common in industrial systems.
Q6: What temperature range can this sensor operate in?
A6: It is designed to operate reliably in environments from −40 °C to +100 °C.
Q7: Is additional equipment required to use this sensor?
A7: Yes, a compatible proximity probe, extension cable if needed, and monitoring or data acquisition equipment are required.
Q8: Where is this proximitor typically installed?
A8: It is usually mounted on a panel or DIN rail inside a control or monitoring cabinet as part of a machinery protection or condition monitoring system.
