Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |

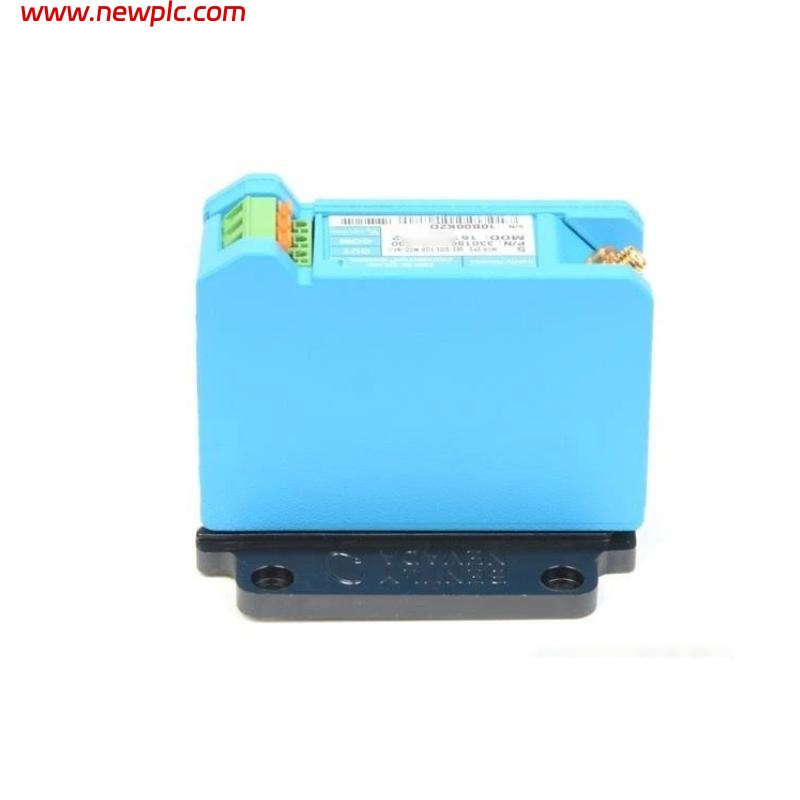

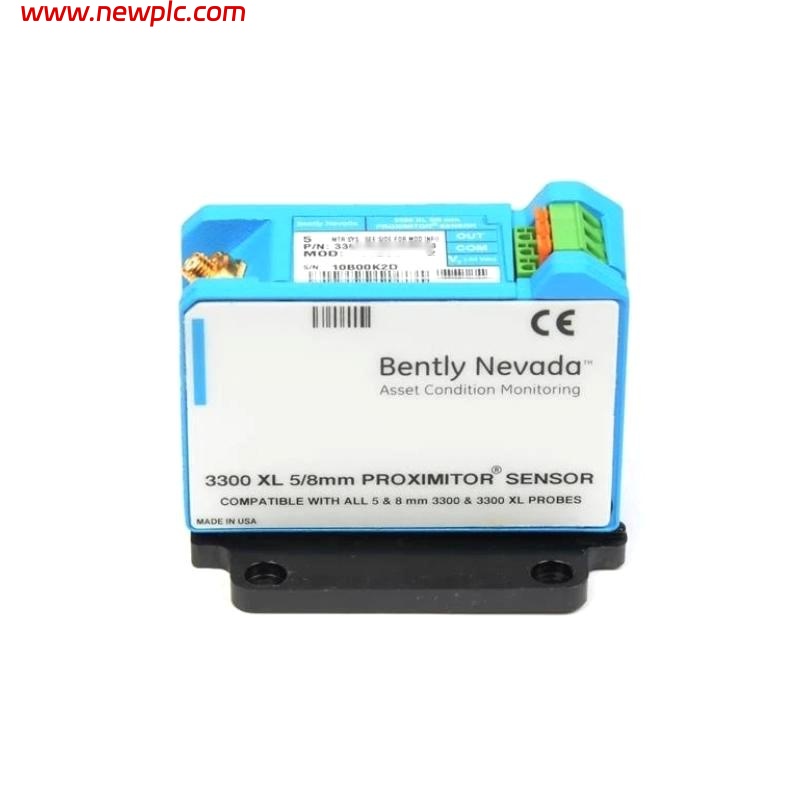

| Product | 330180‑X0‑05 Proximitor Sensor |
| Product Model | 330180‑X0‑05 |
| Internal Reference | 145004‑17 |
| Product Type | 3300 XL Series Proximitor Sensor |
| Measurement Principle | Non‑contact eddy‑current signal conditioning for displacement and vibration |
| Compatible Probes | 3300 and 3300 XL Series proximity probes (5 mm and 8 mm) |
| Output Signal | Analog voltage proportional to measured gap/displacement |
| Power Supply Requirement | −17.5 V DC to −26 V DC (24 V DC nominal system supply) |
| Supply Current | Approximately 10–15 mA |
| Output Impedance | Approximately 50 Ω |
| Frequency Response | DC to 10 kHz |
| Linear Measurement Range | Determined by connected probe and system calibration |
| Operating Temperature Range | −40 °C to +85 °C |
| Connector Type | Standard proximitor electrical interface |
| Mounting Method | Panel mount or DIN‑rail mount |
| Housing Material | Industrial‑grade enclosure |
| Dimensions | 80 mm × 60 mm × 60 mm |
| Weight | Approximately 0.25 kg |
| Operating Environment | Industrial rotating machinery condition monitoring |
| System Compatibility | Designed for use with industrial vibration/shaft displacement monitoring systems |
FAQ
FAQ
Q1: What is the Bently Nevada 330180‑X0‑05 proximitor sensor with internal reference 145004‑17 used for?
A1: It is a proximitor sensor used to condition raw signals from eddy‑current proximity probes and provide an analog voltage output for vibration and shaft displacement monitoring.
Q2: What does the internal reference 145004‑17 mean?
A2: It is an internal manufacturer code indicating a specific configuration, calibration, or option set for this proximitor variant.
Q3: Which proximity probes are compatible with this sensor?
A3: It is compatible with 3300 and 3300 XL Series proximity probes, including both 5 mm and 8 mm diameters.
Q4: What type of signal output does this proximitor provide?
A4: The sensor outputs an analog voltage proportional to the displacement gap detected by the connected proximity probe.
Q5: What power supply range does this sensor require?
A5: It typically operates on a negative DC supply between −17.5 V DC and −26 V DC, with 24 V DC commonly used in industrial environments.
Q6: What environments can this proximitor operate in?
A6: It is designed for rugged industrial environments and can operate within a temperature range of approximately −40 °C to +85 °C.
Q7: Is additional equipment required to use this sensor?
A7: Yes, a compatible proximity probe and monitoring or data acquisition electronics are required to complete the measurement system.
Q8: Where is this proximitor sensor typically installed?
A8: It is typically mounted on a panel or DIN rail inside a control cabinet or monitoring rack as part of a machine protection or condition monitoring system.
