Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Bently Nevada |
| Product | **** (variant with internal reference 145004‑128) |

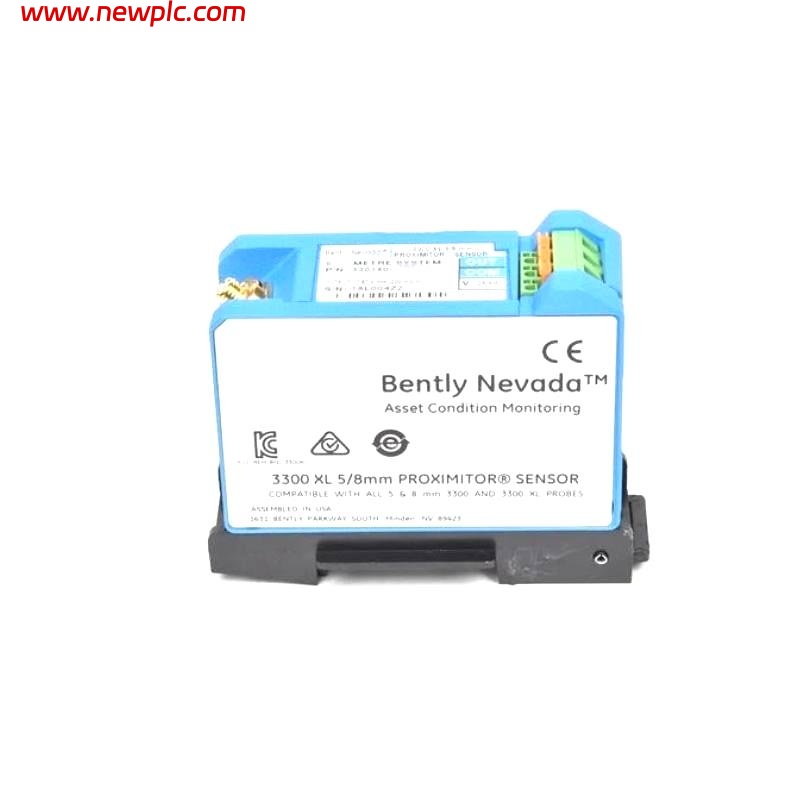

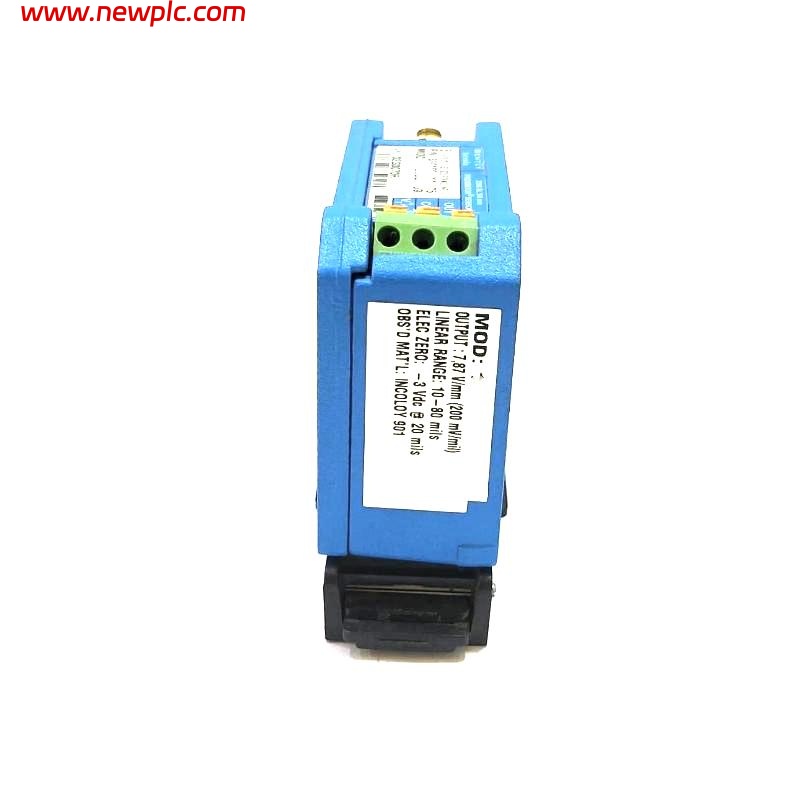

| Product Model | 330180‑X1‑00 |
| Internal Reference | 145004‑128 |
| Product Type | 3300 XL Series Proximitor Sensor |
| Measurement Principle | Non‑contact eddy‑current displacement and vibration signal conditioning |
| Compatible Probes | Works with 3300 and 3300 XL proximity probes (5 mm and 8 mm probe options) |
| Output Signal | 4‑20 mA analog output proportional to measured gap/displacement |
| Power Supply Requirement | 24 V DC typical |
| Supply Current | Up to ~15 mA |
| Frequency Response | DC to ~10 kHz |
| Operating Temperature Range | −40 °C to +85 °C |
| Housing Material | Stainless steel and industrial‑grade enclosure |
| Mounting | Panel or DIN mount options depending on suffix |
| Dimensions | Approx. 78 mm × 60 mm × 63 mm (Proximitor module) |
| Weight | ~0.24 kg |
| Operating Environment | Industrial rotating machinery condition monitoring |
| System Compatibility | Part of 3300 XL transducer system for vibration and position monitoring |
FAQ
FAQ
Q1: What is the Bently Nevada 330180‑X1‑00 used for?
A1: It is a proximitor sensor module that conditions raw signals from eddy‑current proximity probes and provides an analog output for monitoring shaft vibration and displacement.
Q2: What does the internal reference 145004‑128 indicate?
A2: It is the manufacturer’s specific configuration or modification code for this version of the proximitor sensor.
Q3: Which proximity probes are compatible with this sensor?
A3: This proximitor works with both 5 mm and 8 mm diameter probes from the Bently Nevada 3300 and 3300 XL series.
Q4: What type of output signal does it provide?
A4: It outputs a 4‑20 mA analog signal proportional to the measured gap/displacement of the connected proximity probe.
Q5: What power supply is required for this proximitor?
A5: It typically operates from a 24 V DC supply with consumption up to about 15 mA.
Q6: What is the typical operating temperature range?
A6: It is designed to operate reliably across an industrial temperature range from approximately −40 °C to +85 °C.
Q7: What are the physical dimensions and weight of this sensor?
A7: The proximitor module is approximately 78 mm × 60 mm × 63 mm in size and weighs about 0.24 kg.
Q8: Where is this proximitor typically installed?
A8: It is typically installed on a panel or DIN rail inside a control or monitoring cabinet as part of a machinery protection or condition monitoring system.
