Technical Specifications
| Parameter | Description |
|---|---|

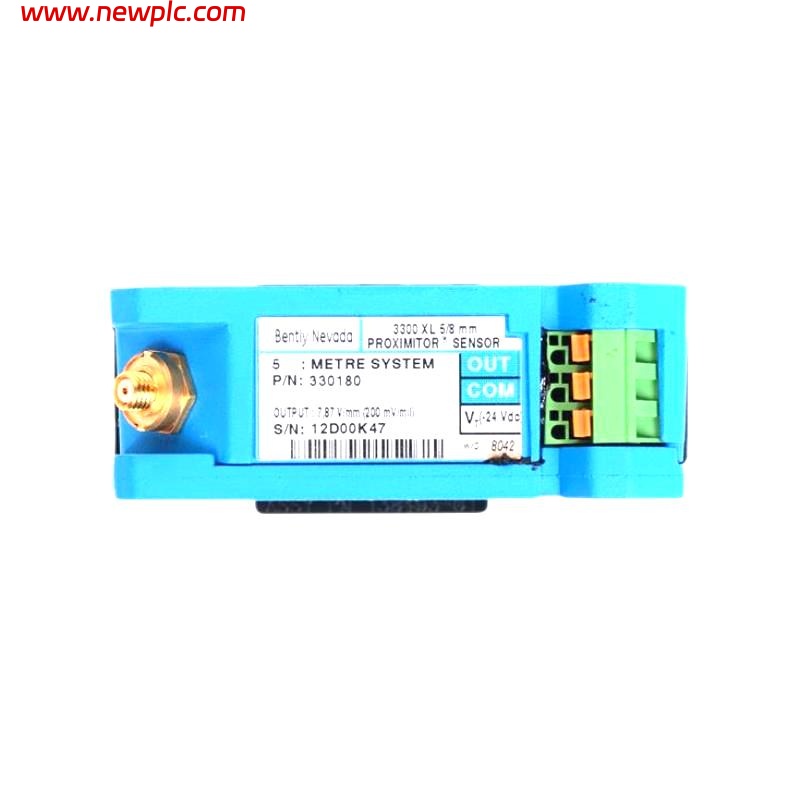

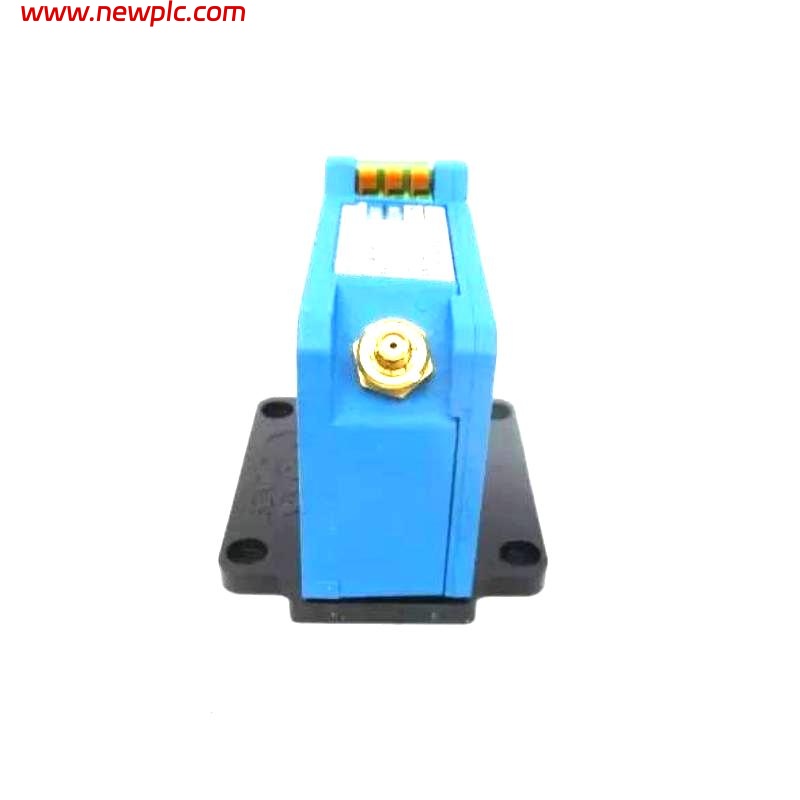

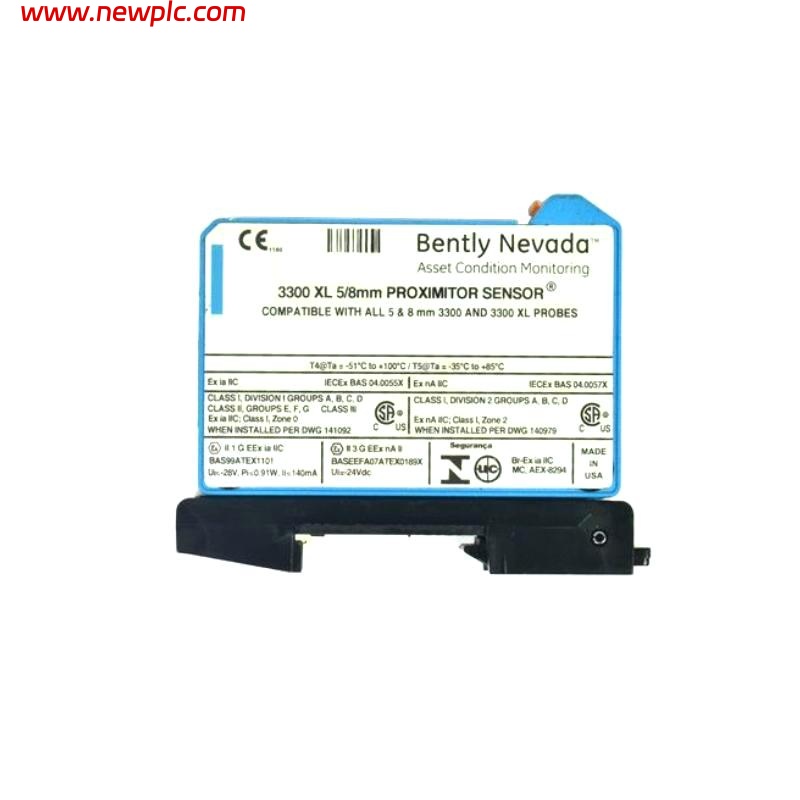

| Manufacturer | Bently Nevada 330180‑X1‑00 Proximitor Sensor |
| Product Model | 330180‑X1‑00 |
| Internal Reference | 145004‑95 |
| Product Type | 3300 XL Series Proximitor Sensor |
| Measurement Principle | Non‑contact eddy‑current conditioning for displacement and vibration |
| Compatible Probes | 3300 and 3300 XL proximity probes (5 mm and 8 mm) |
| Output Signal | 4‑20 mA analog (typical proximitor output format for X1 variants) |
| Power Supply Requirement | 24 V DC nominal |
| Supply Current | ~10–15 mA typical |
| Output Impedance | ~50 Ω |
| Frequency Response | DC to ~10 kHz |
| Operating Temperature Range | −40 °C to +85 °C |
| Connector Type | Standard proximitor electrical interface |
| Mounting Method | Panel mount or DIN‑rail mount (configurable) |
| Housing Material | Industrial‑grade enclosure |
| Dimensions | Approx. 78 mm × 60 mm × 63 mm (typical proximity sensor module size) |
| Weight | ~0.24 kg |
| Operating Environment | Industrial rotating machinery monitoring |
| System Compatibility | Part of 3300 XL transducer system |
FAQ
FAQ
Q1: What is the Bently Nevada 330180‑X1‑00 (145004‑95) used for?
A1: It is a proximitor sensor module used to condition raw signals from eddy‑current proximity probes into a standardized analog output for vibration and shaft displacement monitoring.
Q2: What does the internal reference 145004‑95 indicate?
A2: It is a manufacturer internal configuration and calibration identifier for this specific proximitor variant.
Q3: Which proximity probes are compatible with this sensor?
A3: It supports both 5 mm and 8 mm diameter proximity probes from the Bently Nevada 3300 and 3300 XL Series.
Q4: What type of output signal does this proximitor provide?
A4: It provides a 4‑20 mA analog signal proportional to the measured gap/displacement.
Q5: What power supply does this sensor require?
A5: It typically operates on a 24 V DC nominal supply.
Q6: What temperature range can this sensor operate in?
A6: It is designed to operate reliably in environments from approximately −40 °C to +85 °C.
Q7: Is additional equipment required to use this proximitor?
A7: Yes — compatible proximity probes, extension cables (if needed), and monitoring or data acquisition electronics are required for a complete measurement system.
Q8: Where is this proximitor sensor typically installed?
A8: It is usually mounted on a panel or DIN rail inside a control cabinet as part of a machinery protection or condition monitoring system.
