Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330180-X1-05 / Part No. 143416-60 |

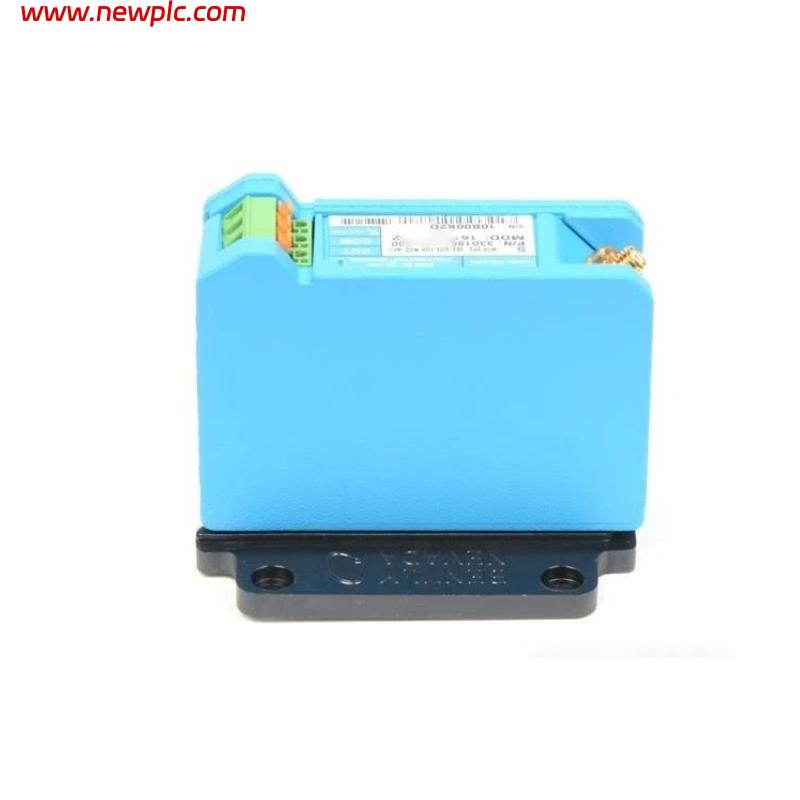

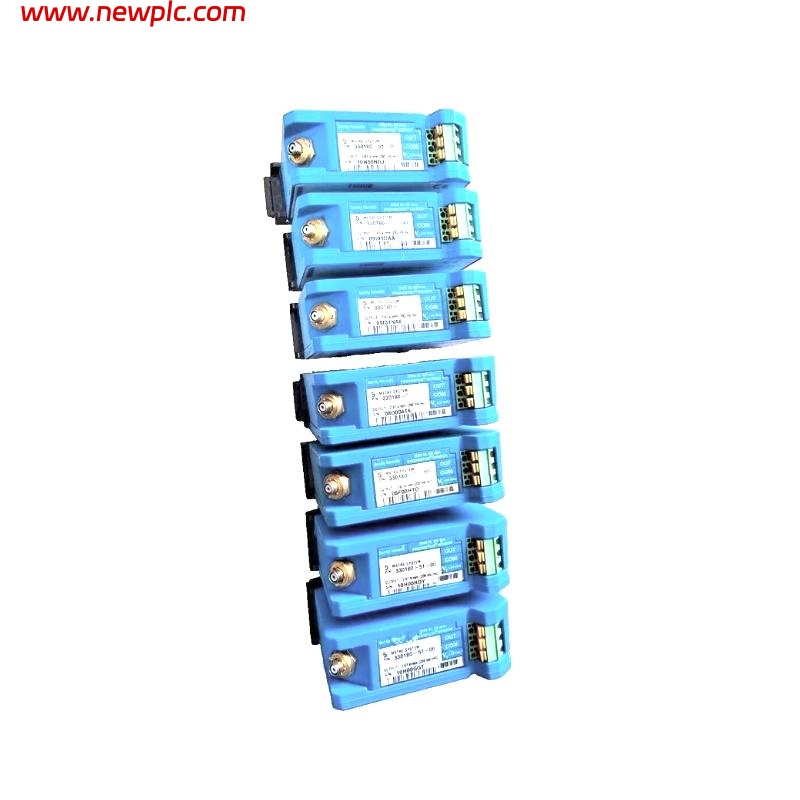

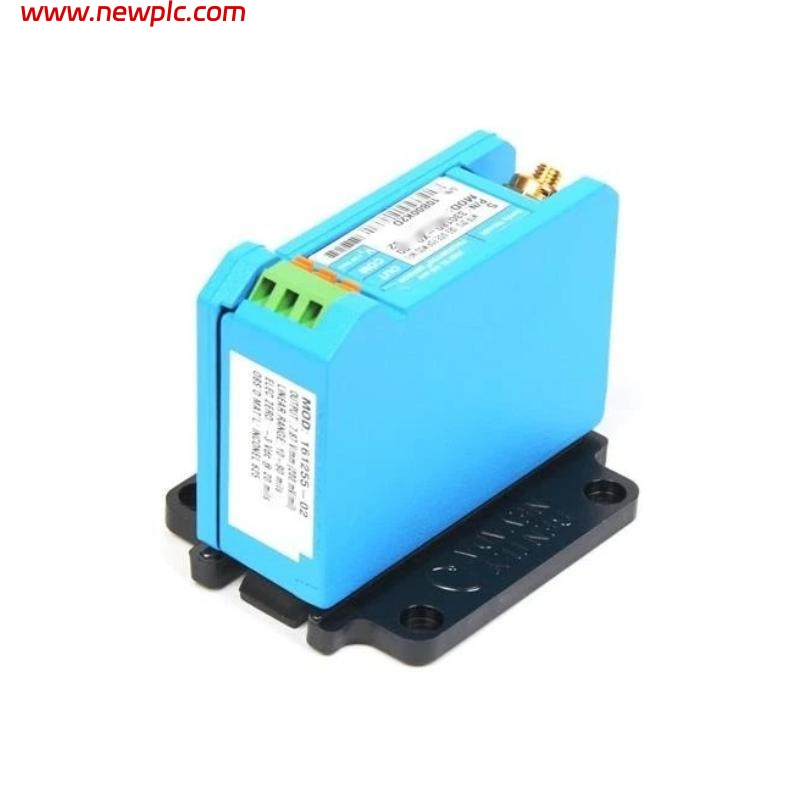

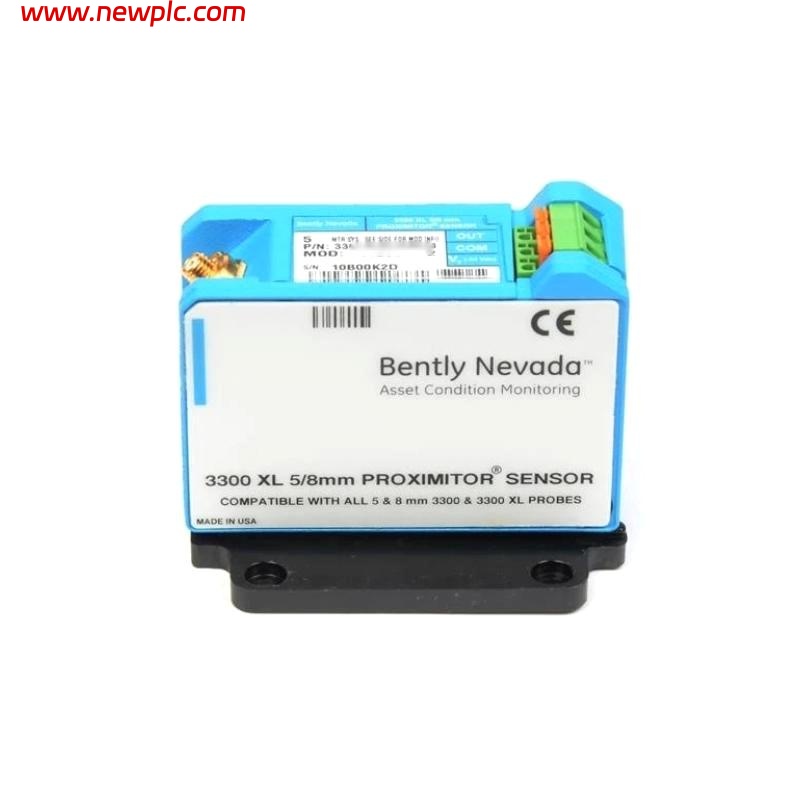

| Type | 3300 XL Proximitor Sensor (for 8 mm probe system) |
| Measurement Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±5% to ±6.5% |
| Power Supply | -17.5 Vdc to -26 Vdc |
| Power Consumption | 12 mA typical |
| Output Resistance | 50 Ω |
| Frequency Response | 0–10 kHz, +0, -3 dB |
| Operating Temperature | -52°C to +100°C |
| Storage Temperature | -52°C to +105°C |
| Humidity Resistance | ≤ 3% change in ASF at 93% RH for 56 days (IEC 68-2-3) |
| Case Material | Aluminum (A308) |
| Connector Material | Gold-plated brass or beryllium copper |
| Mounting | DIN rail or panel mount (interchangeable) |
| Electrical Isolation | Yes (mounting base provides isolation) |
| RFI/EMI Immunity | High (meets CE mark without special shielding) |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| Weight | 0.246 kg |
| Certification | SIL 2 / SIL 3, CE, ATEX, CSA, IECEx, RoHS, FCC, Maritime |
FAQ
FAQ
Q1: What does the 330180-X1-05 Proximitor Sensor do?
A1: It converts the signal from a non-contact eddy current probe into a voltage output proportional to the distance between the probe tip and the target surface.
Q2: What probe types are compatible with this Proximitor Sensor?
A2: It is compatible with 3300 XL 8 mm and legacy 3300 5 mm probes and extension cables.
Q3: Can it be used in high EMI/RFI environments?
A3: Yes, the sensor is designed with high RFI/EMI immunity and meets CE requirements without additional shielding.
Q4: What is the recommended power supply range?
A4: The sensor requires -17.5 Vdc to -26 Vdc. With barriers, it should be operated between -23 Vdc and -26 Vdc.
Q5: Is the sensor suitable for hazardous area installations?
A5: Yes, it has certifications for Class I Zone 0/1/2 and Division 1/2, including ATEX, IECEx, and CSA approvals.
Q6: Can it be DIN rail mounted?
A6: Yes, the sensor supports both DIN rail and traditional 4-hole panel mounting configurations.
Q7: Is there electrical isolation between the sensor and mounting surface?
A7: Yes, the sensor base provides electrical isolation, removing the need for additional isolator plates.
Q8: What are the environmental limits for operating and storing the sensor?
A8: Operating temperature is -52°C to +100°C, and storage temperature is -52°C to +105°C.
