Technical Specifications
| Item | Description |
|---|---|

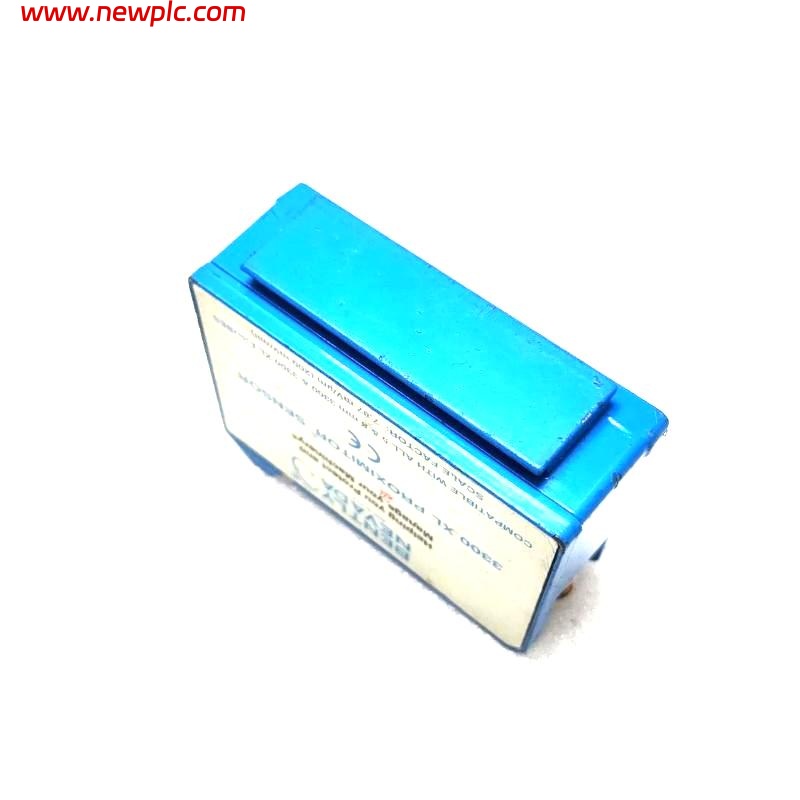

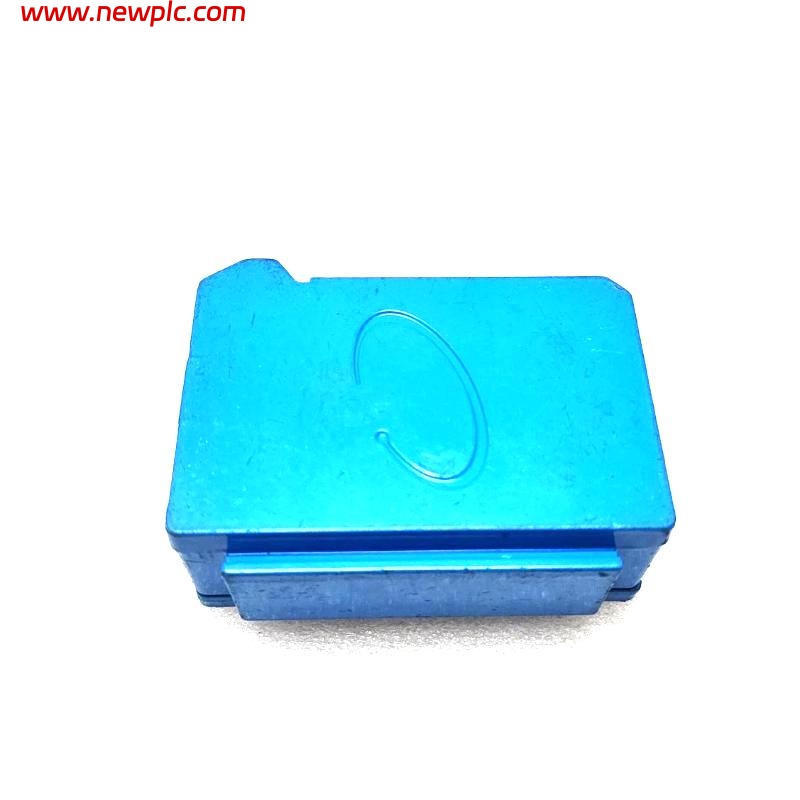

| Model | Bently Nevada 330180-X1-05 145004-67 3300 XL Proximitor Sensor |
| System Composition | Includes 3300 XL probe, extension cable, Proximitor sensor |
| Power Requirements | -17.5 Vdc to -26 Vdc, max 12 mA current |
| Input | Accepts 3300 XL 8 mm probe and extension cable |
| Output Impedance | 50 Ω |
| Linear Range | 2 mm (80 mils), from 0.25 mm to 2.3 mm |
| Recommended Gap Setting | -9 Vdc (approx. 1.27 mm or 50 mils) |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil), ±5% (5 m) or ±6.5% (9 m) |
| Frequency Response | 0 to 10 kHz, +0/-3 dB (up to 305 m field wiring) |
| Temperature Range (Probe) | Standard: -52°C to +177°C; ETR: tip up to +218°C, cable up to +260°C |
| Temperature Range (Sensor) | Operating: -52°C to +100°C; Storage: -52°C to +105°C |
| Min Target Size | ≥15.2 mm diameter (flat surface) |
| Shaft Diameter | Minimum 50.8 mm, recommended ≥76.2 mm |
| Min Cable Bend Radius | 25.4 mm (1 in) |
| Mounting Options | Panel mount or DIN rail mount |
| Sensor Housing Material | Aluminum A308 |
| Connector Material | Gold-plated brass or gold-plated beryllium copper |
| Dimensions | 81.3 mm x 35.1 mm x 63.5 mm |
| Weight | 0.246 kg (Proximitor Sensor unit) |
| Certifications | Complies with FCC Part 15, CE, RoHS, SIL2/3, ATEX, IECEx, etc. |
FAQ
FAQ
Q1: Is the 330180-X1-05 sensor compatible with non-XL probes?
A1: Yes, 3300 XL components are electrically and physically compatible with 3300 non-XL 5 mm and 8 mm components.
Q2: What is the maximum field wiring length supported?
A2: Up to 305 meters (1000 feet), but high-frequency signal roll-off must be considered.
Q3: Does the sensor meet API 670 requirements?
A3: Yes, it fully complies with API 670 standards for mechanical configuration, linear range, accuracy, and temperature stability.
Q4: Is it suitable for high-temperature environments?
A4: Yes. Standard probes support up to +177°C; ETR versions support up to +218°C for the tip and +260°C for the cable.
Q5: What shaft diameter is recommended to minimize cross-talk?
A5: Minimum is 50.8 mm; recommended is 76.2 mm or greater to maintain cross-talk below 50 mV.
Q6: What is the power supply range for the Proximitor Sensor?
A6: -17.5 Vdc to -26 Vdc for non-intrinsically safe use, -23 Vdc to -26 Vdc for use with barriers.
Q7: Is field calibration or matching required?
A7: No. All 3300 XL components are factory-calibrated and fully interchangeable.
Q8: Are shielded conduits necessary for installation?
A8: No. The improved RFI/EMI immunity meets CE requirements without the need for shielded conduit or metal housings.
