Technical Specifications
| Parameter | Specification |
|---|---|

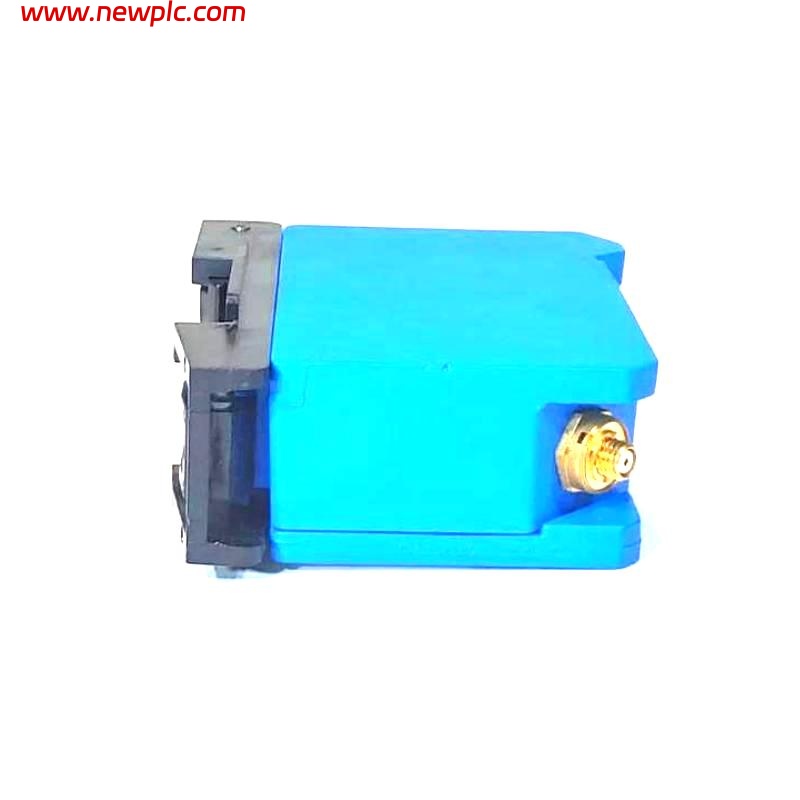

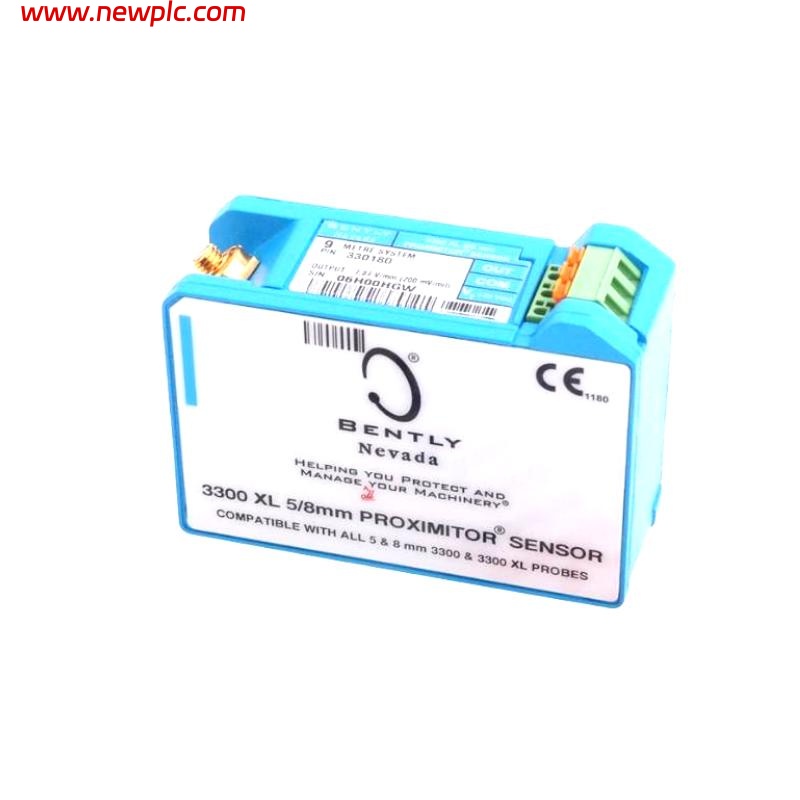

| Model | Bently Nevada 330180-X1-05 145004-81 3300 XL Proximitor Sensor |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ± 5% (5 m system), ± 6.5% (9 m system) |
| Power Supply | -17.5 Vdc to -26 Vdc |
| Output Resistance | 50 Ω |
| Frequency Response | 0 to 10 kHz, +0, -3 dB |
| Recommended Gap Voltage | -9 Vdc (approx. 1.27 mm or 50 mils) |
| Minimum Target Size | 15.2 mm diameter (0.6 in) |
| Minimum Shaft Diameter | 50.8 mm (recommended minimum 76.2 mm) |
| Sensor Operating Temp | -52°C to +100°C |
| Sensor Storage Temp | -52°C to +105°C |
| Probe Operating Temp | Standard: -52°C to +177°C ETR: -52°C to +218°C (tip), up to +260°C (cable) |
| Extension Cable Temp Range | Standard: -52°C to +177°C ETR: -52°C to +260°C |
| Probe Material | Probe Tip: PPS Case: AISI 303 or 304 SST |
| Connector Type | Gold-plated ClickLoc |
| Environmental Sealing | Viton® O-ring (probe), connector protectors recommended |
| System Length Options | 1 m, 5 m, or 9 m |
| Field Wiring Length | Up to 305 m (1000 feet) |
| Dimensions (Sensor Body) | 81.3 mm x 35.1 mm x 63.5 mm |
| Weight (Sensor Body) | 0.246 kg (8.67 oz) |
| Certifications | SIL 2/SIL 3, FCC, CE, RoHS, ATEX, IECEx, cNRTLus, Maritime, Functional Safety |
FAQ
FAQ
Q1: What is the maximum extension cable length supported?
A1: The system supports up to 9 meters in total length including the probe and extension cable.
Q2: What type of output does the Proximitor Sensor provide?
A2: It provides a voltage output directly proportional to the distance between the probe tip and the target surface.
Q3: Can it be used with non-XL 3300 series components?
A3: Yes, but overall system performance will be limited to the specifications of the non-XL components.
Q4: What shaft diameters are suitable for this sensor?
A4: Minimum shaft diameter is 50.8 mm; 76.2 mm or greater is recommended to avoid cross-talk.
Q5: What certifications does the sensor carry?
A5: Certified for SIL 2 / SIL 3, FCC, CE, RoHS, ATEX, IECEx, cNRTLus, and maritime applications.
Q6: Are special tools required for installation?
A6: No special tools are required; the ClickLoc connectors are finger-tightened.
Q7: What is the operating temperature range?
A7: The sensor operates from -52°C to +100°C; ETR probes up to +218°C, and extension cables up to +260°C.
Q8: Does the system require periodic calibration?
A8: No. All 3300 XL systems are factory calibrated and fully interchangeable without on-site calibration.
