Technical Specifications
| Parameter | Description |
|---|---|

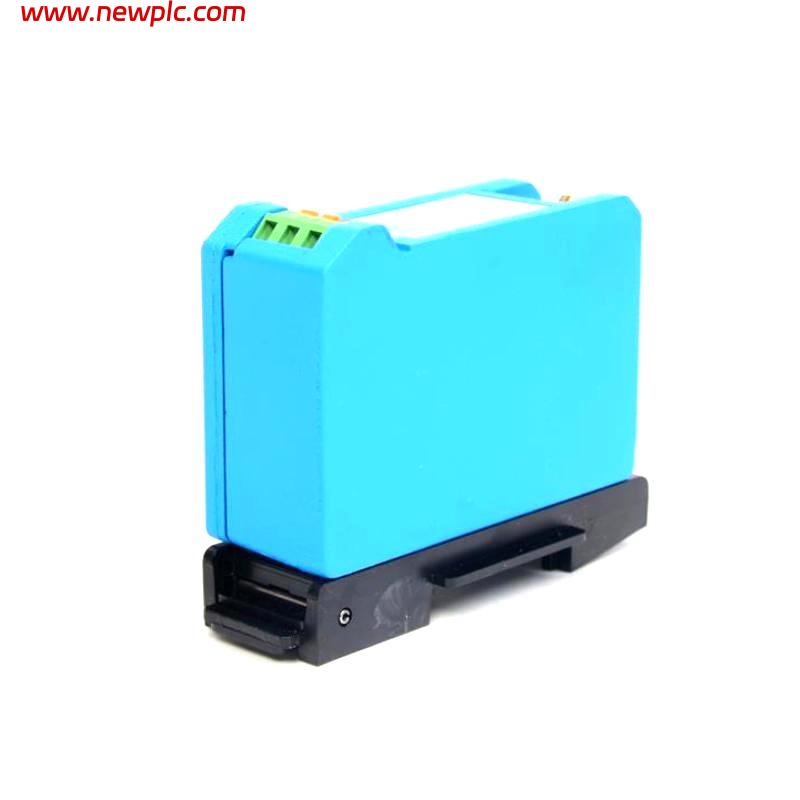

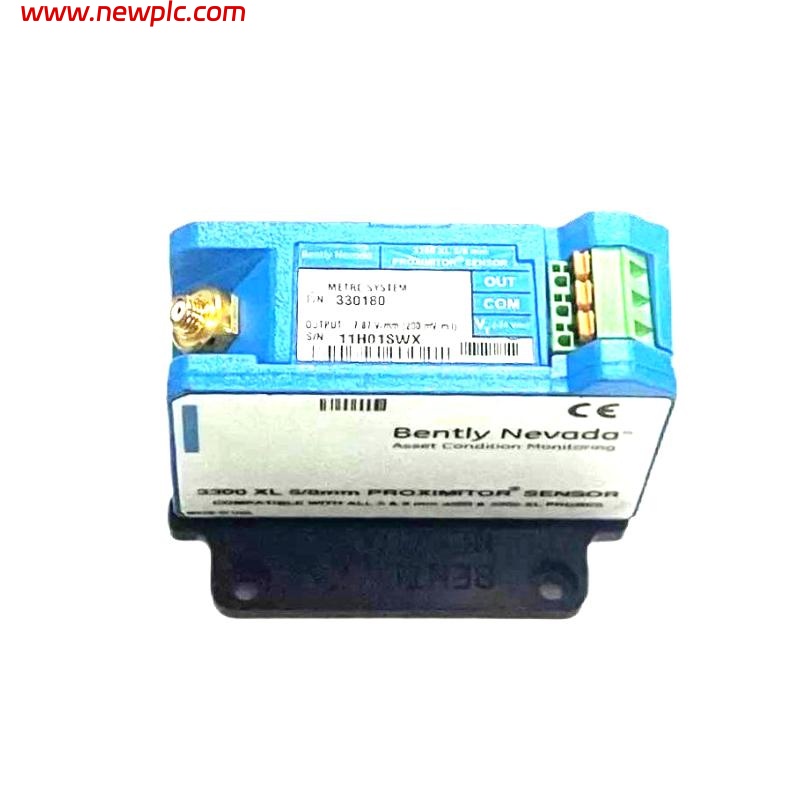

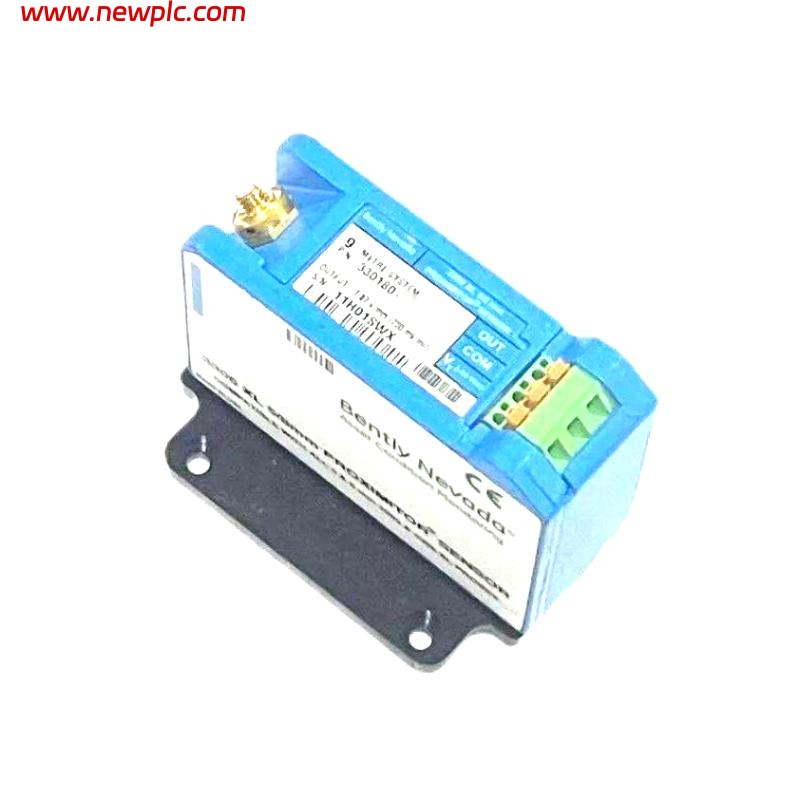

| Product Name | Bently Nevada 3300 XL Proximitor Sensor |
| Model | 330180-X1-05 (5-meter system, DIN mount) |
| Compatible Probe | 3300 XL 8 mm and 3300 Series 5 mm probes |
| Input Voltage | -17.5 Vdc to -26 Vdc |
| Max Current | 12 mA |
| Output Resistance | 50 Ω |
| Recommended Gap Voltage | -9 Vdc (≈ 1.27 mm gap) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (±5% error) |
| Frequency Response | 0 – 10 kHz (+0/-3 dB) |
| Cable Type | FEP insulated triaxial (standard) or PFA (ETR) |
| Terminal Strip | SpringLoc (tool-free connection) |
| Connector Type | Gold-plated ClickLoc connector |
| Probe Materials | PPS tip, SST casing |
| Sensor Housing | Aluminum A308 |
| Mounting Options | DIN rail or panel mount |
| Operating Temp (Sensor) | -52°C to +100°C |
| Storage Temp (Sensor) | -52°C to +105°C |
| Probe Temp Range | Standard: -52°C to +177°C; ETR: up to +218°C |
| Extension Cable Temp | Standard: -52°C to +177°C; ETR: up to +260°C |
| Humidity Resistance | <3% change in ASF under 93% RH |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| Weight | 0.246 kg |
FAQ
FAQ
Q1: Is the 330180-X1-05 compatible with older Proximitor Sensors?
A1: Yes, it is physically and electrically compatible with non-XL 3300 5 mm and 8 mm systems.
Q2: What cable lengths are supported by this sensor model?
A2: It supports 1, 5, and 9 meter system lengths depending on the probe and extension cable.
Q3: Can it be used for Keyphasor and speed measurements?
A3: Yes. It supports Keyphasor reference and speed monitoring for high-speed rotating machines.
Q4: Are special tools required to connect the terminal strip?
A4: No. The SpringLoc terminal allows quick tool-free wiring, enhancing field installation speed.
Q5: Does this sensor have protection against electromagnetic interference?
A5: Yes, it features improved RFI/EMI immunity, complying with CE requirements.
Q6: Is the device suitable for use in high-humidity environments?
A6: Yes. It was tested at 93% relative humidity, with <3% change in scale factor.
Q7: Can different probe and cable models be mixed in one system?
A7: Not recommended. Mixing standard and ETR or different series may degrade measurement accuracy.
Q8: What are the sensor dimensions and is it suitable for panel mounting?
A8: The sensor size is 81.3 x 35.1 x 63.5 mm, making it ideal for panel or DIN rail installation.
