Technical Specifications
| Category | Specification Details |
|---|---|

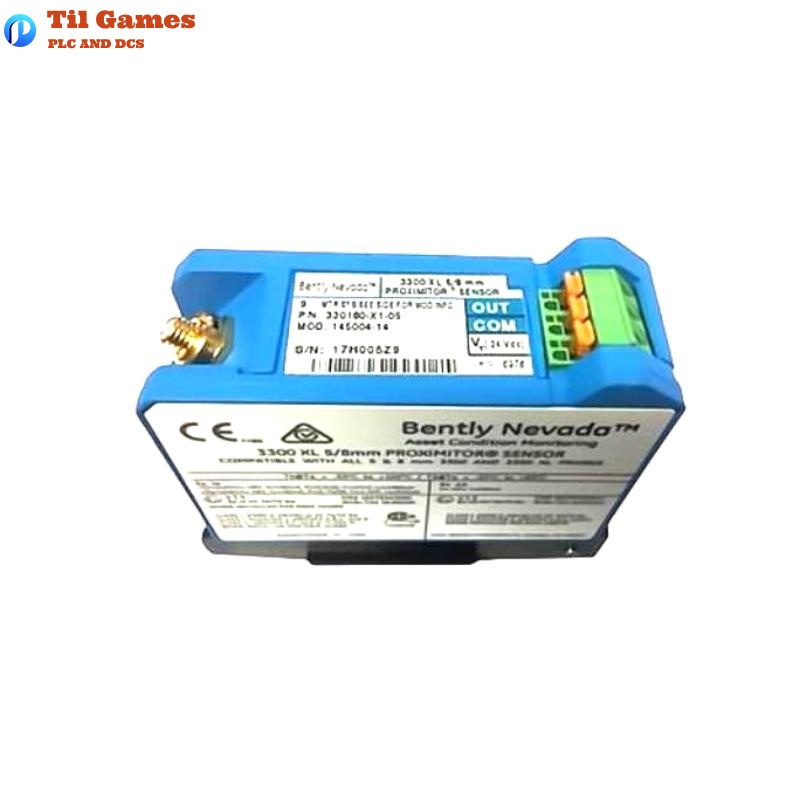

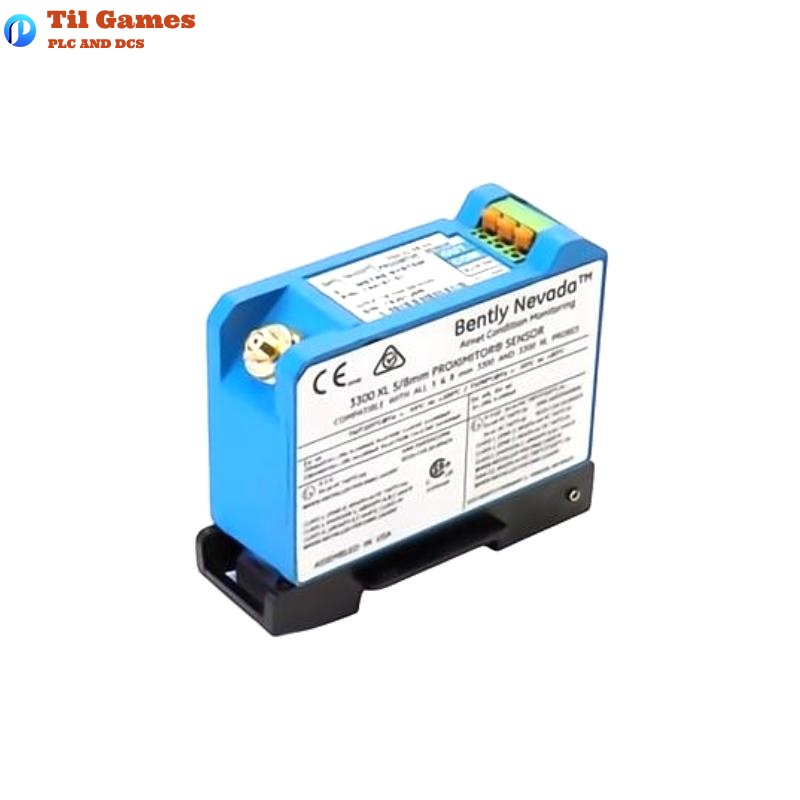

| Model | Bently Nevada 330180-X1-CN 3300 XL Proximitor Sensor |
| Input Compatibility | Accepts 3300 XL 8 mm and 3300 series 5 mm proximity probe and extension cable |
| Power Requirements | -17.5 Vdc to -26 Vdc, max current 12 mA |
| Output Resistance | 50 Ω |
| Recommended Gap | -9 Vdc (approx. 1.27 mm / 50 mils) |
| Linear Range | 2 mm (80 mils), from approx. 0.25 mm to 2.3 mm (–1 Vdc to –17 Vdc) |
| ISF | 7.87 V/mm (200 mV/mil) ±5% (5m) / ±6.5% (9m) |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) with up to 305 m of field wiring |
| Shaft Diameter | Min: 50.8 mm (2 in); Recommended: 76.2 mm (3 in) |
| Min Target Size | 15.2 mm (0.6 in) diameter |
| Operating Temp | -52°C to +100°C |
| Storage Temp | -52°C to +105°C |
| Humidity Resistance | <3% ASF variation at 93% humidity (IEC 68-2-3 up to 56 days) |
| EMI/RFI Protection | CE compliant without special shielding or enclosures |
| Mounting Options | DIN rail or traditional panel mount with standard 4-hole footprint |
| Construction | Sensor housing: aluminum; connectors: gold-plated brass or beryllium copper |
| Dimensions | 81.3 x 35.1 x 58.4 mm |
| Weight | 0.246 kg (8.67 oz) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What probes and cables are compatible with the 330180-X1-CN sensor?
A1: It is compatible with 3300 XL 8 mm and legacy 3300 5 mm probes and extension cables.
Q2: Is it certified for use in hazardous areas?
A2: Yes. It is certified for ATEX, IECEx, CSA standards and suitable for Zone 0/1/2 applications.
Q3: Does the sensor comply with API 670 requirements?
A3: Yes, it fully meets API 670 mechanical configuration, linearity, accuracy, and temperature criteria.
Q4: Are special tools required for installation?
A4: No. It uses SpringLoc terminals allowing tool-free, reliable wiring.
Q5: In what environments can it be used?
A5: It’s used in generators, compressors, turbines for vibration, position, and Keyphasor signal measurement.
Q6: Is shielding required for installation?
A6: No shielding is needed. The sensor’s RFI/EMI immunity meets CE standards without metal enclosures.
Q7: What is the recommended probe gap setting?
A7: 1.27 mm (50 mils), corresponding to approximately -9 Vdc output.
Q8: Are system components interchangeable?
A8: Yes. Probes, extension cables, and Proximitor sensors are fully interchangeable and calibration-free.
