Technical Specifications
| Category | Specification |
|---|---|

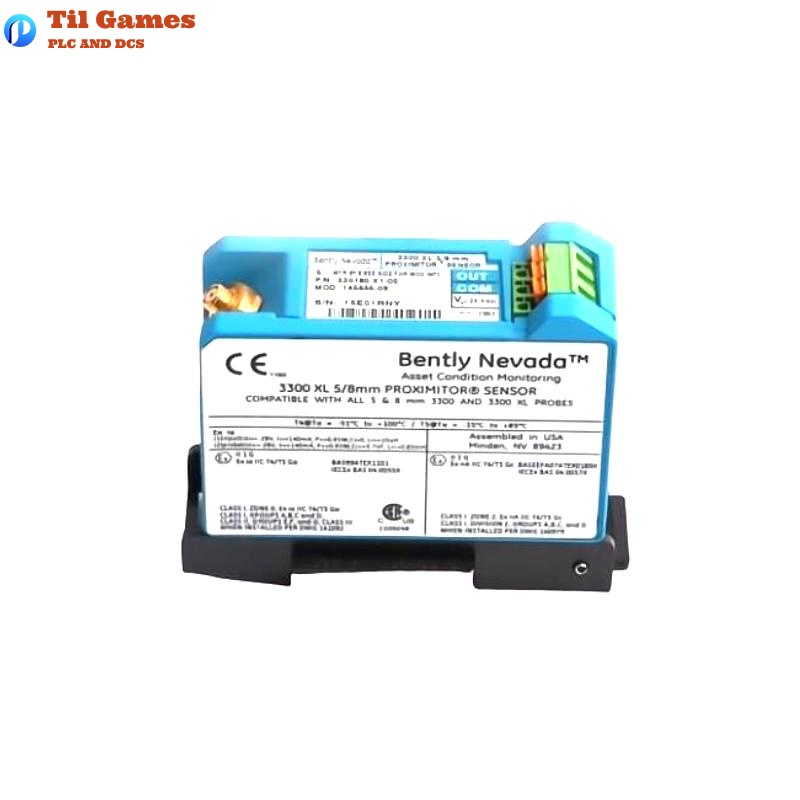

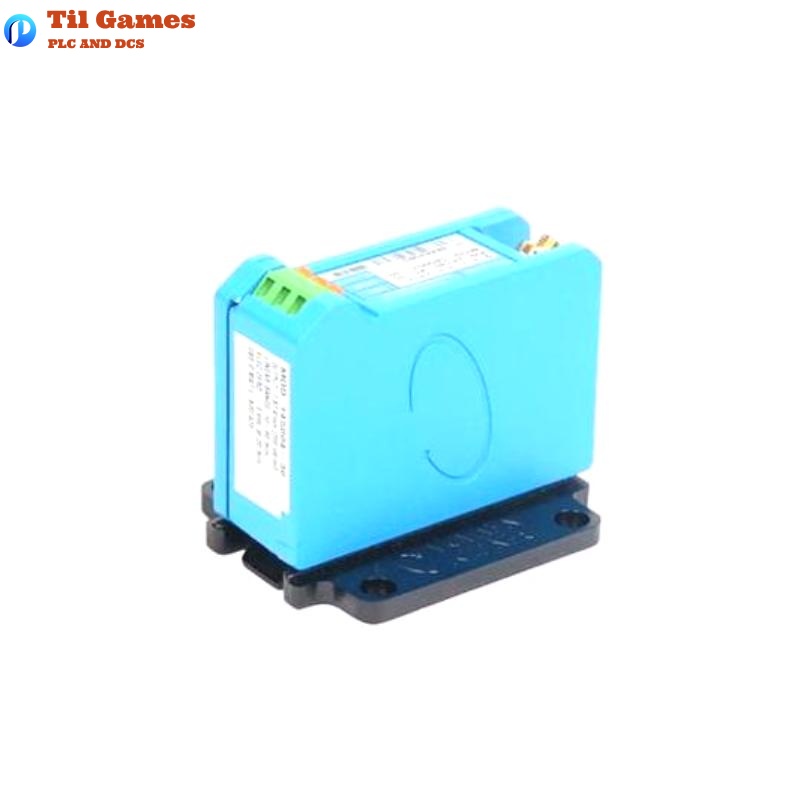

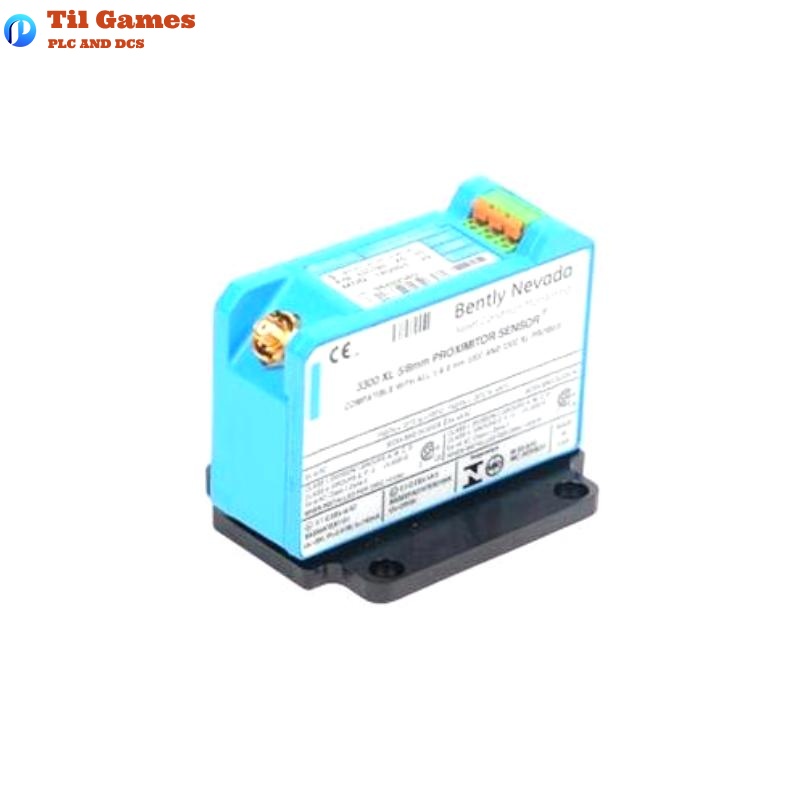

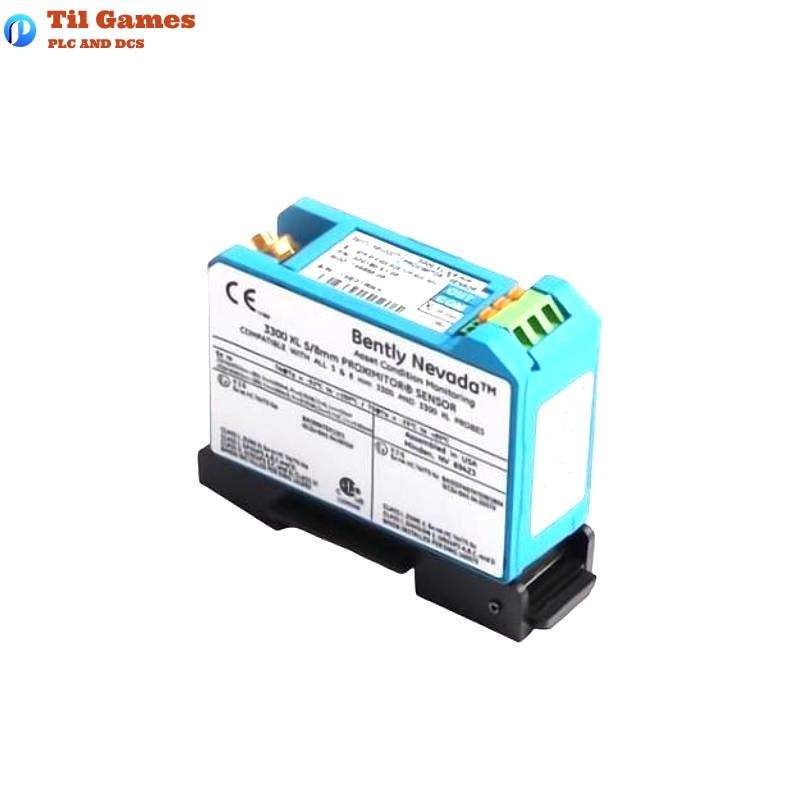

| Product Name | Bently Nevada 330180-X2-05 3300 XL Proximitor Sensor |
| Input Signal | Accepts one 3300 XL 8 mm non-contacting probe & cable |
| Power Supply | -17.5 to -26 VDC, max 12 mA |
| Output Resistance | 50 Ω |
| Recommended Gap | -9 VDC (approx. 1.27 mm / 50 mils) |
| Linear Range | 0.25 mm to 2.3 mm (10 to 90 mils) |
| Incremental Scale | 7.87 V/mm (200 mV/mil) ±5% (5m system) |
| Frequency Response | 0 to 10 kHz, +0/-3 dB |
| Operating Temp | -52°C to +100°C (sensor) |
| Storage Temp | -52°C to +105°C (sensor) |
| Dimensions (L×W×H) | 81.3 × 35.1 × 58.4 mm |
| Weight | 0.246 kg |
| Housing Material | A308 Aluminum (sensor housing) |
| Cable Bend Radius | Minimum 25.4 mm (1.0 inch) |
| Compatibility | Fully compatible with non-XL 3300 5 mm & 8 mm systems |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary application of this sensor?
A1: It is used for vibration and position measurements on fluid-film bearing machines, Keyphasor reference, and speed measurements.
Q2: Can this sensor be mixed with non-XL 3300 components?
A2: Yes, it’s compatible but performance is limited to non-XL component specs.
Q3: Do I need to calibrate each component together?
A3: No, components are fully interchangeable and factory-calibrated.
Q4: Is DIN rail mounting supported?
A4: Yes, both DIN rail and panel mounting options are available.
Q5: What power supply range is required?
A5: -17.5 to -26 VDC, or -23 to -26 VDC when using safety barriers.
Q6: What’s the minimum target size for proper detection?
A6: Minimum recommended target size is 15.2 mm diameter flat surface.
Q7: Does the sensor have RFI protection?
A7: Yes, it is highly immune to RFI/EMI and compliant with CE standards.
Q8: How strong is the probe cable connection?
A8: 330 N (75 lbf) from probe case to lead; 270 N (60 lbf) from probe to cable.
