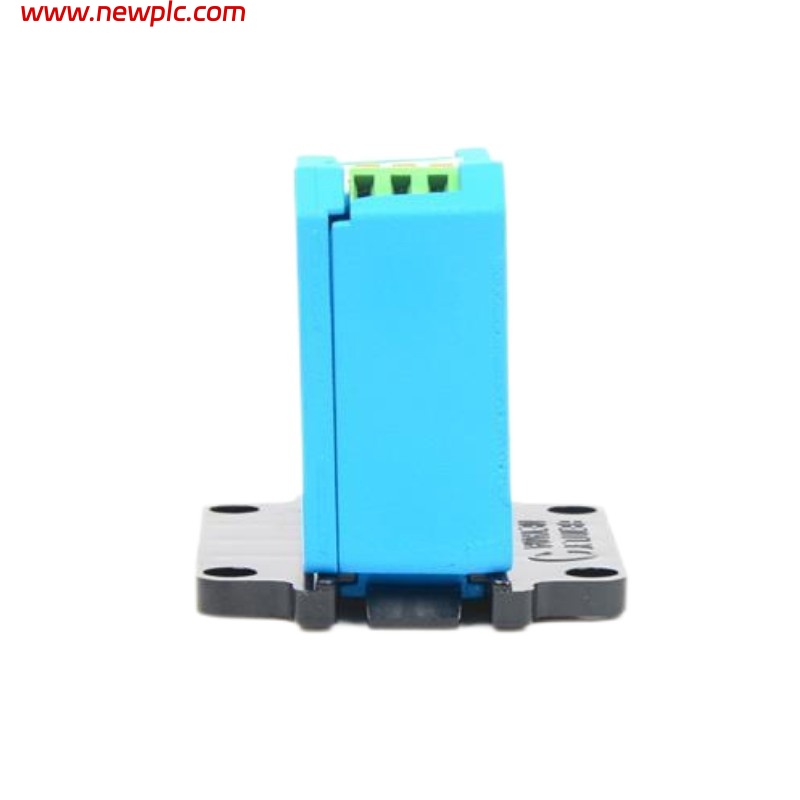

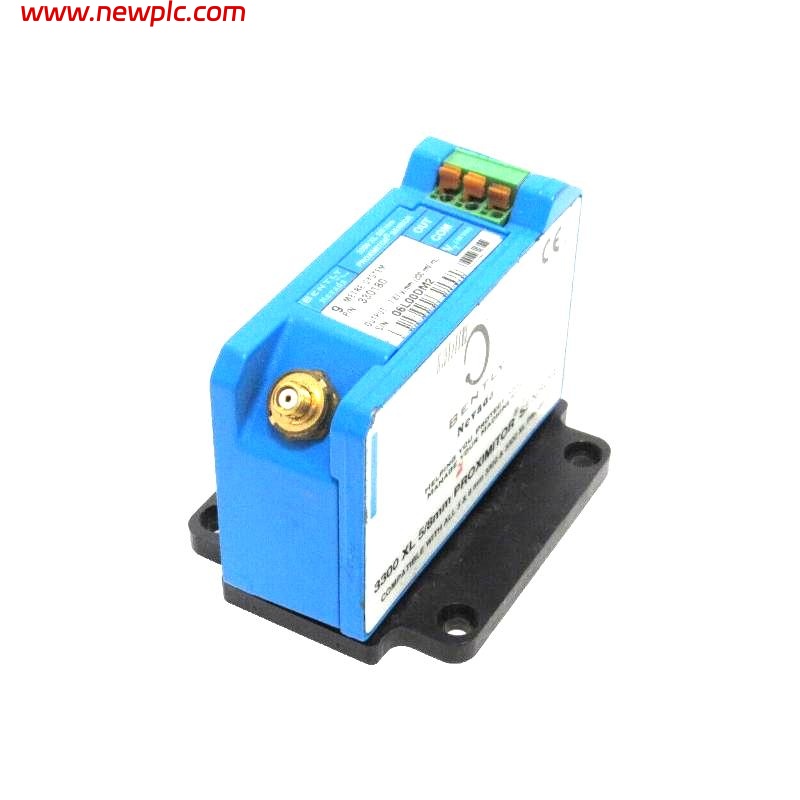

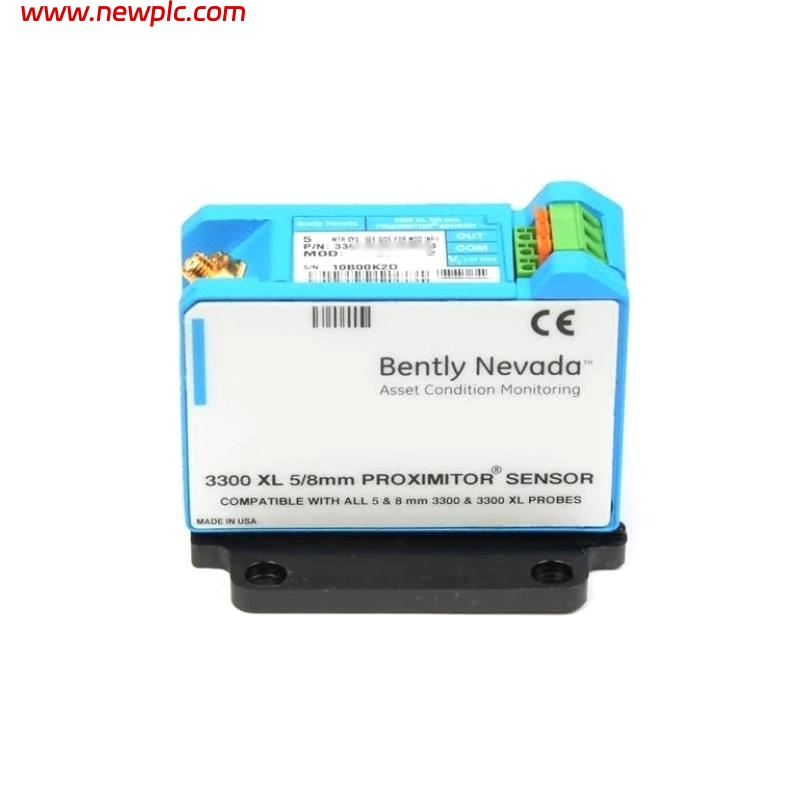

Bently Nevada 330180-X1-IN 145004-137 3300 XL Proximitor Sensor

FAQ

Q1: What are the main applications of the 330180-X1-IN Proximitor Sensor?
A1: It is primarily used for vibration and position measurements on fluid-film bearing machines, as well as Keyphasor speed and phase reference measurements.

Q2: Is it compatible with non-XL series components?
A2: Yes, it is electrically and physically compatible with non-XL 3300 series 5 mm and 8 mm components, but performance will be limited to non-XL specifications.

Q3: What is the recommended probe gap setting?
A3: The recommended gap is -9 Vdc, approximately 1.27 mm (50 mils).

Q4: Can this model operate in high-temperature environments?
A4: Yes, with the Extended Temperature Range (ETR) version, the probe can withstand up to 218°C and the cable up to 260°C.

Q5: What is the linear range of the sensor?
A5: The linear range is 2 mm (80 mils), from 0.25 mm to 2.3 mm.

Q6: What should be considered during installation?
A6: Use DIN rail or panel mounting, maintain a minimum cable bend radius of 25.4 mm, and keep adequate probe spacing to avoid cross-talk.

Q7: Does the product meet international certification requirements?
A7: Yes, it meets API 670, CE, FCC, RoHS, SIL 2/3, and ATEX/IECEx hazardous area certifications.

Q8: What is the housing material and protection capability?
A8: The housing is made of A308 aluminum with good electrical isolation and strong RFI immunity, suitable for fiberglass or metal enclosures.

145004-137 3300 XL Proximitor Sensor 330180 330180-X1-IN Bently Nevada
