Technical Specifications
| Parameter | Specification |
|---|---|

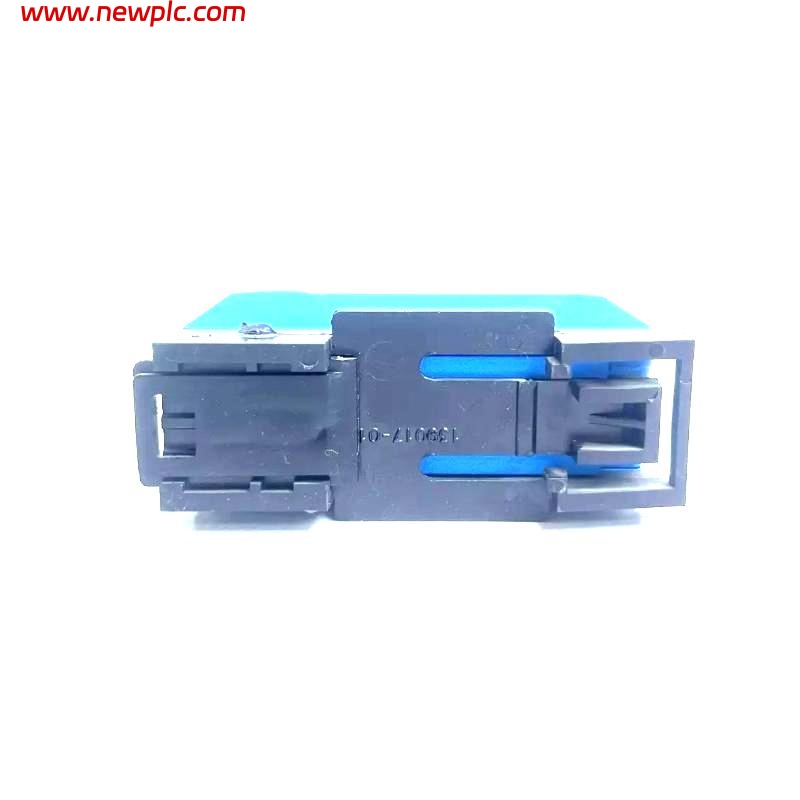

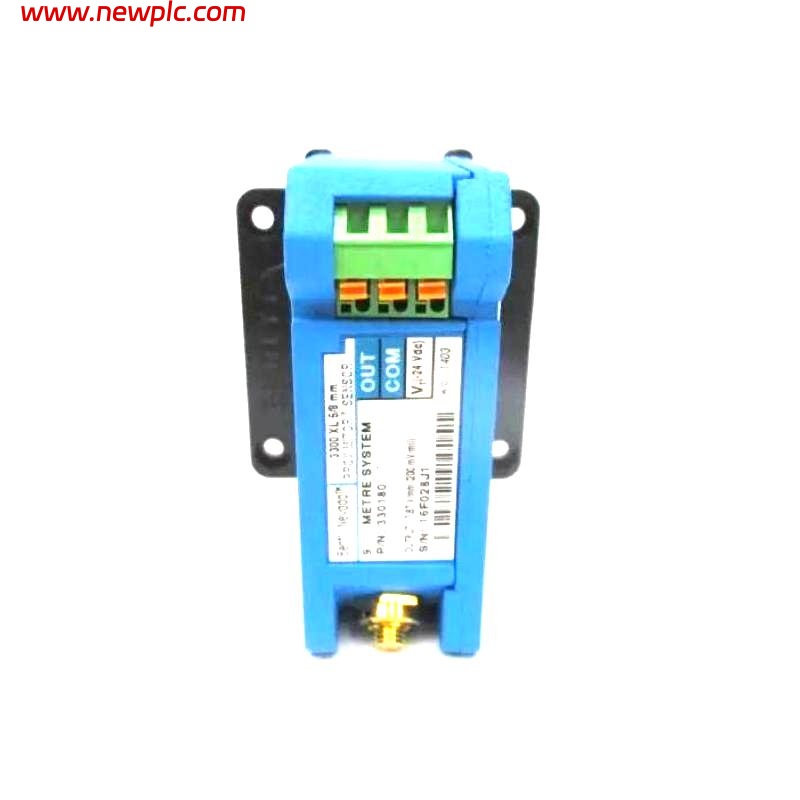

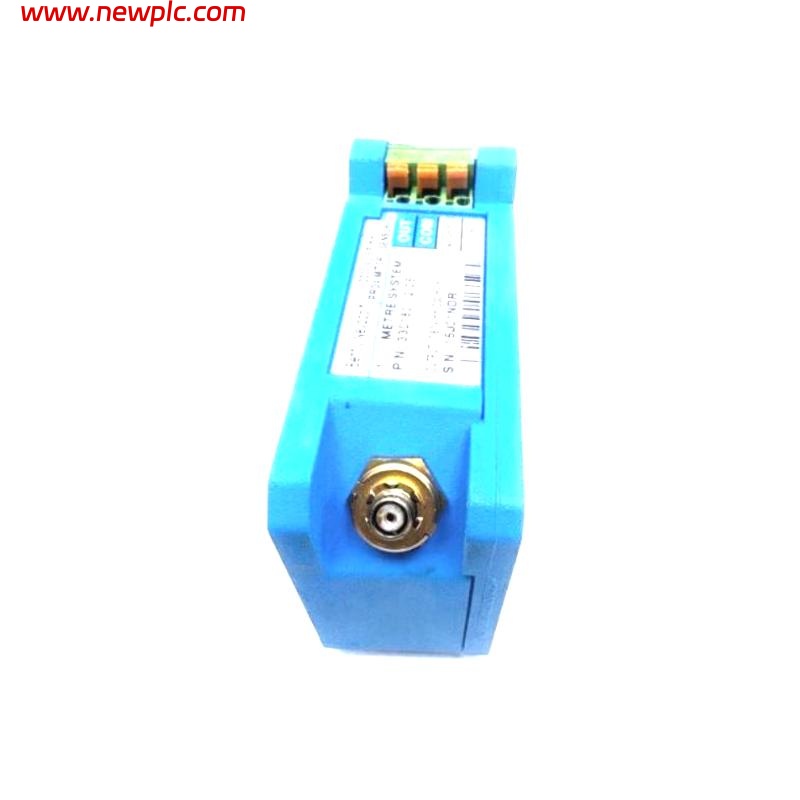

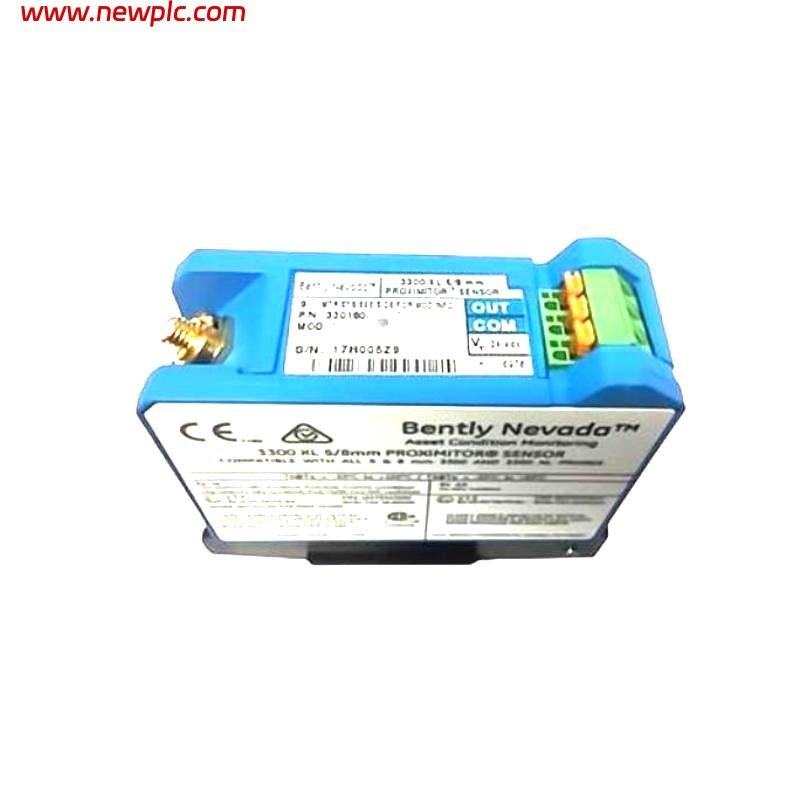

| Model | Bently Nevada 330180-X1-RU 143416-49 3300 XL Proximitor Sensor |
| System Length Options | 1 m, 5 m, 9 m (including extension cable) |
| Power Supply | -17.5 Vdc to -26 Vdc (12 mA max consumption), -23 Vdc to -26 Vdc with barriers |
| Supply Sensitivity | < 2 mV output change per volt input change |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils), from 0.25 mm to 2.3 mm gap |
| Recommended Gap Setting | -9 Vdc (approx. 1.27 mm / 50 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ± 5% (5 m or 1 m), ± 6.5% (9 m) |
| Frequency Response | 0 to 10 kHz, +0 / -3 dB (with up to 305 m field wiring) |
| Minimum Target Size | Ø 15.2 mm (0.6 in) flat target |
| Minimum Shaft Diameter | 50.8 mm (2 in), recommended ≥ 76.2 mm (3 in) |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Probe Cable | 75 Ω triaxial, FEP insulated (standard) / PFA insulated (ETR) |
| Tensile Strength | 330 N (probe case to probe lead) / 270 N (probe lead to extension cable connector) |
| Connector Type | Gold-plated ClickLoc |
| Operating Temperature | Probe: -52°C to +177°C (standard) / up to +218°C (ETR) |
| Proximitor Sensor Temp. | -52°C to +100°C operating / -52°C to +105°C storage |
| Humidity | ≤ 3% ASF change at 93% RH for 56 days |
| Compliance | API 670, CE, RoHS, SIL 2/3, ATEX, IECEx, CSA |
| Dimensions | 81.3 × 35.1 × 63.5 mm |
| Weight | 0.246 kg |
FAQ
FAQ
Q1: What is the main application of the 330180-X1-RU Proximitor Sensor?
A1: Primarily used for vibration and displacement measurements on fluid-film bearing machines, as well as Keyphasor speed measurements.
Q2: Which international standards does it comply with?
A2: Meets API 670, CE, and RoHS standards, with SIL 2/3, ATEX, IECEx, and CSA certifications.
Q3: What is the linear range?
A3: 2 mm (80 mils), with gap range from 0.25 mm to 2.3 mm.
Q4: What is the recommended installation gap?
A4: Recommended -9 Vdc, approximately 1.27 mm (50 mils).
Q5: What are the power requirements?
A5: -17.5 Vdc to -26 Vdc (max 12 mA), -23 Vdc to -26 Vdc when using safety barriers.
Q6: What is the operating temperature range?
A6: Standard probe: -52°C to +177°C, ETR probe: up to +218°C; Proximitor sensor: -52°C to +100°C.
Q7: What is the housing material?
A7: Proximitor housing is made from A308 aluminum; probe housing is made from AISI 303 or 304 stainless steel.
Q8: What are the product dimensions and weight?
A8: Dimensions are 81.3 × 35.1 × 63.5 mm, and weight is 0.246 kg.
