Technical Specifications
| Parameter | Specification |
|---|---|

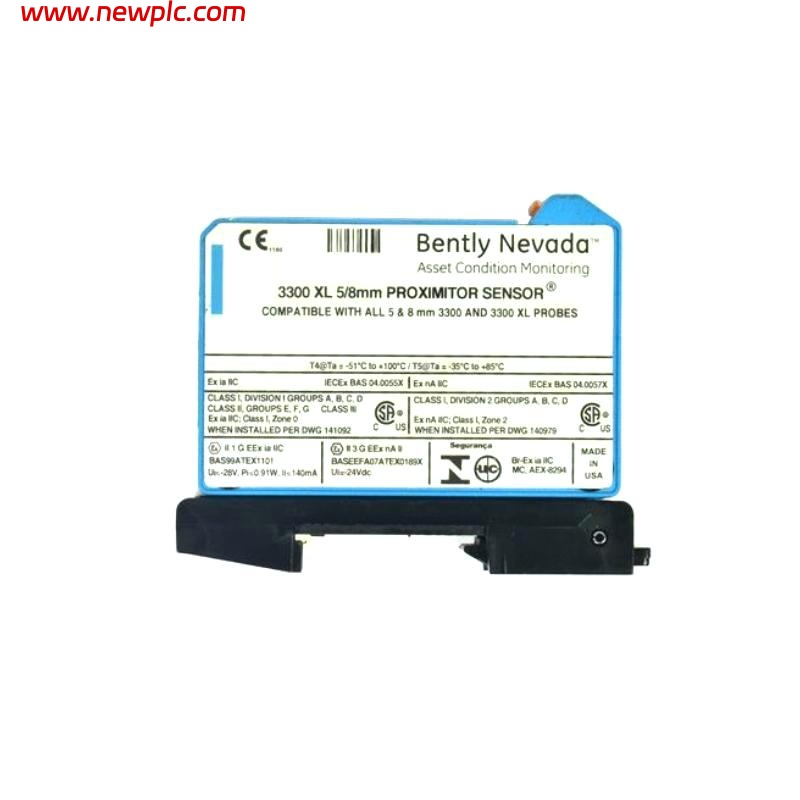

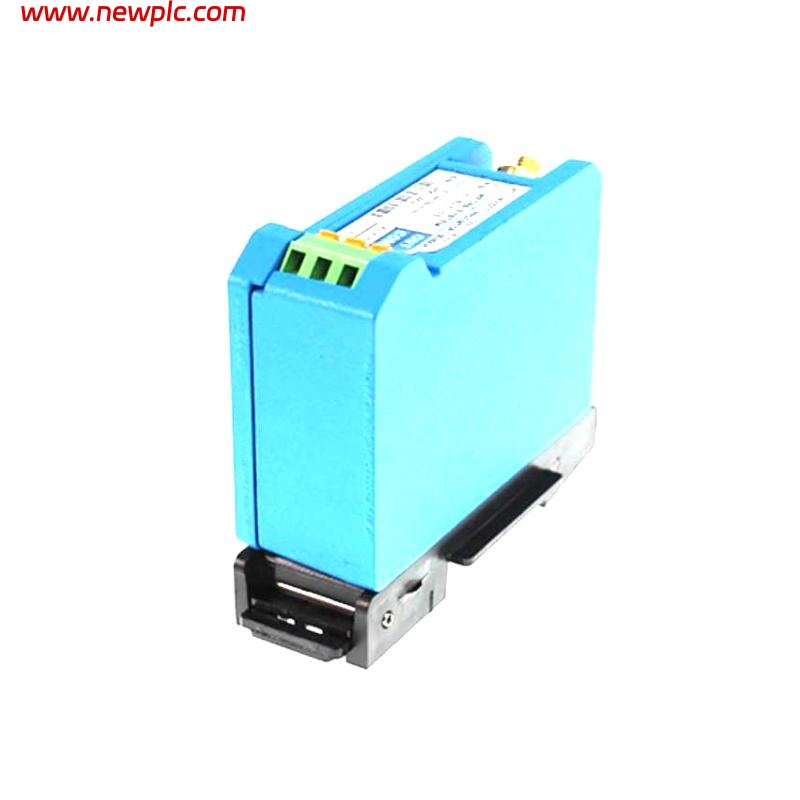

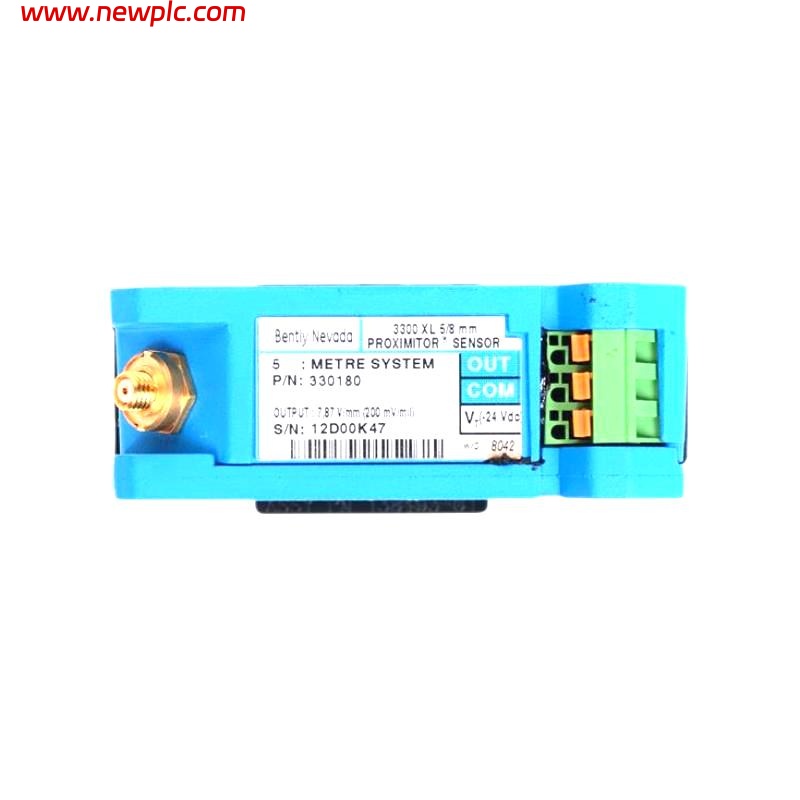

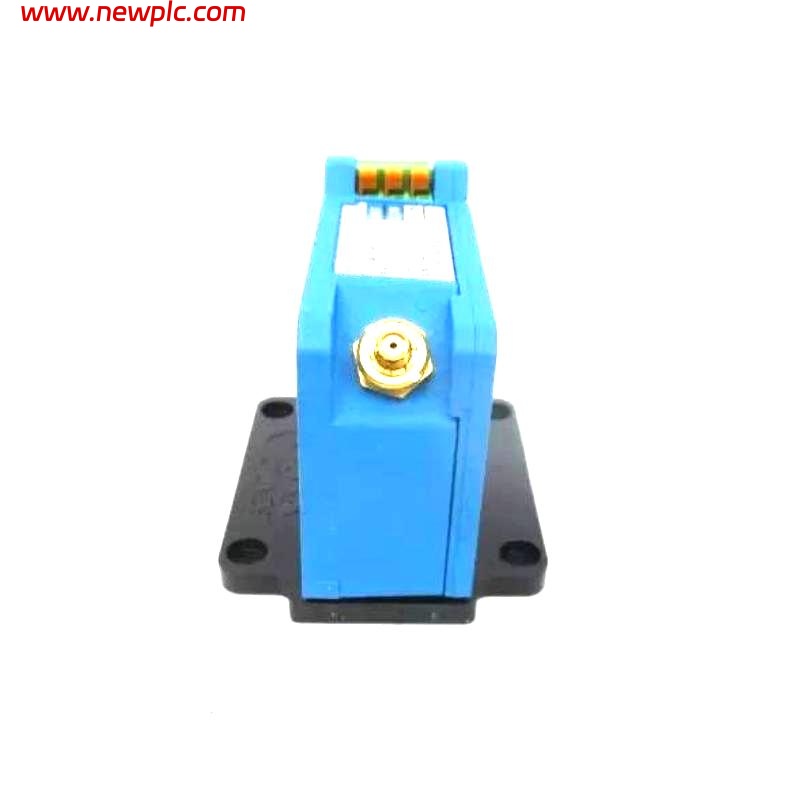

| Model | Bently Nevada 330180-X1-RU 145004-13 3300 XL Proximitor Sensor |
| System Type | 3300 XL 8 mm Proximity Transducer System |
| Compatible Probes | 3300-series 5 mm, 3300 XL 8 mm Probes with Extension Cable |
| Power Supply | -17.5 Vdc to -26 Vdc (12 mA max), -23 Vdc to -26 Vdc with barriers |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap Setting | -9 Vdc (approx. 1.27 mm / 50 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) ±5% (5 m / 1 m), ±6.5% (9 m) |
| DSL Accuracy | ±0.025 mm (1 mil) for 5 m / 1 m, ±0.038 mm (1.5 mil) for 9 m |
| Frequency Response | 0–10 kHz (+0, -3 dB) with up to 305 m field wiring |
| Minimum Target Size | 15.2 mm diameter flat target |
| Minimum Shaft Diameter | 50.8 mm (recommended ≥76.2 mm) |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | AISI 303 / 304 Stainless Steel |
| Cable Type | 75 Ω triaxial, FEP insulated (standard) / PFA insulated (ETR) |
| Connector Type | Gold-plated brass or gold-plated beryllium copper, ClickLoc design |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Storage Temperature (Sensor) | -52°C to +105°C |
| Operating Temperature (Probe) | -52°C to +177°C (Standard) / up to +218°C (ETR) |
| Operating Temperature (Cable) | -52°C to +177°C (Standard) / up to +260°C (ETR) |
| Dimensions (Sensor) | 81.3 x 35.1 x 63.5 mm |
| Weight (Sensor) | 0.246 kg |
FAQ
FAQ
Q1: Which probes are supported by this sensor?
A1: It supports Bently Nevada 3300 series 5 mm probes and 3300 XL 8 mm probes with an extension cable.
Q2: What is the recommended gap setting?
A2: The recommended gap setting is -9 Vdc, approximately 1.27 mm (50 mils).
Q3: What is the linear range of this product?
A3: The linear range is 2 mm (80 mils).
Q4: What is the minimum shaft diameter for application?
A4: The minimum applicable shaft diameter is 50.8 mm, with 76.2 mm or larger recommended for optimal performance.
Q5: What is the frequency response range?
A5: The frequency response is 0–10 kHz (+0, -3 dB) and can maintain performance with up to 305 m of field wiring.
Q6: What is the operating temperature range?
A6: The Proximitor sensor operates from -52°C to +100°C, with storage from -52°C to +105°C; the probe and cable have different ranges depending on the version.
Q7: What type of connectors does it use?
A7: It uses gold-plated brass or gold-plated beryllium copper ClickLoc connectors, which are easy to install and resistant to loosening.
Q8: Does this product meet international standards?
A8: Yes, it meets API 670 standards and has CE, RoHS, and multiple hazardous area certifications.
