Technical Specifications
| Item | Description |
|---|---|
| Model Number | 330196-05-30-10-CN |

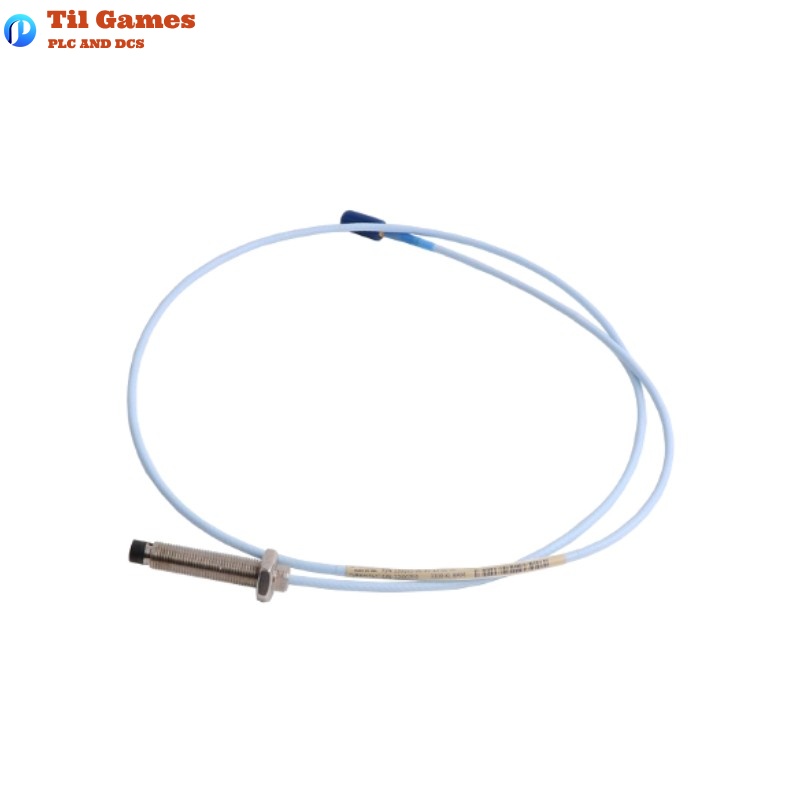

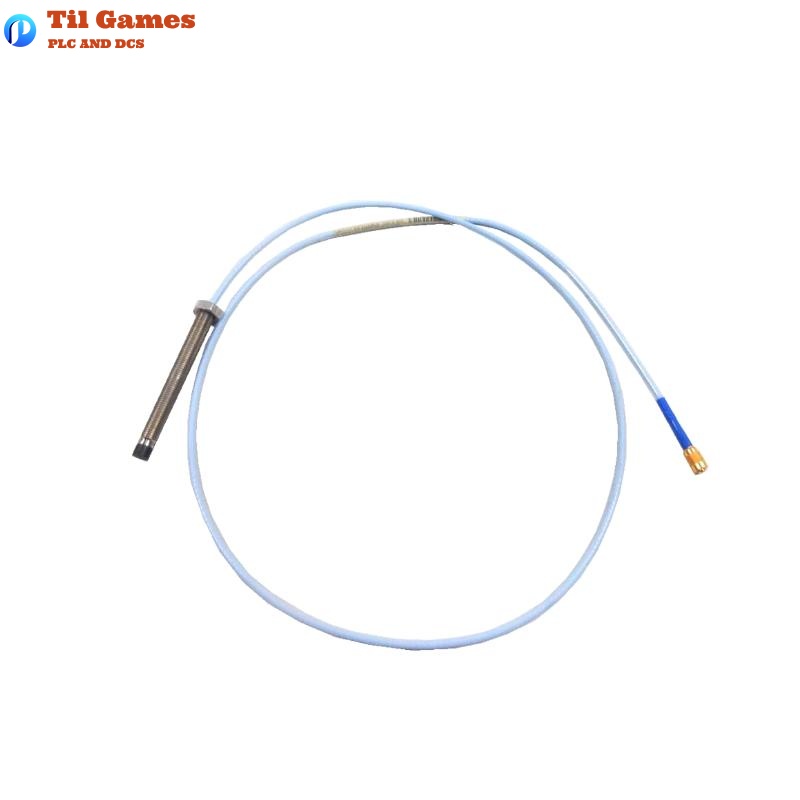

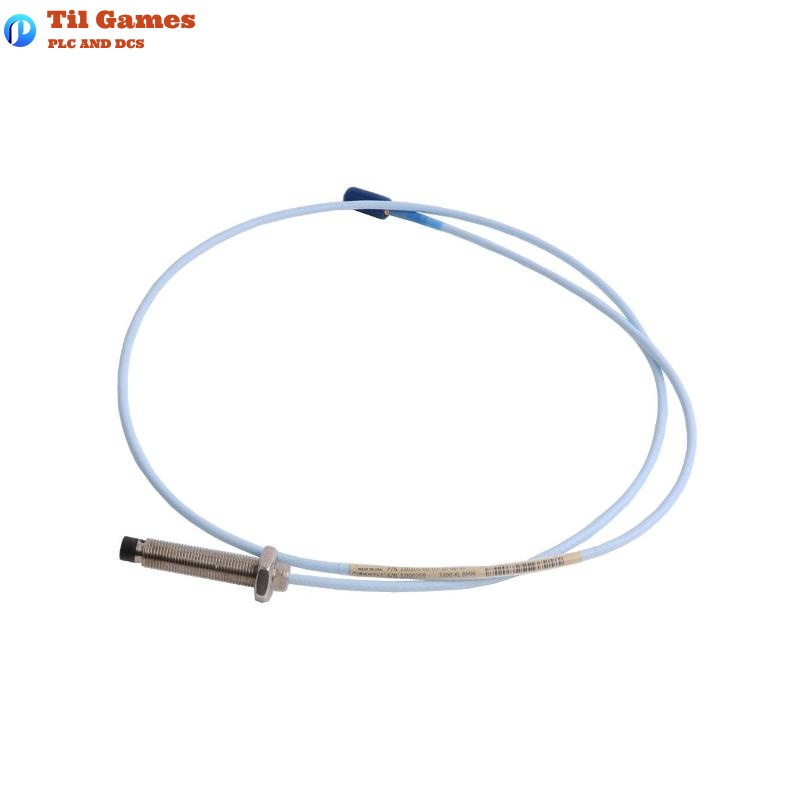

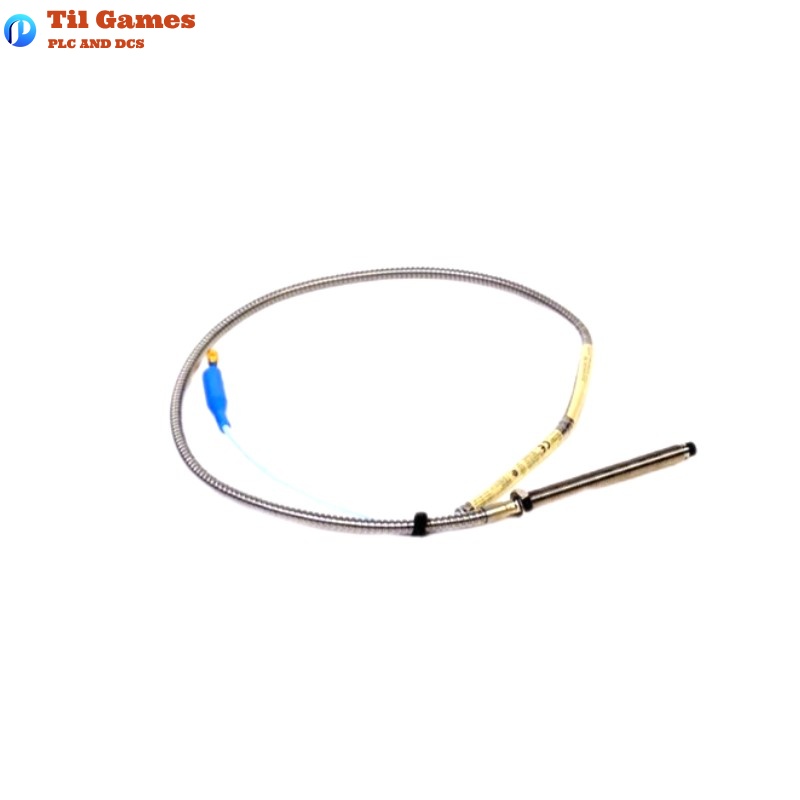

| System Type | ETR (Extended Temperature Range) Reverse Mount Probe |
| Probe Diameter | 8 mm |
| Total Length (C) | 1.0 meter |
| Cable Type | 75Ω triaxial FEP insulated cable with ClickLoc connector |
| Probe Housing Material | AISI 303 or 304 stainless steel |
| Tip Material | PPS (Polyphenylene sulfide) |
| Tensile Strength | 330 N (probe to lead), 270 N (lead to extension connector) |
| Min. Cable Bend Radius | 25.4 mm |
| Temperature Range (Probe) | -52°C to +218°C (tip), -51°C to +260°C (cable and connector) |
| Recommended Mounting Torque | 7.5 N•m (66 in•lbf) |
| Power Supply Requirement | -17.5 Vdc to -26 Vdc |
| Linear Range | 2 mm (from 0.25 mm to 2.3 mm) |
| Recommended Gap Setting | 1.27 mm (approximately -9 Vdc output) |
| Incremental Scale Factor | 7.87 V/mm (±6.5%) |
| Deviation from Best Fit Line | Less than ±0.038 mm (±1.5 mils) |
| Minimum Target Size | 15.2 mm diameter (flat surface) |
| Recommended Min Shaft Dia. | 76.2 mm |
| Weight | 0.323 kg for 1.0 meter configuration |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is this probe suitable for high-temperature environments?
A1: Yes, this ETR probe supports up to 218°C at the tip and 260°C for the cable and connector.
Q2: What standards does the 330196-05-30-10-CN comply with?
A2: It complies with API 670 mechanical standards and has CSA, ATEX, and IECEx approvals.
Q3: Can it be used interchangeably with non-XL components?
A3: Yes, it is electrically and physically compatible with non-XL 3300 5 mm and 8 mm components.
Q4: What target material is the probe calibrated for?
A4: It is factory-calibrated for AISI 4140 steel. Calibration for other materials is available upon request.
Q5: What is the recommended gap setting?
A5: The recommended gap is 1.27 mm (50 mils), corresponding to approximately -9 Vdc output.
Q6: How is oil leakage prevented through the cable?
A6: The FluidLoc cable option prevents internal oil leakage through the cable core.
Q7: What is the weight of the probe?
A7: The probe weighs 0.323 kg in a 1-meter configuration.
Q8: Are any special tools required for installation?
A8: No, the ClickLoc connectors are designed for tool-free, finger-tight installation.
