Technical Specifications
| Parameter | Specification |
|---|---|
| Sensitivity | 3.94 mV/mm/s (100 mV/in/s) ±5% |
| Frequency Response | 4.5 Hz–5 kHz (±3 dB), 6 Hz–2.5 kHz (±0.9 dB) |
| Velocity Range | 1270 mm/s (50 in/s) peak |
| Amplitude Linearity | ±2% to 152 mm/s (6 in/s) peak |
| Mounted Resonant Frequency | >12 kHz |
| Transverse Sensitivity | <5% of sensitivity |
| Output Bias Voltage | -12 ±3 VDC (Pin A reference) |
| Dynamic Output Impedance | <2400 Ω |
| Broadband Noise Floor | 0.004 mm/s rms (4.5 Hz to 5 kHz) |
| Grounding | Case isolated |
| Max Cable Length | 305 m (1,000 ft) with no signal degradation (Cable: PN 02173006) |
| Temperature Sensitivity | -14% to +7.5% typical over operating range |
| Operating Temperature | -55°C to +121°C (-67°F to +250°F) |
| Shock Survivability | 5000 g peak max |
| Relative Humidity | To 100%, non-submerged; case hermetically sealed |
| Base Strain Sensitivity | 0.005 in/s/mstrain |
| Magnetic Field Susceptibility | <51 mm/s/gauss (at 50 gauss, 50-60 Hz) |

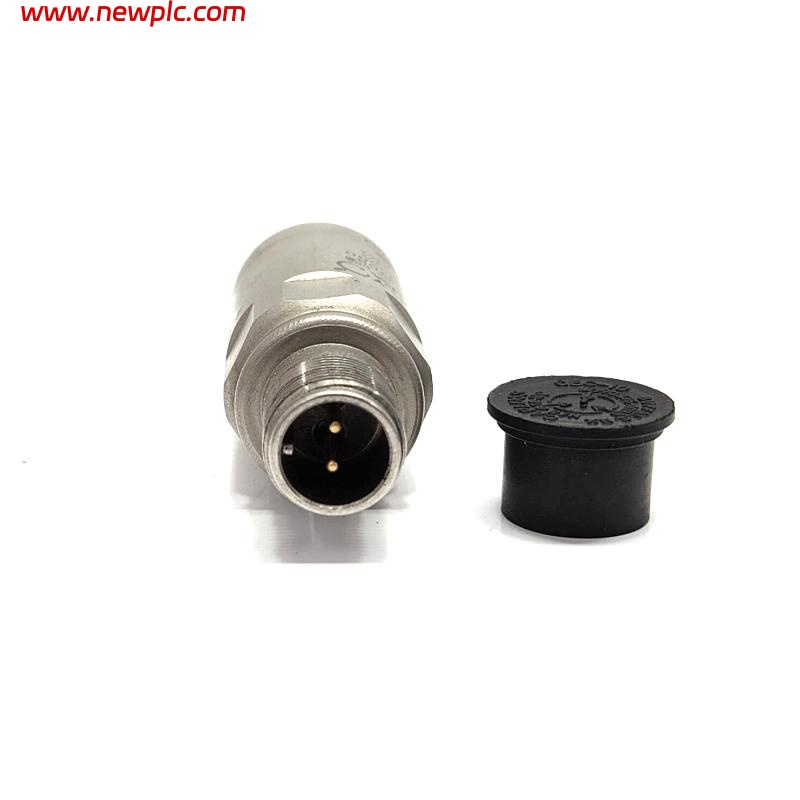

| Connector | 2-pin MIL-C-5015 hermetically sealed, stainless steel |
| Mounting Torque | 32–46 kg·cm (24–40 in·lb) max |
| Case Material | 316L stainless steel |
| Sensor Head Diameter | 25.3 mm (0.995 in) |
| Sensor Height | 63.2 mm (2.49 in) |
| Weight | 0.142 kg (5.0 oz) |
FAQ
FAQ
Q1: What is the primary application of the 330500 Velomitor Sensor?
A1: The sensor is used to measure absolute vibration of bearing housings, casings, or structures in rotating machinery for condition monitoring and protection.
Q2: Can the sensor be installed at any orientation?
A2: Yes. The 330500 sensor can be installed vertically, horizontally, or at any other angle without affecting performance.
Q3: What is the maximum allowable cable length?
A3: The sensor supports up to 305 meters (1,000 feet) of cable (part number 02173006) without signal degradation.
Q4: What is the operating temperature range?
A4: The sensor operates in environments ranging from -55°C to +121°C (-67°F to +250°F).
Q5: Is the sensor suitable for high shock environments?
A5: Yes, it can withstand peak shock levels up to 5000 g, making it ideal for harsh industrial conditions.
Q6: What material is used for the sensor housing?
A6: The housing is made from 316L stainless steel, offering excellent corrosion resistance.
Q7: Does the sensor comply with explosion-proof and international certifications?
A7: Yes, it complies with CSA, ATEX, IECEx certifications and meets marine classification standards including DNV.
Q8: Is the sensor immune to magnetic field interference?
A8: The sensor has low magnetic field susceptibility (<51 mm/s/gauss at 50 gauss), providing reliable operation even in magnetically noisy environments.
