Technical Specifications
| Parameter | Specification |
|---|---|
| Sensitivity | 3.94 mV/mm/s (100 mV/in/s) ±5% |
| Frequency Response | 4.5 Hz to 5 kHz (±3.0 dB), 6.0 Hz to 2.5 kHz (±0.9 dB) |
| Velocity Range | 1270 mm/s (50 in/s) peak |
| Amplitude Linearity | ±2% up to 152 mm/s (6 in/s) peak |
| Transverse Sensitivity | < 5% |
| Mounted Resonant Frequency | > 12 kHz |
| Output Bias Voltage | -12 ±3.0 VDC |
| Dynamic Output Impedance | < 2400 Ω |
| Broadband Noise Floor (4.5 Hz–5 kHz) | 0.004 mm/s (160 μin/s) rms |
| Case Grounding | Isolated |
| Max Cable Length | 305 m (1,000 ft) using PN 02173006 |
| Operating Temperature Range | -55°C to +121°C (-67°F to +250°F) |
| Shock Survivability | 5,000 g peak |
| Humidity | 100% non-submerged (hermetically sealed) |
| Base Strain Sensitivity | 0.005 in/s/mstrain |
| Magnetic Field Susceptibility | < 51 min/s/gauss |
| Weight | 0.142 kg (5.0 oz) |
| Sensor Head Diameter | 25.3 mm (0.995 in) |
| Height | 63.2 mm (2.49 in) |
| Case Material | 316L stainless steel |
| Connector | 2-pin MIL-C-5015, hermetically sealed |
| Mounting Torque | 32–46 kg·cm (24–40 in-lb) |
FAQ
FAQ
Q1: What is the primary application of the 330500 Velomitor sensor?
A1: It is used to measure absolute casing or bearing housing vibration for machinery condition monitoring.

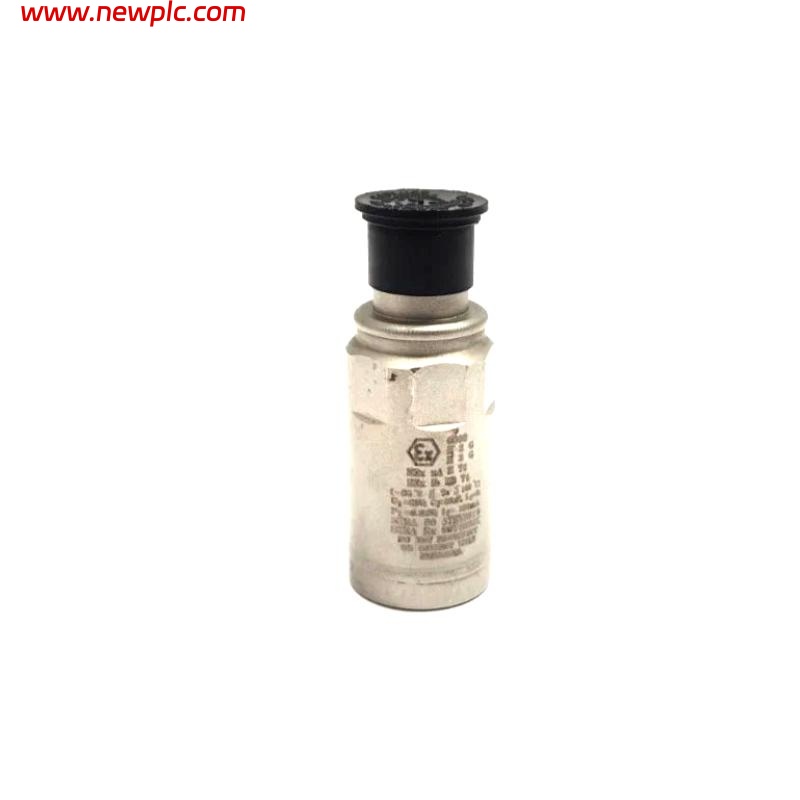

Q2: Is the sensor suitable for hazardous environments?
A2: Yes, it is certified for hazardous areas including ATEX, IECEx, and CSA with appropriate entity parameters.
Q3: What mounting orientations are supported?
A3: The sensor can be mounted vertically, horizontally, or at any angle without performance degradation.
Q4: What is the maximum operating temperature?
A4: The sensor operates up to +121°C (+250°F).
Q5: How long can the signal cable be without signal degradation?
A5: Up to 305 meters (1,000 feet) with part number 02173006.
Q6: What type of connector does the sensor use?
A6: It uses a hermetically sealed 2-pin MIL-C-5015 stainless steel connector.
Q7: What is the noise floor performance of the sensor?
A7: The typical broadband noise floor is 0.004 mm/s (160 μin/s) rms in the 4.5 Hz to 5 kHz range.
Q8: Can this sensor be used in submerged conditions?
A8: No, it supports 100% humidity but must not be submerged in liquid.
