Technical Specifications
| Item | Specification |
|---|---|

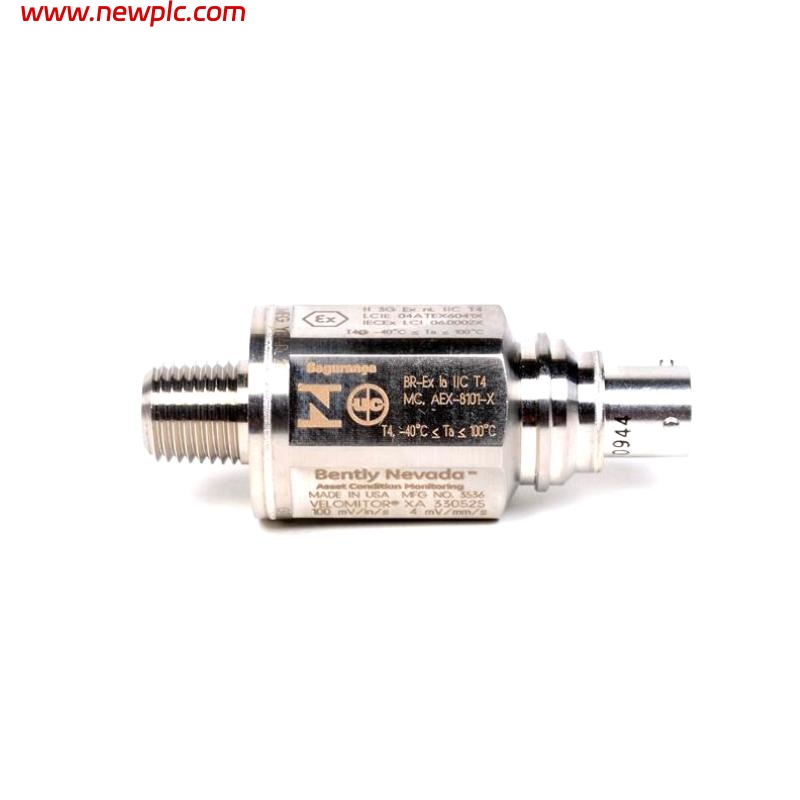

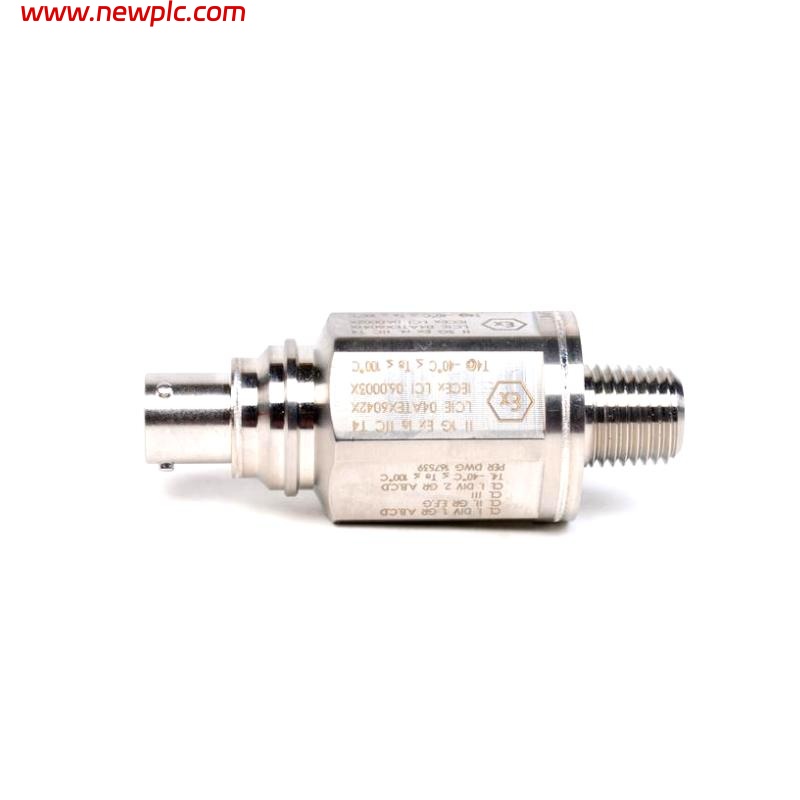

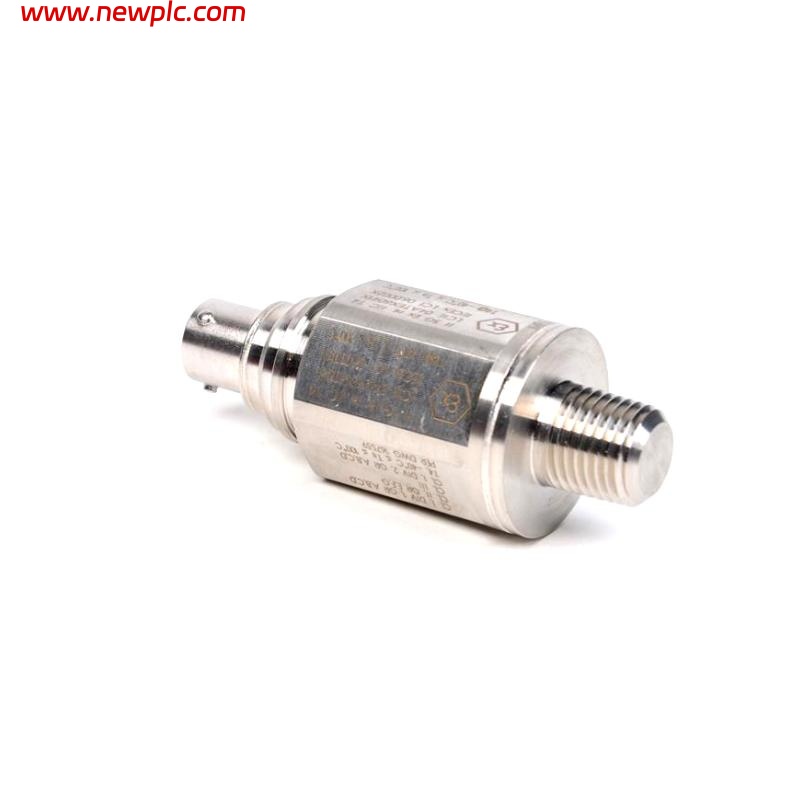

| Model | Bently Nevada 330525‑02 Velomitor XA Piezo‑velocity Sensor |
| Sensor Type | Piezoelectric velocity sensor |
| Product Category | Asset Condition Monitoring / Vibration Sensor |
| Purpose | Measures vibration velocity on machinery for condition monitoring |
| Sensitivity | Approx. 3.94 mV/mm/s (100 mV/in/s) ±5 % |
| Frequency Response | ~4.5 Hz to ~2 000 Hz |
| Velocity Range | Up to approx. 1 270 mm/s (50 in/s) peak |
| Operating Temperature Range | –55 °C to +121 °C |
| Shock Survivability | Up to approx. 5 000 g peak |
| Case Material | 316L stainless steel |
| Connector | 2‑pin hermetically sealed connector |
| Cable | Weatherproof cable assembly included |
| Hermetic Sealing | Yes — 100 % non‑submerged humidity resistance |
| Dimensions | Approx. 73 mm height × 28 mm diameter |
| Magnetic Field Susceptibility | Low susceptibility to magnetic interference |
| Weight | Approx. 156 g |
| Mounting Torque | Max. ~45 N·m |
| Typical Application | Vibration condition monitoring on turbines, compressors, pumps, and motors |
FAQ
FAQ
Q1: What does the Bently Nevada 330525‑02 sensor measure?
It measures vibration velocity of rotating machinery for condition monitoring and predictive maintenance.
Q2: What type of sensor is the 330525‑02?
It is a piezoelectric velocity sensor designed for accurate vibration velocity measurement.
Q3: What is the sensitivity of this sensor?
The sensor’s sensitivity is approximately 3.94 mV per mm/s (100 mV per in/s), with ±5 % tolerance.
Q4: Over what frequency range does it operate effectively?
It operates effectively from about 4.5 Hz up to around 2 000 Hz.
Q5: What environments can this sensor withstand?
It is designed for industrial environments with an operating temperature range from –55 °C to +121 °C and hermetic sealing against humidity.
Q6: What connector type is used?
It uses a 2‑pin hermetically sealed connector for reliable performance.
Q7: Is this sensor suitable for high‑shock applications?
Yes — it can withstand high shock loads, up to approximately 5 000 g peak.
Q8: What equipment is this sensor typically used on?
It is commonly used on rotating equipment such as turbines, compressors, pumps, and motors for continuous vibration monitoring.
