Technical Specifications
| Item | Specification |
|---|---|

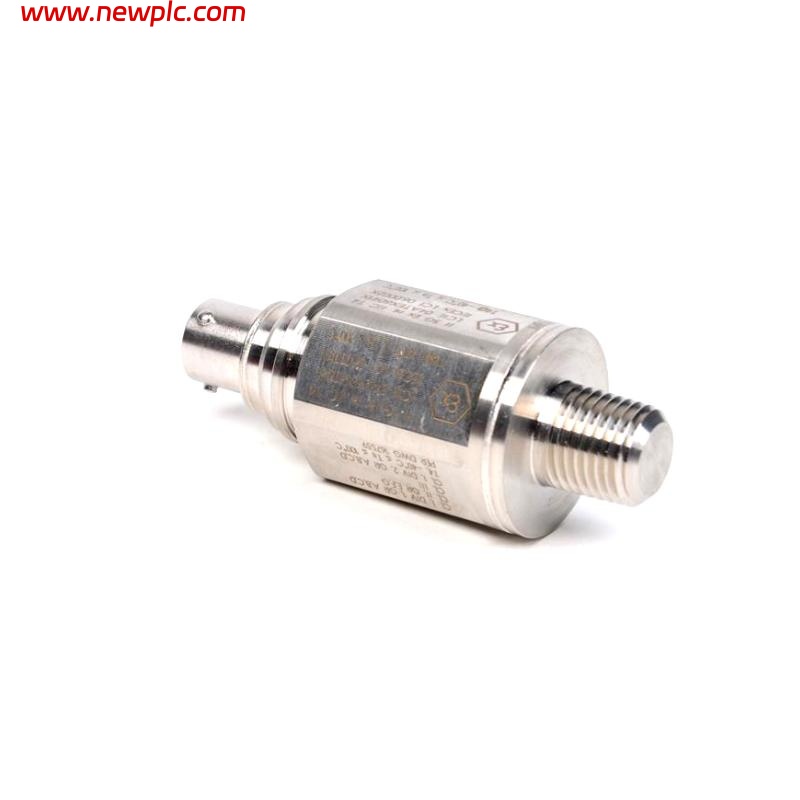

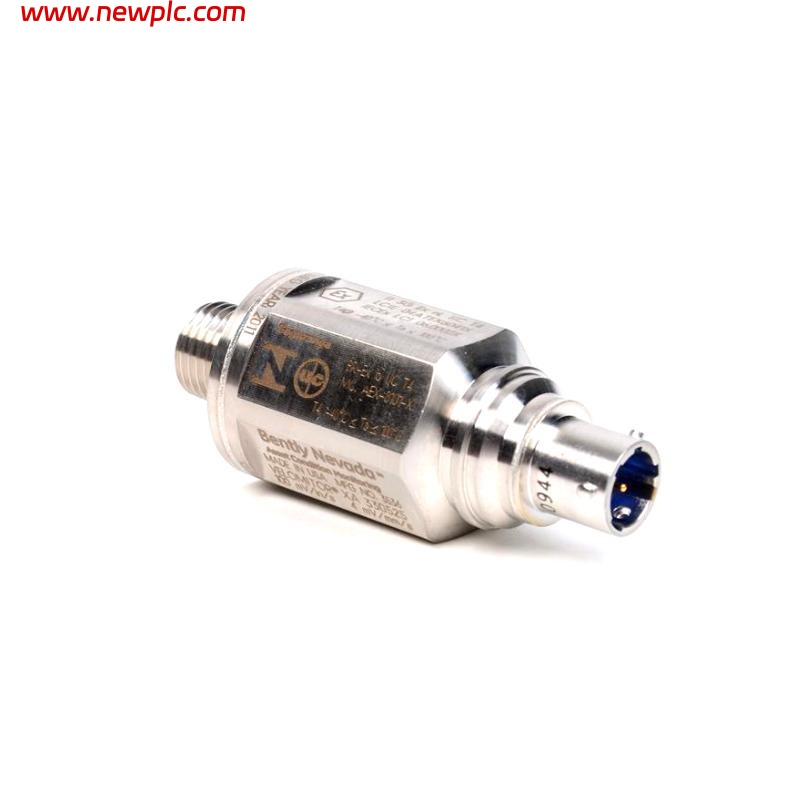

| Model | Bently Nevada 330525‑02 Velomitor XA Piezo‑velocity Sensor |
| Sensor Type | Piezoelectric velocity sensor |
| Product Category | Asset Condition Monitoring / Vibration Sensor |
| Purpose | Measures vibration velocity for machinery condition monitoring |
| Sensitivity | Approx. 3.94 mV/mm/s (100 mV/in/s) ±5 % |
| Frequency Response | 4.5 Hz to 2 000 Hz ±3.0 dB |
| Velocity Range | Up to approx. 1 270 mm/s (50 in/s) peak |
| Operating Temperature Range | –55 °C to +121 °C (–67 °F to +250 °F) |
| Shock Survivability | Up to 5 000 g peak |
| Case Material | 316L stainless steel |
| Connector | 2‑pin hermetically sealed Mil‑C‑26482 connector |
| Dimensions | Height ~73.1 mm; Diameter ~28 mm |
| Cable | Weatherproof cable assembly |
| Magnetic Field Susceptibility | <51 min/s/gauss (50 gauss, 50–60 Hz) |
| Humidity Resistance | Up to 100 % non‑submerged (hermetically sealed) |
| Typical Weight | ~156 g |
| Mounting Torque | Max. ~45 N·m |
| Typical Application | Continuous vibration monitoring on rotating machinery |
FAQ
FAQ
Q1: What does the 330525‑02 Velomitor XA Piezo‑velocity Sensor measure?
It measures the vibration velocity of industrial machinery for condition monitoring and predictive maintenance.
Q2: What is the sensitivity of this sensor?
The sensor provides approximately 3.94 mV per mm/s (100 mV per in/s) of vibration velocity.
Q3: Over what frequency range does this sensor operate effectively?
It operates effectively from 4.5 Hz to 2 000 Hz.
Q4: What environments can the 330525‑02 sensor work in?
It is designed for harsh industrial environments, with an operating temperature range of –55 °C to +121 °C and hermetic sealing against humidity.
Q5: What type of connector does this sensor use?
It uses a 2‑pin hermetically sealed connector designed for reliable performance in demanding conditions.
Q6: Is this sensor suitable for high‑shock applications?
Yes — it can withstand high shock loads, up to 5 000 g peak.
Q7: What kind of machinery is this sensor typically used on?
It is used on rotating equipment such as turbines, compressors, pumps, and motors for vibration condition monitoring.
Q8: Does the sensor require special housing for installation?
No — the weatherproof cable and connector assembly allow mounting without additional housing in many applications.
