Technical Specifications
| Parameter | Specification |
|---|---|

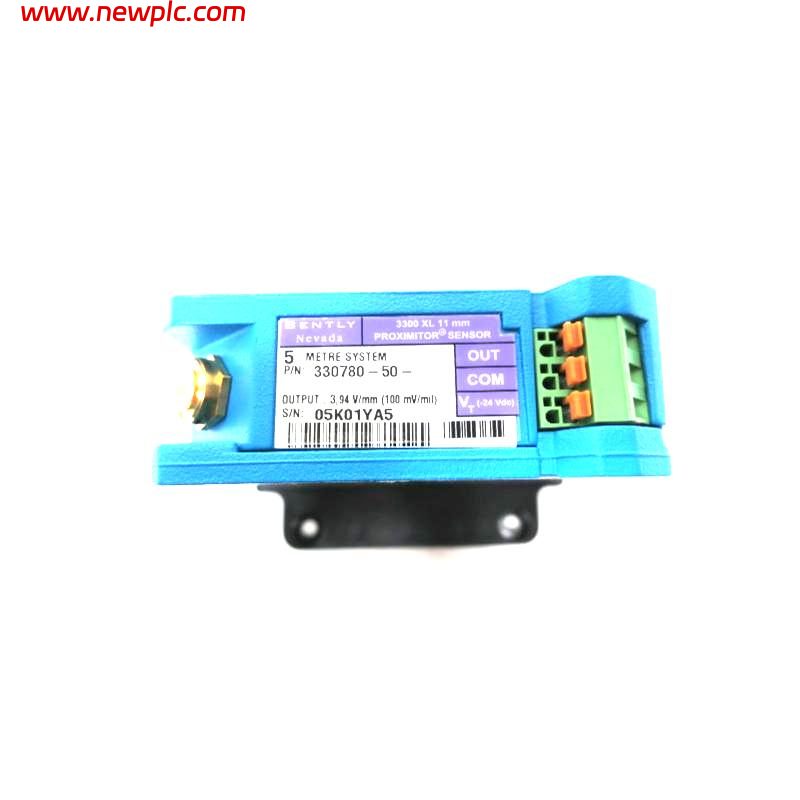

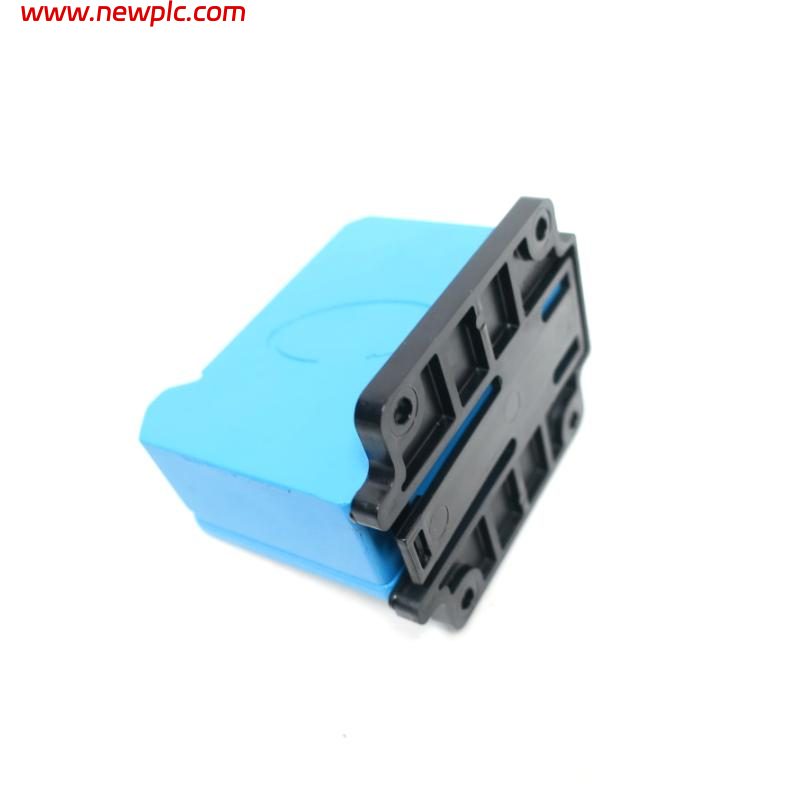

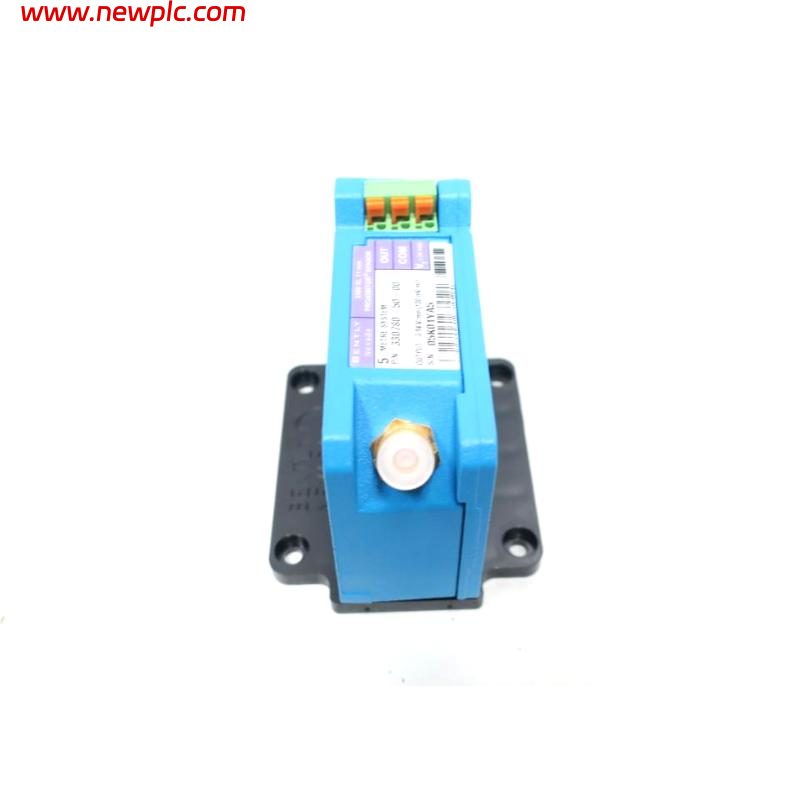

| Product Name | Bently Nevada 330780-50-01 |
| Product ID | 330780-50-01 |
| Manufacturer | Bently Nevada |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Series | 3300 XL 11 mm Proximitor® Transducer System |
| Function | Non-contact measurement of shaft vibration, axial position, differential expansion, and rotor displacement in rotating machinery |
| Measurement Technology | Eddy Current Proximity Sensing |
| Probe Diameter | 11 mm |
| Thread Type | 3/4-16 UNF |
| Case Length | 5.0 in (127 mm) |
| Connector Type | Standard Miniature Coaxial Connector |
| Probe Material | Stainless Steel Housing |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Sensitivity | 3.94 V/mm (100 mV/mil) Typical |
| Linear Range | Approximately 4.0 mm (160 mils) |
| Frequency Response | 0 Hz to 8 kHz |
| Operating Temperature | −51°C to +177°C |
| System Compatibility | Bently Nevada 3300 XL 11 mm Proximitor® Sensors and Extension Cables |
| Application | Steam Turbines, Gas Turbines, Compressors, Expanders, Pumps, Motors, Generators |
| Dimensions & Weight | Probe diameter 11 mm, thread size 3/4-16 UNF, case length 127 mm, overall probe length approximately 165 mm, weight approximately 0.15–0.20 kg |
| Country of Origin | United States |
FAQ
FAQ
Q1: What is the Bently Nevada 330780-50-01 used for?
It is an 11 mm proximity probe used for non-contact measurement of shaft vibration, position, and displacement in rotating machinery.
Q2: What does option 50 indicate?
Option 50 specifies a probe case length of 5.0 inches (127 mm).
Q3: What does option 01 indicate?
Option 01 specifies the standard miniature coaxial connector configuration.
Q4: What is the difference between an 11 mm probe and an 8 mm probe?
The 11 mm probe provides a larger linear measurement range and is commonly used for applications requiring greater shaft displacement measurement capability.
Q5: What are the dimensions and weight?
The probe has an 11 mm diameter, a 127 mm case length, an overall length of approximately 165 mm, and weighs approximately 0.15–0.20 kg.
Q6: What monitoring applications is this probe suitable for?
It is commonly used for shaft vibration, thrust position, differential expansion, rotor eccentricity, and casing expansion measurements.
Q7: Is this probe compatible with 3300 XL 8 mm systems?
No. The 330780 series must be used with matching 3300 XL 11 mm Proximitor® sensors and extension cables.
Q8: What should be verified before replacement?
Verify probe diameter, case length, connector type, extension cable length, system calibration requirements, and compatibility with the existing 3300 XL 11 mm transducer system.
