Technical Specifications
| Parameter | Specification |
|---|---|

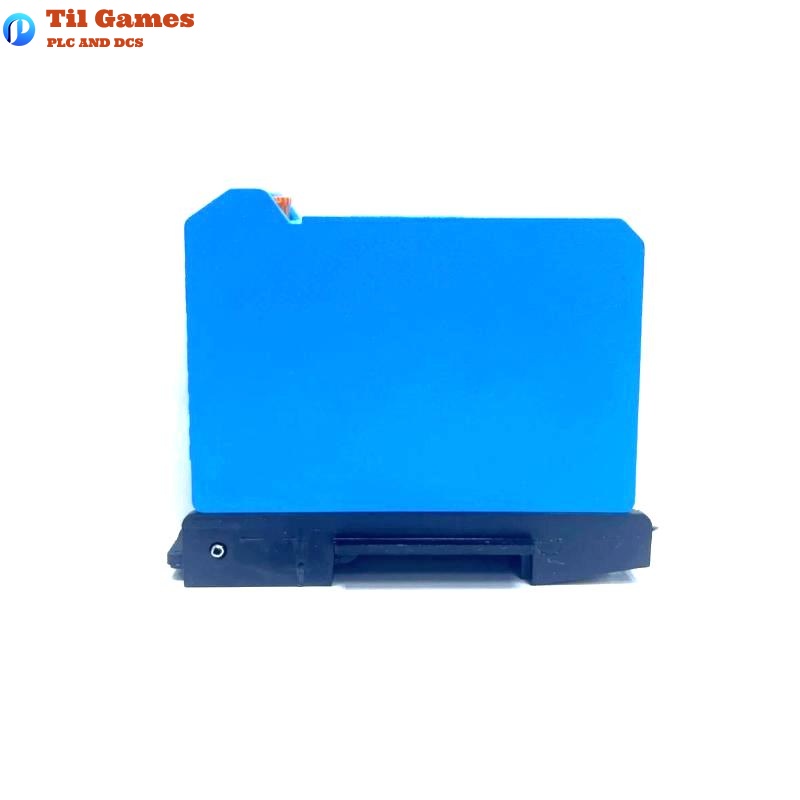

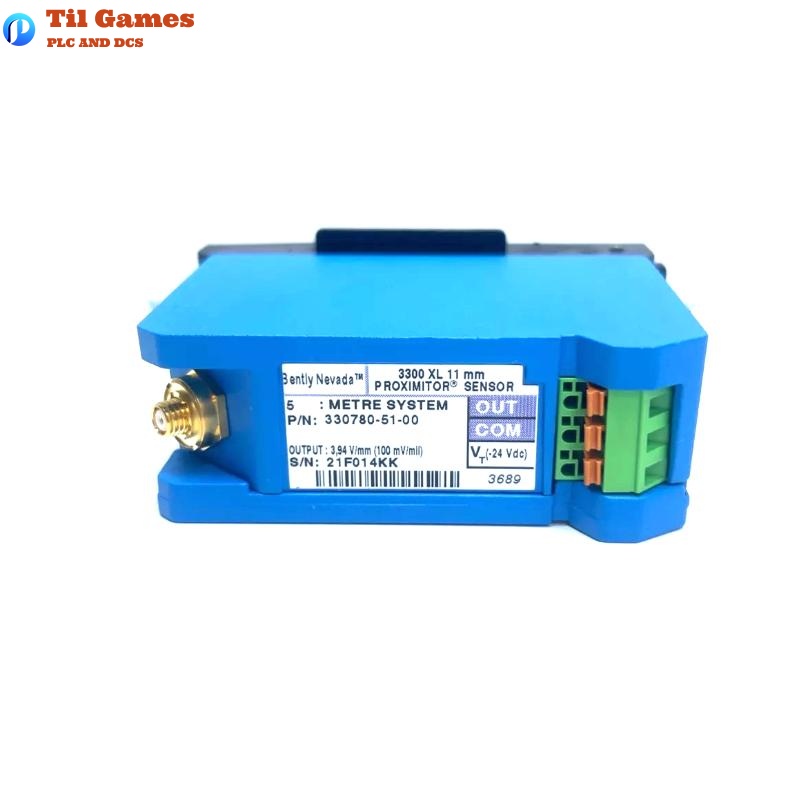

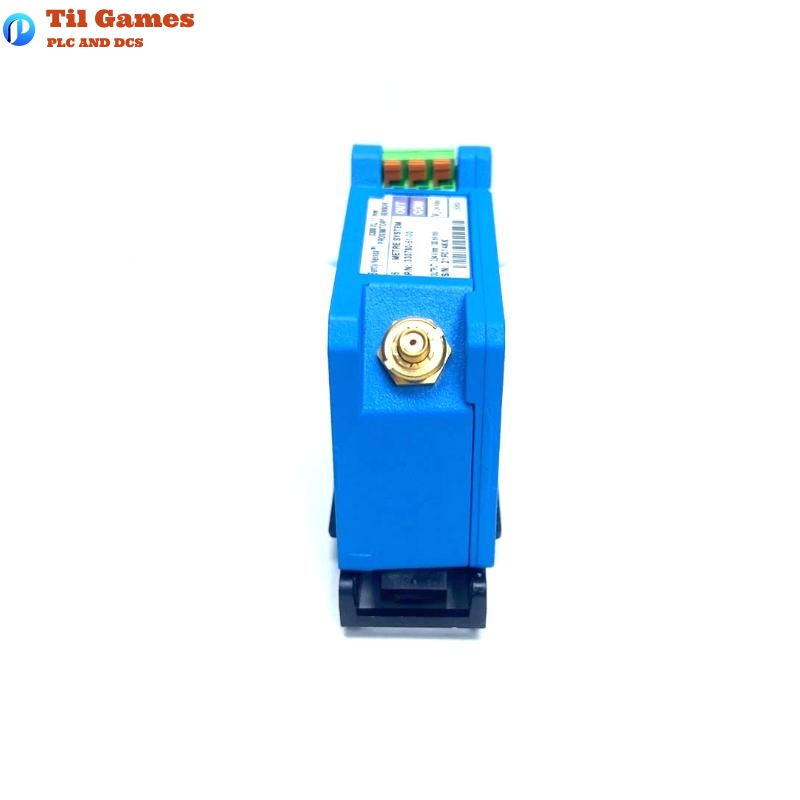

| Product Name | Bently Nevada 330780-51-00 3300 XL 11 mm Proximitor Sensor |
| System Length | 5.0 meters (extension cable + probe) |
| Total Weight | Approx. 0.255 kg (9 oz) |
| Power Supply | -17.5 Vdc to -26 Vdc, max 12 mA current |
| Output Scale Factor | 3.94 V/mm (100 mV/mil) ±10% |
| Frequency Response | 0 to 8 kHz, +0/-3 dB typical |
| Linear Range | 0.5 mm to 4.5 mm (20 to 180 mils) |
| Extended Deviation Range | 0.5 mm to 5.0 mm (20 to 200 mils), not applicable with zener barriers |
| Operating Temperature (Sensor) | -52°C to +100°C (-62°F to +212°F) |
| Storage Temperature (Sensor) | -52°C to +105°C (-62°F to +221°F) |
| Probe Operating Temperature | -52°C to +177°C (-62°F to +351°F) |
| Humidity | 100% condensing (non-submersible, connectors protected) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Sensor Housing Material | A380 Aluminum |
| Cable Type | 75 Ω triaxial, FEP insulation |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Mounting Option | DIN Rail Mount |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the linear measuring range of the 330780-51-00 Proximitor Sensor?
A1: The linear range is from 0.5 mm to 4.5 mm, with an extended deviation range up to 5.0 mm.
Q2: What is the output scale of this sensor system?
A2: It provides 3.94 V/mm (100 mV/mil) output, accurate within ±10%.
Q3: What is the sensor’s operating temperature range?
A3: It operates from -52°C to +100°C, with storage up to +105°C.
Q4: Is the sensor resistant to EMI/RFI interference?
A4: Yes, it is designed with improved RFI/EMI immunity and meets CE standards.
Q5: What type of mounting does the 330780-51-00 support?
A5: It supports DIN rail mounting.
Q6: Is the system compliant with hazardous area certifications?
A6: Yes, it meets ATEX, IECEx, and other hazardous area approvals (e.g., Ex ia IIC T4/T5 Ga).
Q7: How long can the system wiring be?
A7: Up to 305 meters (1,000 feet) of field wiring between Proximitor Sensor and monitor is supported.
Q8: What’s the recommended gap setting?
A8: The standard recommended probe-to-target gap is 2.5 mm (100 mils).
