Technical Specifications
| Parameter | Specification |
|---|---|

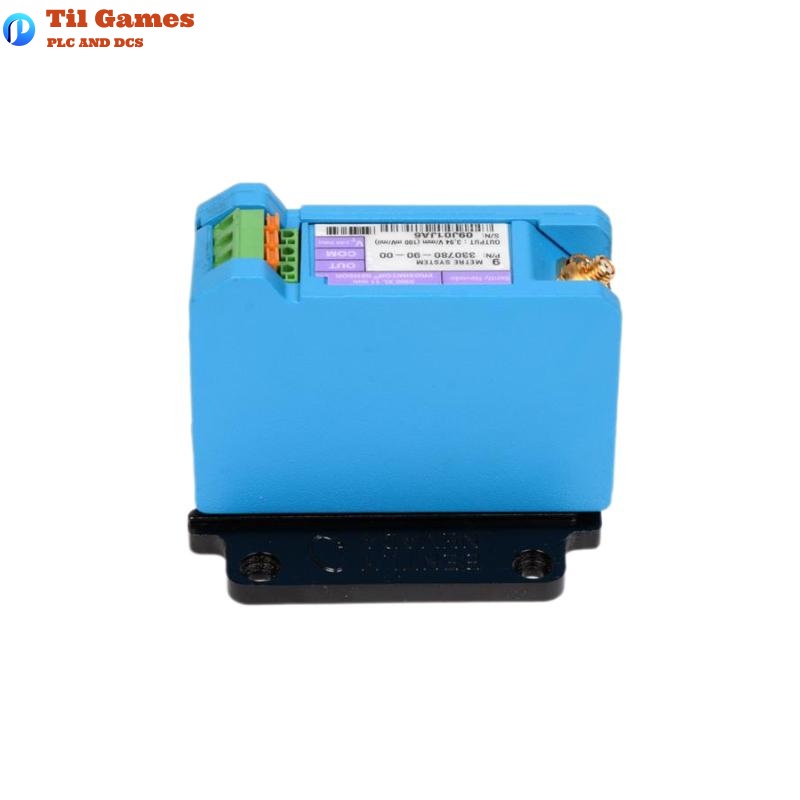

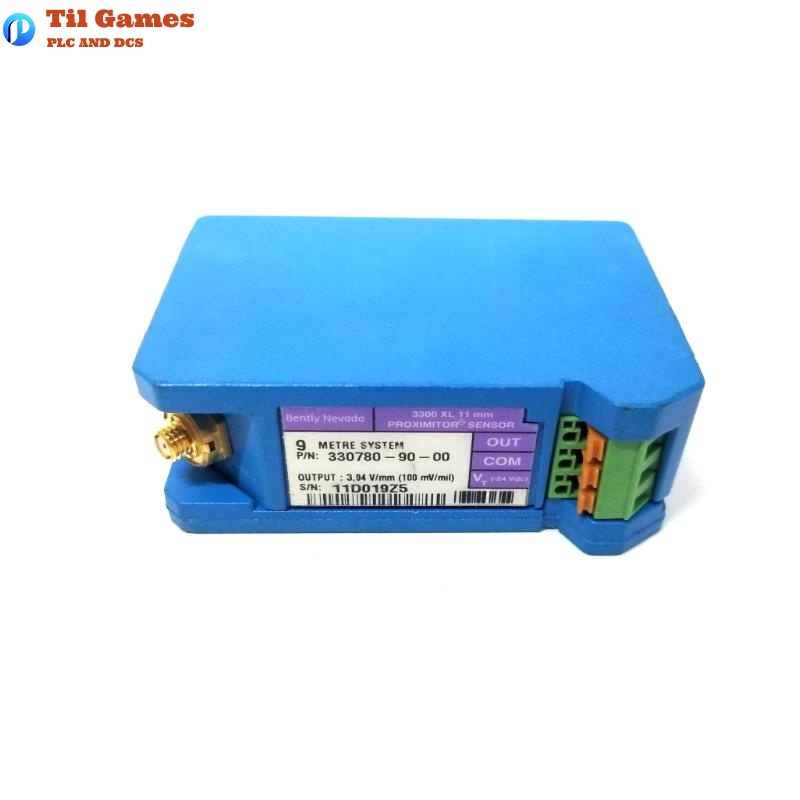

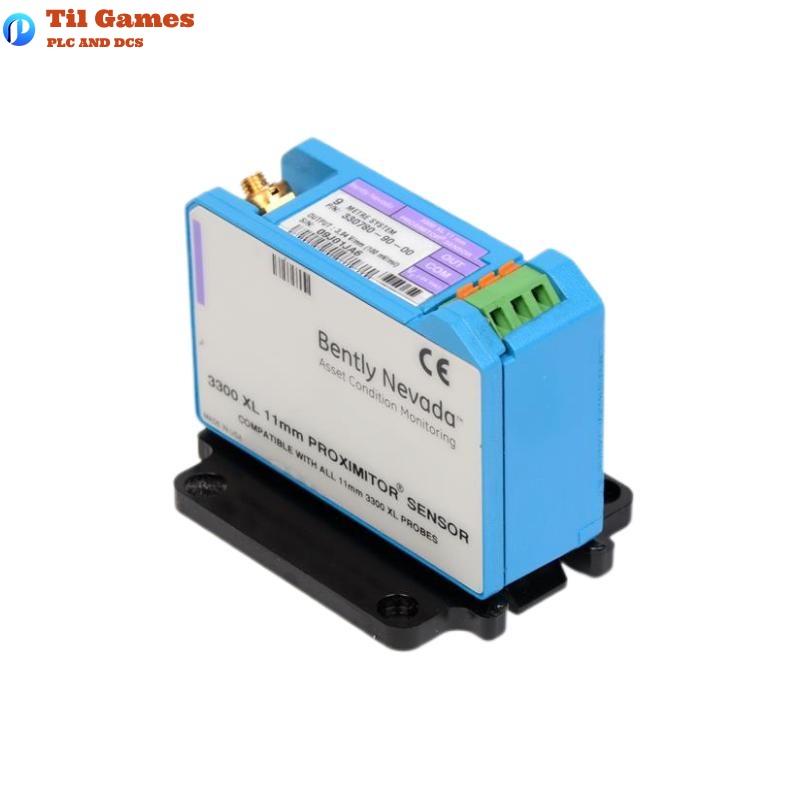

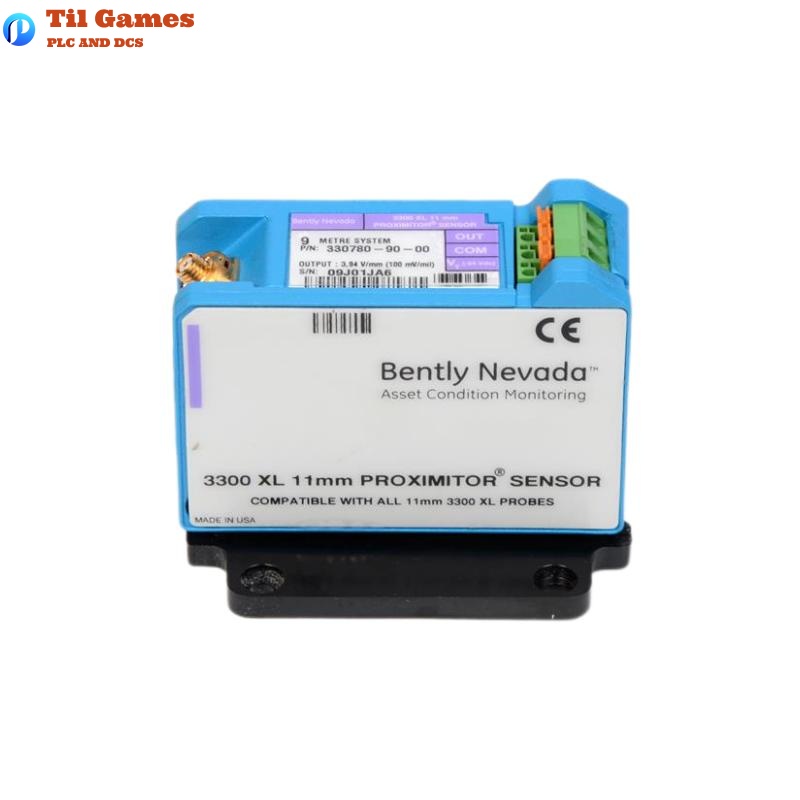

| Model | Bently Nevada 330780-90-00 3300 XL 11 mm Proximitor Sensor |
| Total System Length | 9.0 meters |
| Weight | 255 g (0.255 kg) |
| Frequency Range | 0 to 8 kHz |
| Output Scale Factor | 3.94 V/mm (100 mV/mil) ±10% |
| Linear Range | 0.5 mm to 4.5 mm (20 to 180 mils) |
| Recommended Gap | 2.5 mm (100 mils) |
| Output Resistance | 50 Ω |
| Input Power Supply | -17.5 Vdc to -26 Vdc, 12 mA max |
| Supply Sensitivity | <2 mV output change per volt input change |
| Sensor Material | A380 aluminum |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Case Material | AISI 304 stainless steel |
| Probe Cable Insulation | FEP (fluoroethylene propylene), 75 Ω triaxial |
| Extension Cable Insulation | FEP, 75 Ω triaxial |
| Min. Bend Radius (Cable) | 25.4 mm |
| Environmental Protection | 100% RH condensing (non-submersible with protected connectors) |
| Operating Temp (Sensor) | -52°C to +100°C |
| Operating Temp (Probe & Cable) | -52°C to +177°C |
| DSL Accuracy (Linear) | ±0.10 mm |
| DSL Accuracy (Extended) | ±0.15 mm |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary application of the 330780-90-00 Proximitor Sensor?
A1: It is mainly used for vibration and displacement monitoring in rotating machinery with fluid film bearings, including axial position and rod drop measurements.
Q2: What type of output does this sensor provide?
A2: The sensor provides a proportional voltage output of 3.94 V/mm (100 mV/mil).
Q3: Can the sensor be used in hazardous areas?
A3: Yes, it is certified for use in hazardous environments including Class I, Zone 0/2 and Division 2 areas.
Q4: What is the recommended gap setting for optimal measurement?
A4: The recommended gap setting is 2.5 mm (100 mils).
Q5: What materials are used in the sensor’s construction?
A5: The sensor housing is made of A380 aluminum; the probe tip is PPS and the probe case is AISI 304 stainless steel.
Q6: Is the system compatible with older 7200-series transducer systems?
A6: No, it requires full replacement of all components with the 3300 XL 11 mm series parts.
Q7: What is the operating temperature range of the Proximitor Sensor?
A7: The sensor can operate from -52°C to +100°C.
Q8: How is the sensor protected from electromagnetic interference?
A8: It features improved RFI/EMI immunity, compliant with CE regulations, and supports DIN rail or panel mounting.
