Technical Specifications
| Parameter | Specification |
|---|---|

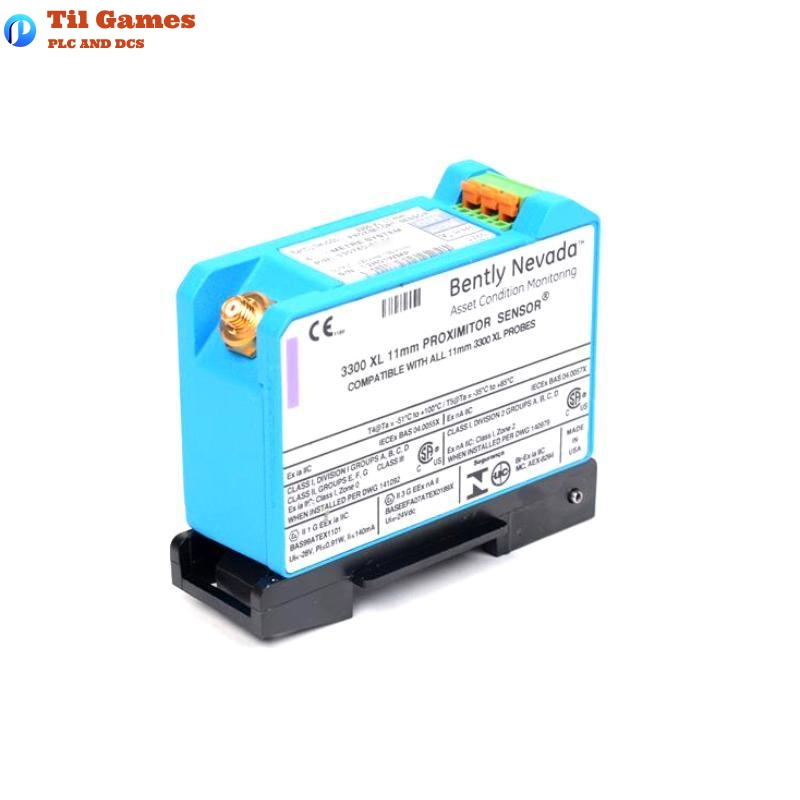

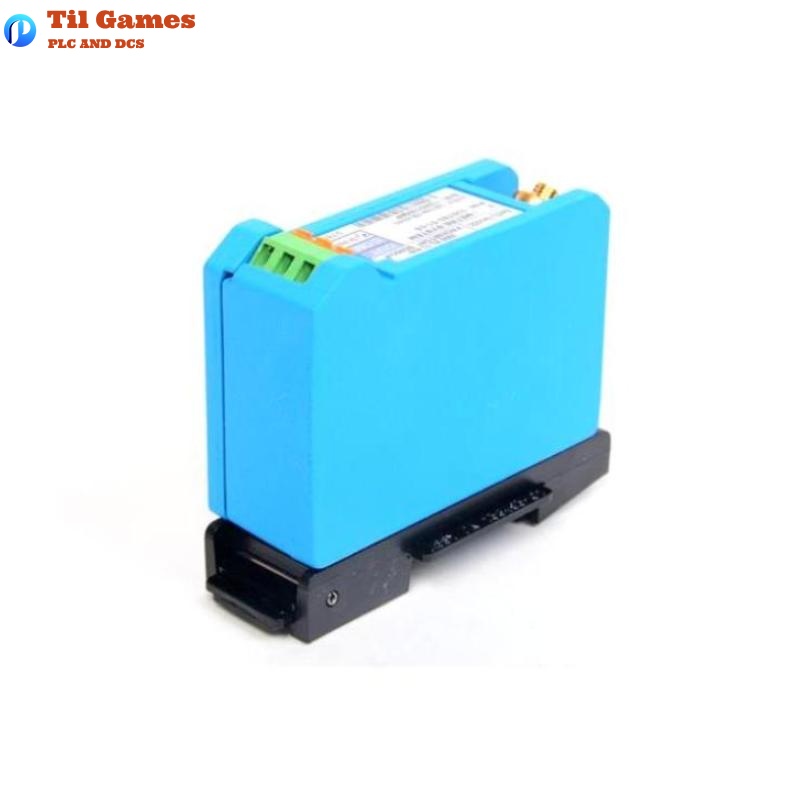

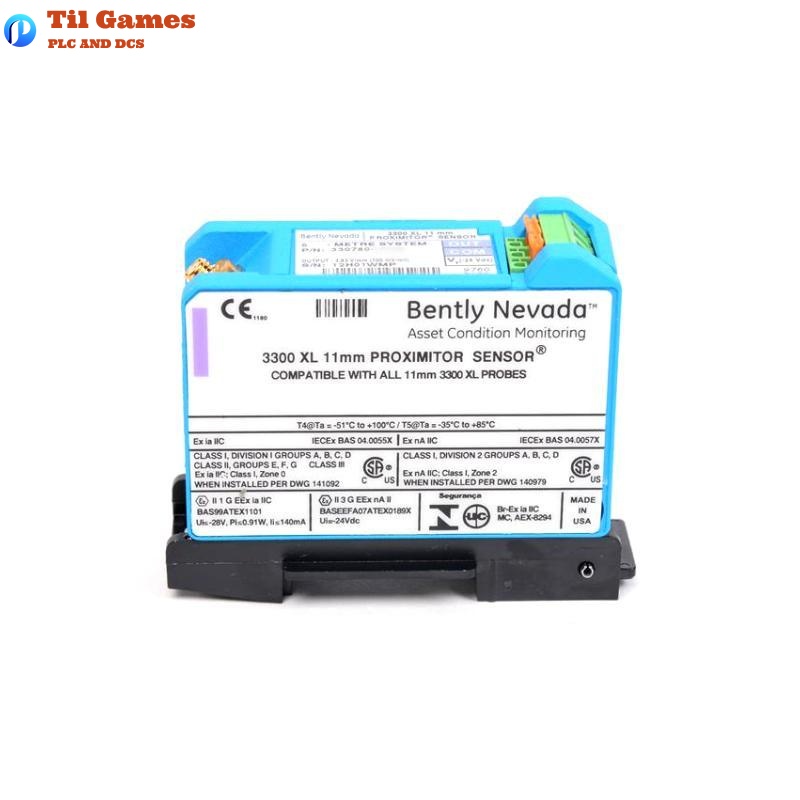

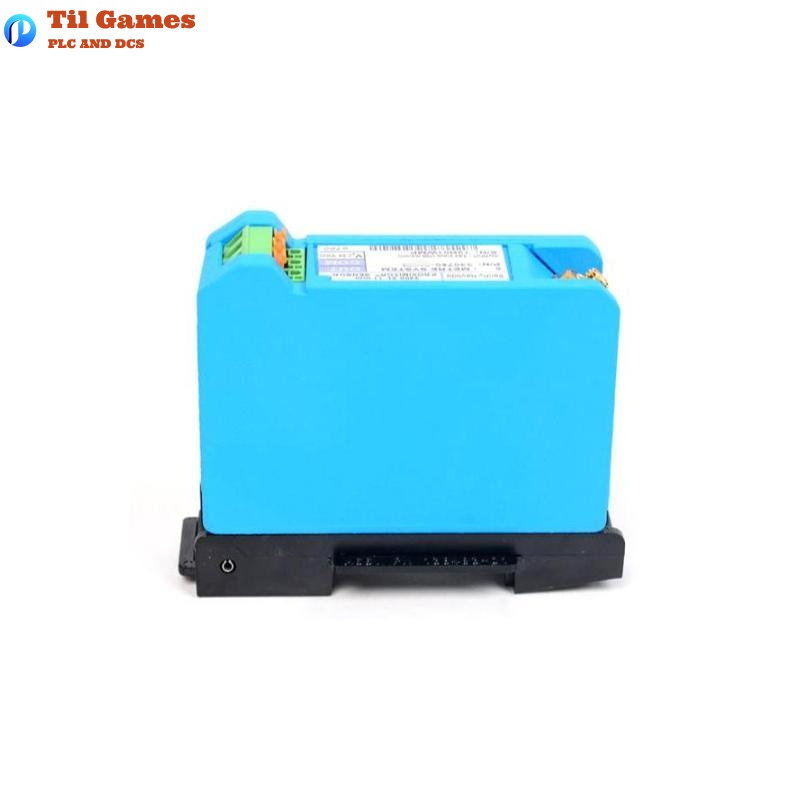

| Model | 330780-52-00 |
| System Length | 5.0 meters (including probe and extension cable) |
| Output Scale | 3.94 V/mm (100 mV/mil) ±10% |
| Frequency Response | 0 to 8 kHz, typical ±3 dB |
| Linear Range | 0.5 mm to 4.5 mm (20 to 180 mils) |
| Recommended Gap | 2.5 mm (100 mils) |
| Supply Voltage | –17.5 Vdc to –26 Vdc |
| Power Consumption | 12 mA max |
| Operating Temperature (Sensor) | –52°C to +100°C |
| Storage Temperature (Sensor) | –52°C to +105°C |
| Operating Temperature (Probe) | –52°C to +177°C |
| Storage Temperature (Probe) | –52°C to +177°C |
| System Weight | 0.255 kg (255 g) |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Sensor Housing Material | A380 Aluminum |
| Cable Type | 75 Ω triaxial, FEP insulated |
| Connector Type | Miniature coaxial ClickLoc, gold-plated brass |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Max Probe Pull Strength | 330 N (75 lbs) |
| Output Resistance | 50 Ω |
| Capacitance of Extension Cable | 69.9 pF/m (typical) |
| Total Length | 5.0 meters |
| Total Weight | 0.255 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the output signal type of the 330780-52-00 sensor?
A1: It outputs a voltage signal of 3.94 V/mm (100 mV/mil), non-contact.
Q2: What is the recommended gap for optimal operation?
A2: 2.5 mm (100 mils) from the target surface.
Q3: Can this sensor be used for high-speed vibration measurements?
A3: Yes, it supports a frequency response up to 8 kHz, suitable for high-speed applications.
Q4: What is the primary application of this sensor?
A4: It is used for thrust position, rod drop, differential expansion, and Keyphasor measurements.
Q5: Does this sensor require specific target material for calibration?
A5: Yes, it is factory-calibrated to AISI 4140 steel by default.
Q6: Is it compatible with legacy 7200-series systems?
A6: No, full component replacement is required when upgrading from 7200-series to 3300 XL.
Q7: What mounting options are supported?
A7: It can be installed with panel mount, DIN rail mount, or without mounting hardware.
Q8: Is the sensor protected against EMI/RFI interference?
A8: Yes, it features enhanced EMI/RFI immunity for industrial environments.
