Technical Specifications
| Category | Specification |
|---|---|
| Output Sensitivity | 3.94 V/mm (100 mV/mil) ±10% over 0.5 to 4.5 mm linear range |
| Linear Range | 0.5 mm to 4.5 mm (standard), 0.5 mm to 5.0 mm (extended) |
| Recommended Gap | 2.5 mm (100 mils) |
| Frequency Response | 0 Hz to 8 kHz (+0, -3 dB typical) |
| Power Supply | -17.5 Vdc to -26 Vdc (no barriers), -23 Vdc to -26 Vdc (with barriers), max 12 mA |
| Output Resistance | 50 Ω |
| Cable Capacitance | 69.9 pF/m typical |
| Probe Material | PPS tip, AISI 304 stainless steel case |
| Probe Cable | 75 Ω triaxial, FEP insulated |
| Extension Cable Material | 75 Ω triaxial, FEP insulated |
| Sensor Housing Material | A380 aluminum |
| Tensile Strength | 330 N (probe case to lead), 270 N (lead to cable connector) |
| Recommended Torque | 15.2–21.1 N·m (standard), 7.5 N·m (reverse mount) |
| Min. Bend Radius | 25.4 mm (with or without armor) |
| Temperature Range | Probe: -52°C to +177°C; Sensor: -52°C to +100°C; Cable: -52°C to +177°C |
| Relative Humidity | 100% condensing, not submersible, connectors must be protected |
| Total Length | 9.0 meters |
| Total Weight | 0.255 kg (255 grams) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary application of this sensor?
A1: It is designed for non-contact vibration and displacement measurements including thrust position, differential expansion, rod drop, tachometer, and Keyphasor signals.
Q2: What advantage does the 11 mm system have over the 8 mm system?
A2: The 11 mm system offers a longer linear range (up to 5 mm), making it more suitable for applications like thrust or expansion measurements.
Q3: Can this sensor be used interchangeably with the older 7200 series?
A3: No. The 3300 XL 11 mm system components are not compatible with the 7200 series and must be replaced entirely.
Q4: Does the sensor support DIN rail mounting?

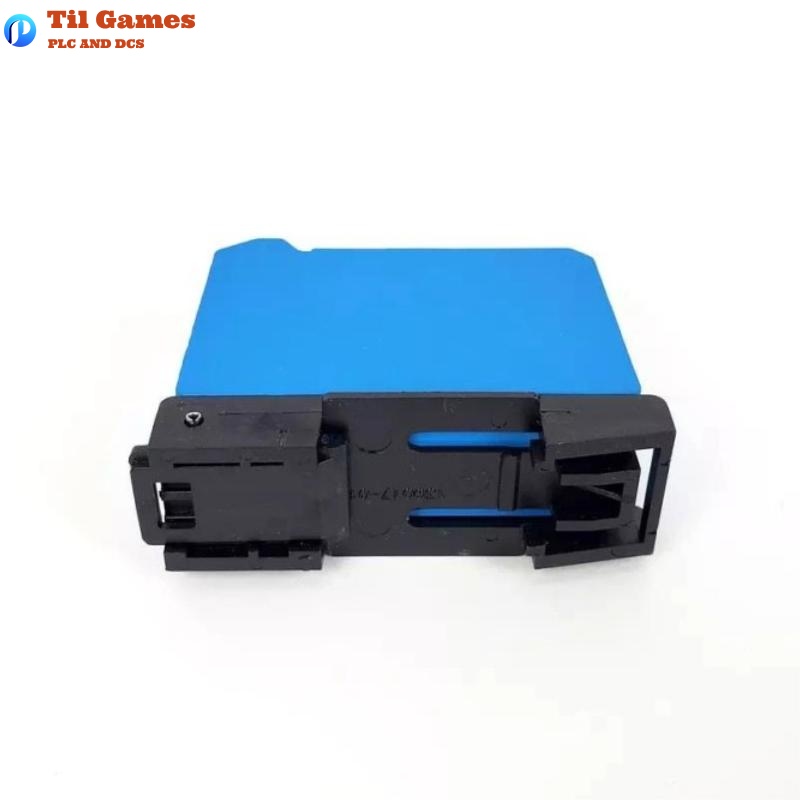

A4: Yes. The 330780-91-00 model is specifically designed for DIN rail installation.
Q5: Is the probe suitable for high-temperature environments?
A5: Yes. The probe supports temperatures up to +177°C, ideal for industrial applications.
Q6: Does the system have electromagnetic interference resistance?
A6: Yes. It includes enhanced RFI/EMI immunity and meets CE certification requirements.
Q7: What is the maximum allowable cable length?
A7: The combined probe and extension cable length must not exceed 9.0 meters. Field wiring to monitor can extend up to 305 meters.
Q8: Are there hazardous area certifications available?
A8: Yes. The sensor is certified for intrinsic safety (ia) and non-incendive (nA/ec) operation, supporting Zone 0 and Zone 2 classifications.
