Technical Specifications
| Parameter | Description |
|---|---|
| Total Length | 9.0 meters |
| Total Weight | 0.255 kg |
| Linear Range | 12.7 mm (500 mils) |
| Average Scale Factor | 0.787 V/mm (20 mV/mil) |
| Max Frequency Response | 0 – 2.7 kHz (+0, -3 dB) |
| Recommended Minimum Target Size | 61 mm (2.4 in) diameter |
| Power Supply Range | -17.5 Vdc to -26 Vdc (without barriers) |
| Power Consumption | Maximum 12 mA |
| Operating Temp Range (Probe) | -35°C to +200°C (short-term +250°C) |
| Operating Temp Range (Proximitor) | -51°C to +100°C |
| Cable Type | 75 Ω triaxial high-temp FluidLoc cable |
| Probe Material | PEEK tip, AISI 304 SST case |
| Proximitor Housing Material | A380 aluminum |
| Connector Material | Gold-plated brass and beryllium copper |
| Minimum Bend Radius | 25.4 mm |
| Humidity | 100% condensing (non-submersible) |
| System Compatibility | Replaces 7200 25 mm, 7200 35 mm & DE Integral systems |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary application of the 330850-90-CN sensor?
A1: It is used to measure Differential Expansion (DE) in mid-size to large steam turbine generators.
Q2: Is this sensor suitable for high-temperature environments?
A2: Yes, the probe operates continuously at 200°C and can withstand up to 250°C intermittently.
Q3: Can this sensor replace older Bently Nevada 7200 series components?
A3: Yes, it is designed to be physically and electrically compatible with legacy systems.
Q4: What is the output of the Proximitor Sensor?
A4: The output is 0.787 V/mm (20 mV/mil).
Q5: What is the minimum recommended target size?
A5: A flat target with a diameter of 61 mm or larger is recommended.
Q6: Is this model certified for hazardous area use?
A6: Yes, it has CSA, ATEX, and IECEx approvals for hazardous environments.
Q7: Are special tools required for installation?
A7: No, it features ClickLoc connectors and SpringLoc terminals for easy, tool-free installation.

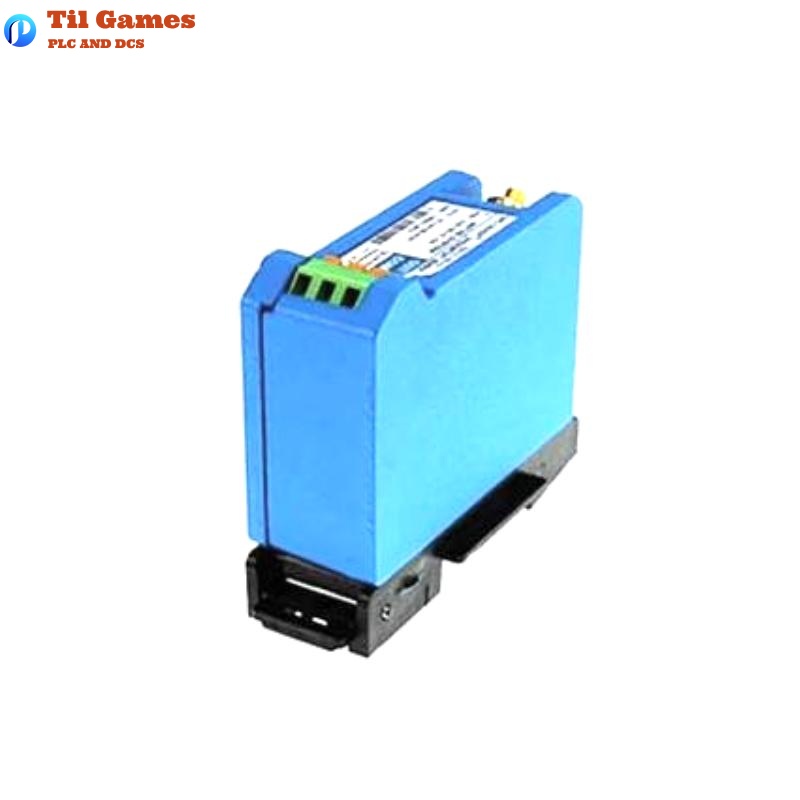

Q8: What mounting options are available for the Proximitor Sensor?
A8: It supports both DIN-rail and traditional panel mounting.
