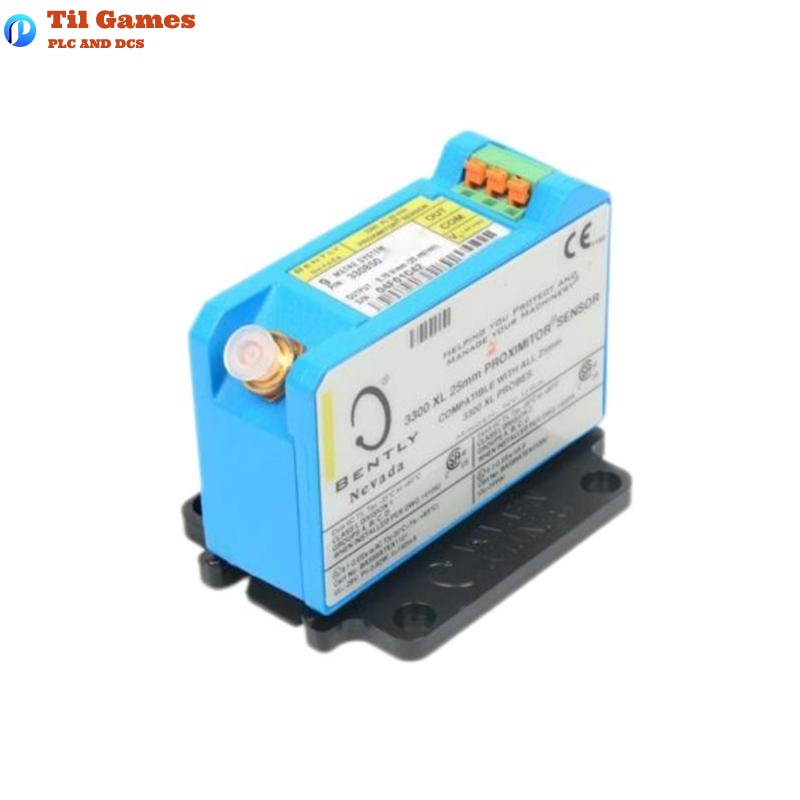

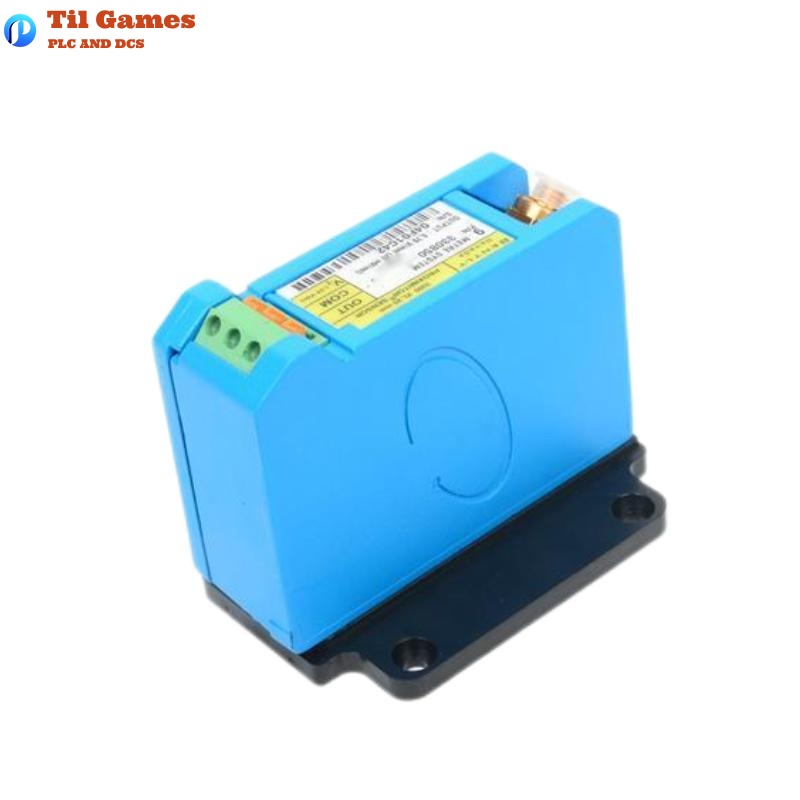

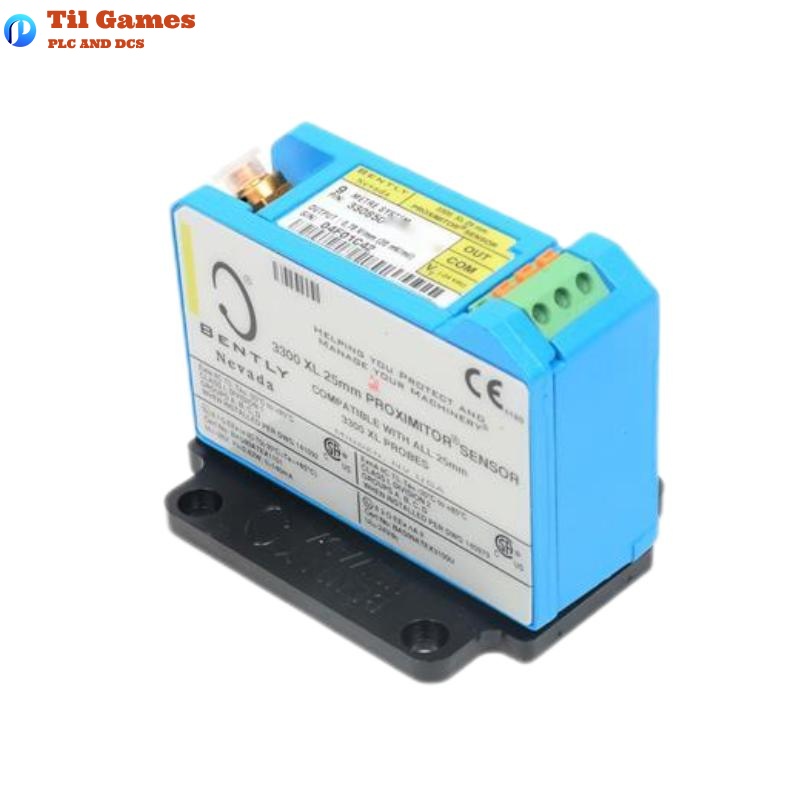

Bently Nevada 330850-91-CN 3300 XL 25 mm Proximitor Sensor

FAQs

Q1: What is the output voltage scale factor of the 330850-91-CN sensor?
A1: The scale factor is 0.787 V/mm (20 mV/mil).

Q2: What is the system’s linear range?
A2: The linear range is 12.7 mm (0.5 in), from 0.63 mm to 13.33 mm.

Q3: What type of cable insulation is used in the probe and extension cables?
A3: Both use PFA insulated 75 Ω triaxial FluidLoc cables.

Q4: Is this sensor suitable for high-temperature environments?
A4: Yes, the probe withstands up to 200°C continuously and 250°C for short durations.

Q5: What is the required power supply range?
A5: It requires -17.5 Vdc to -26 Vdc, consuming up to 12 mA without barriers.

Q6: What is the recommended target material for calibration?
A6: AISI 4140 steel is the default target material.

Q7: What is the frequency response of the sensor system?
A7: It supports 0 to 2.7 kHz with a typical ±3 dB response.

Q8: How is field wiring handled for long distances?
A8: Use shielded triad cables up to 305 meters, considering signal roll-off at high frequencies.

3300 XL 25 mm Proximitor Sensor 330850-91-CN Bently Nevada
