Technical Specifications
| Item | Specification |
|---|---|

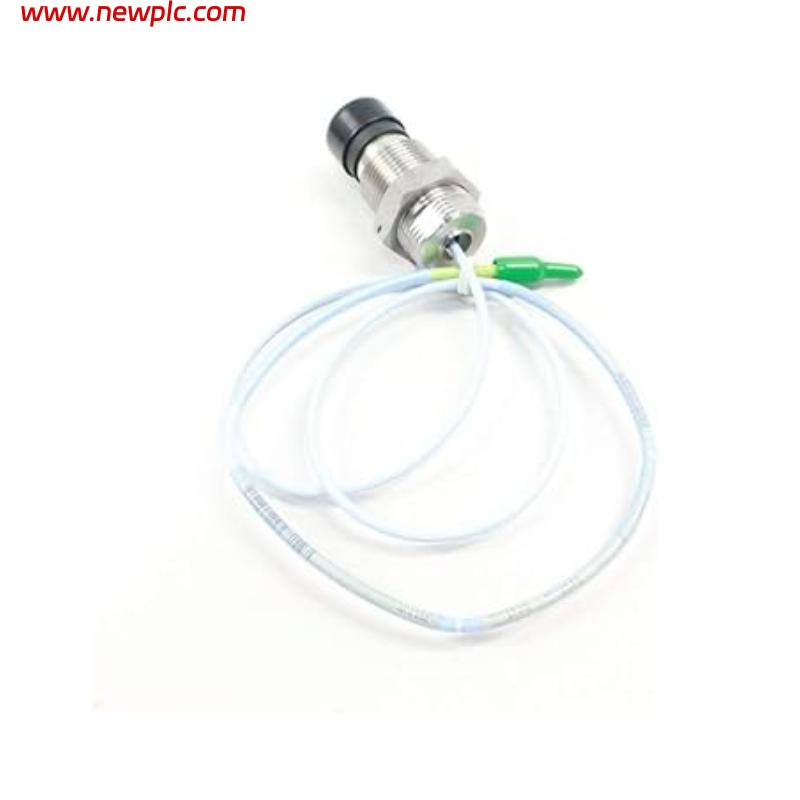

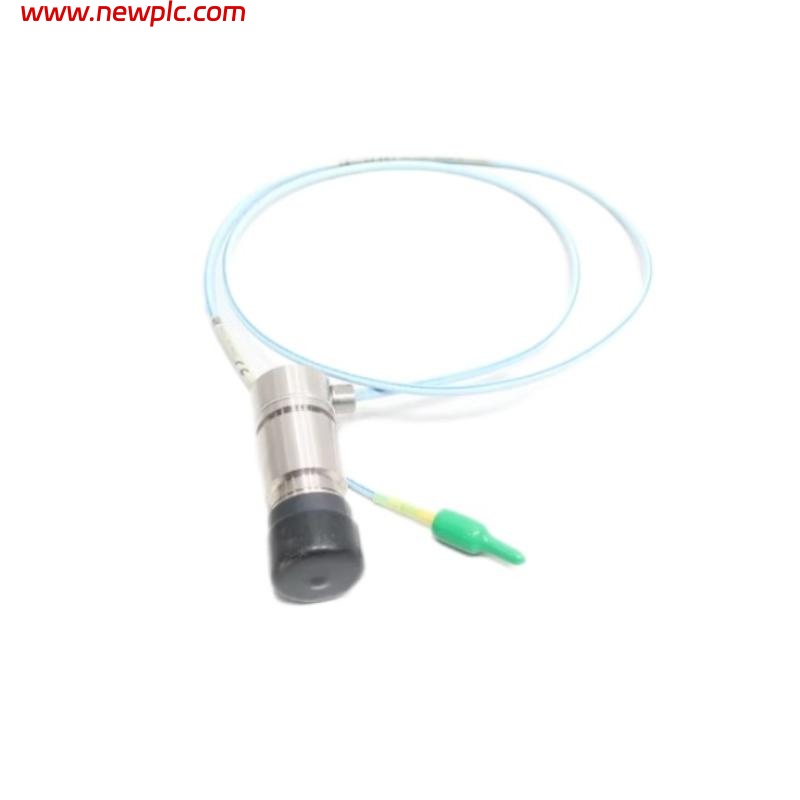

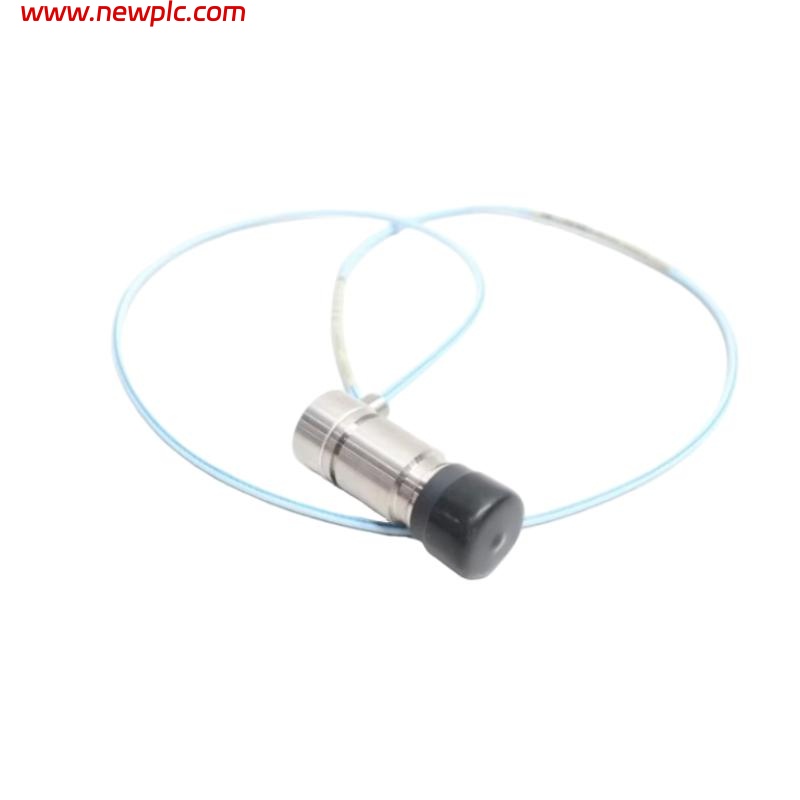

| Model | Bently Nevada 330851-02-000-070-10-00-CN |
| Series | 3300 XL 25 mm Proximity Probe |
| Probe Type | Non-contacting eddy current proximity probe |
| Measurement Range | 0 to 12.7 mm (0 to 500 mils) |
| Linear Range | 0.25 to 12.7 mm |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Probe Tip Diameter | 25 mm |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -35°C to +200°C |
| Probe Material | Stainless steel |
| Cable Type | Integral coaxial cable |
| Mounting Thread | M30 × 1.5 |
| Power Supply | -24 V DC nominal |
| Compatible Drivers | 3300 XL Proximitor Sensor (Model 3300 5 mm, 8 mm, 11 mm, 25 mm systems) |
| Dimensions | Total Length :1.0 meter |
| Weight | 0.23 kg |
FAQ
FAQ
Q1: What type of machinery is this probe suitable for?
A1: It is suitable for large rotating machinery such as turbines, compressors, and generators for shaft vibration and displacement monitoring.
Q2: Is the probe compatible with older Proximitor models?
A2: Yes, it is compatible with the 3300 series Proximitor sensors, including 3300 XL models.
Q3: What is the typical mounting method?
A3: The probe is typically mounted using an M30 × 1.5 threaded connection to a probe holder or machine housing.
Q4: What is the operating temperature range?
A4: The operating temperature range is -35°C to +177°C, ensuring reliable performance in harsh environments.
Q5: What is the measurement sensitivity?
A5: The sensitivity is 7.87 V/mm (200 mV/mil).
Q6: Is the cable replaceable?
A6: No, the cable is integral to the probe to maintain signal integrity and minimize noise.
Q7: Does it require a specific installation orientation?
A7: The probe should be mounted perpendicular to the shaft surface for optimal measurement accuracy.
Q8: Is it suitable for hazardous environments?
A8: Explosion-proof versions are available for use in hazardous or flammable gas environments.
