Technical Specifications
| Item | Specification |
|---|---|
| Model | Bently Nevada 330881-28-00-165-07-02 |

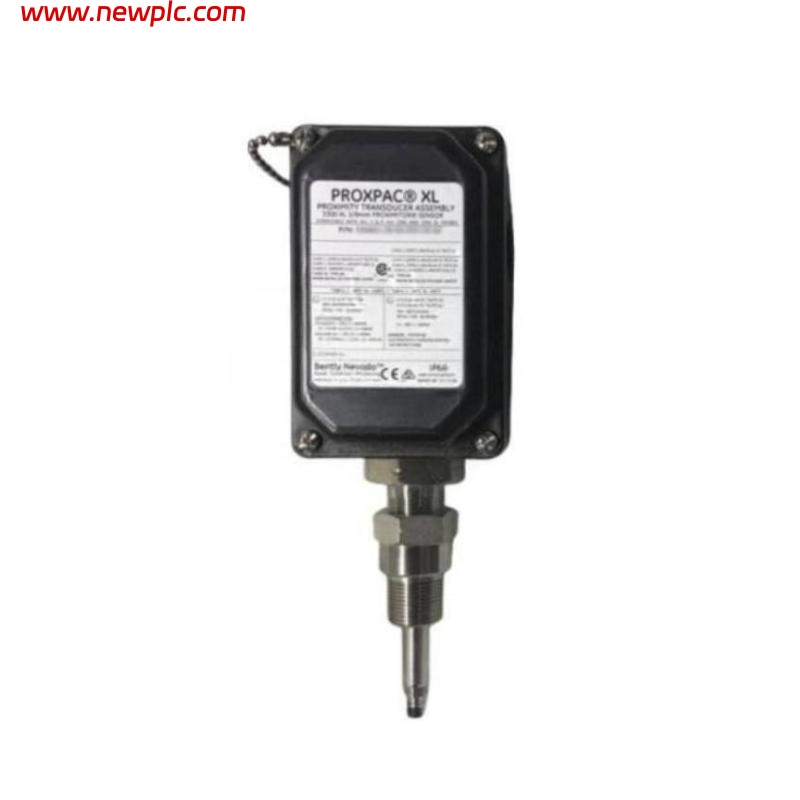

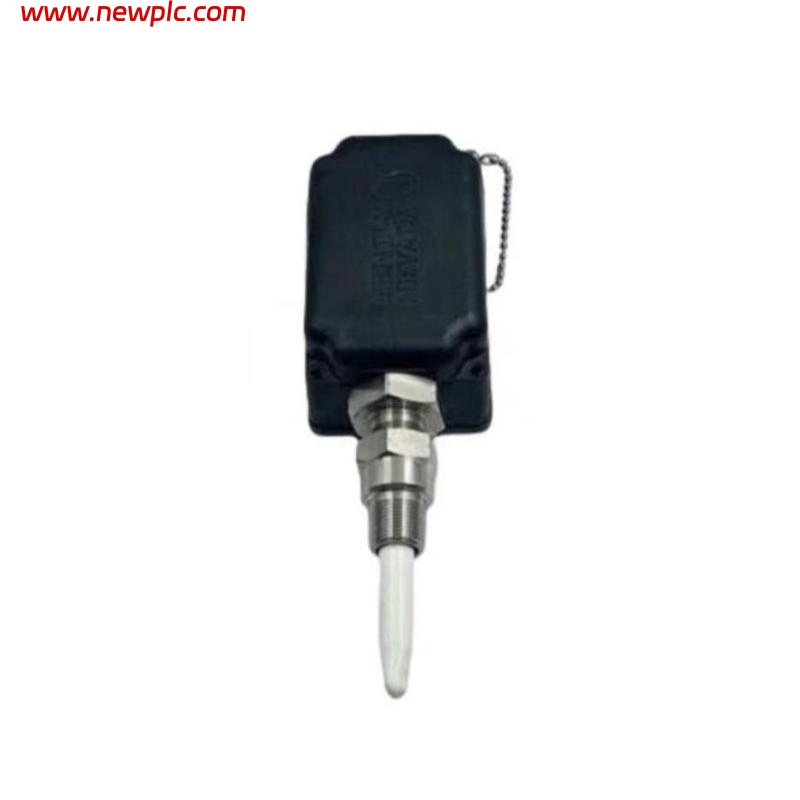

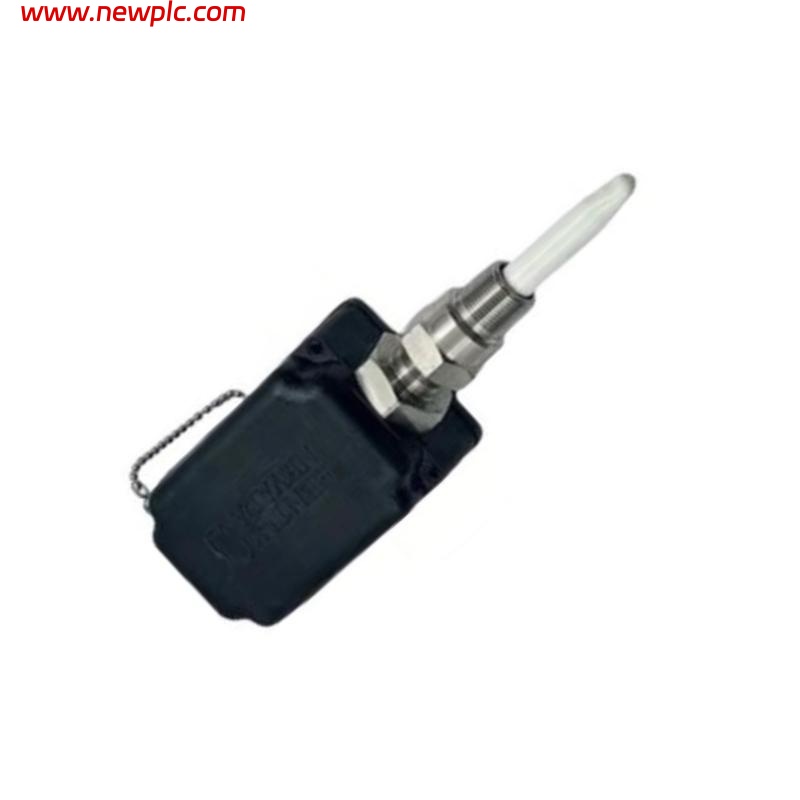

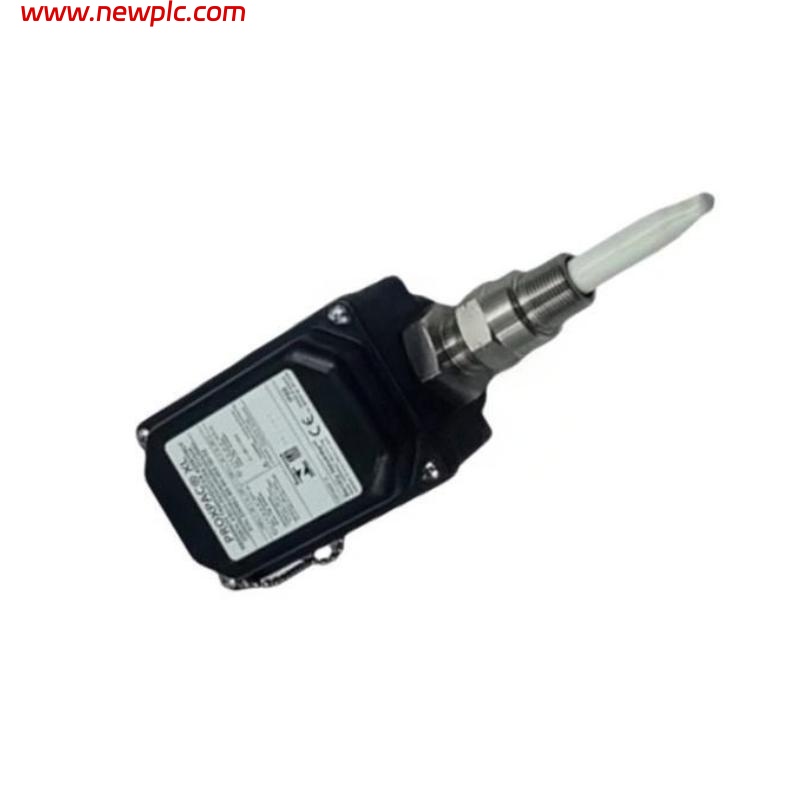

| Product Type | PROXPAC XL Proximity Sensor Assembly |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Probe Penetration | 165 mm |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 304 Stainless Steel |
| Cable Type | 1 m, 75-ohm triaxial, FEP insulated |
| Power Requirements | -17.5 Vdc to -26 Vdc, 12 mA max (without barriers); -23 Vdc to -26 Vdc (with barriers) |
| Supply Sensitivity | <2 mV change per volt input change |
| Output Resistance | 50 Ω |
| Operating Temperature | -51°C to +177°C |
| Ingress Protection | Type 4X, IP66 |
| Dimensions | 91.4 x 144.8 mm |
| Weight | 1.44 kg |
FAQ
FAQ
Q1: What is the purpose of the Bently Nevada 330881-28-00-165-07-02?
A1: It is used for vibration monitoring and precise shaft position measurement in industrial machinery.
Q2: What is the significance of the 8 mm probe?
A2: The 8 mm probe allows accurate measurement of shaft displacement for reliable machinery monitoring.
Q3: What does the 165 mm probe penetration mean?
A3: It is the length of the probe extending into the machine, determining measurement range and sensitivity.
Q4: Does this model include a standoff adapter?
A4: No, this model does not include a standoff adapter.
Q5: What type of mounting thread is used?
A5: The sensor uses a 3/4-14 NPT mounting thread.
Q6: What materials are used for the housing and probe?
A6: Housing and probe tip are PPS; probe case is AISI 304 stainless steel.
Q7: What are the power requirements?
A7: -17.5 Vdc to -26 Vdc at 12 mA max (without barriers), or -23 Vdc to -26 Vdc with barriers.
Q8: What is the operating temperature range?
A8: -51°C to +177°C.
