Technical Specifications
| Item | Specification |
|---|---|

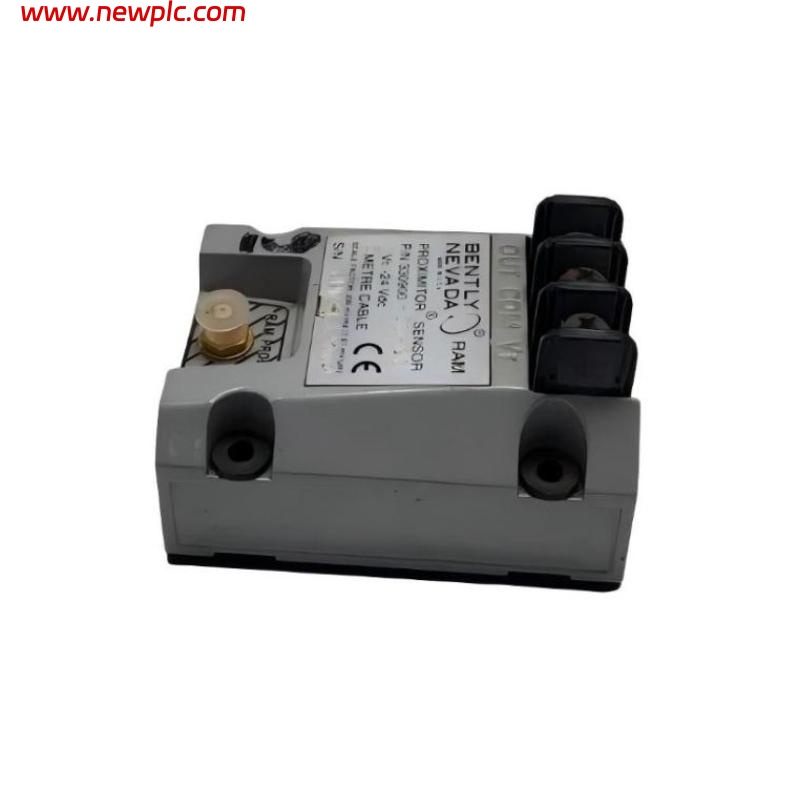

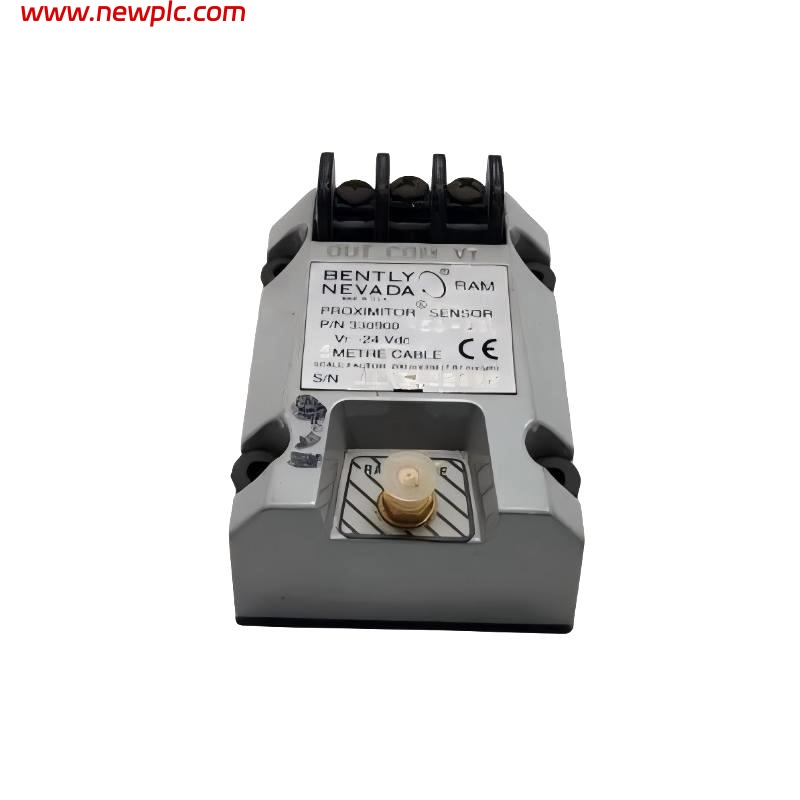

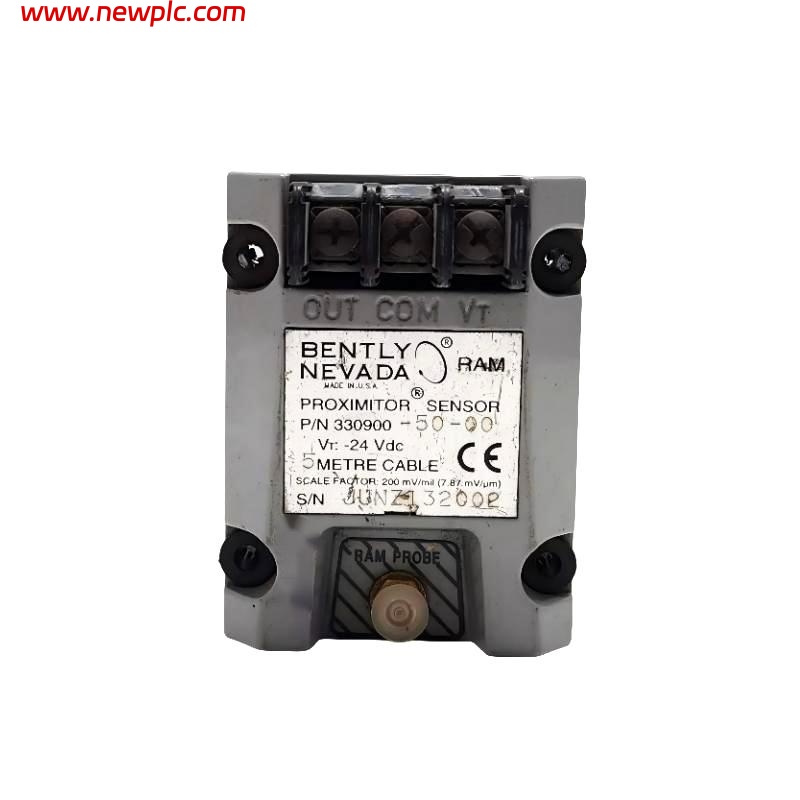

| Model | Bently Nevada 330900-50-00 |
| Product Type | Proximity Sensor |
| Series | PROXPAC XL / 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Probe Penetration | 50 mm |
| Mounting Thread | 1/2-20 UNF |
| Housing Material | Stainless Steel |
| Probe Tip Material | Stainless Steel |
| Probe Case Material | Stainless Steel |
| Cable Type | 1 m, 75-ohm triaxial, FEP insulated |
| Power Requirements | -17.5 Vdc to -26 Vdc, 12 mA max (without barriers); -23 Vdc to -26 Vdc (with barriers) |
| Supply Sensitivity | <2 mV change per volt input change |
| Output Resistance | 50 Ω |
| Operating Temperature | -51°C to +177°C |
| Ingress Protection | Type 4X, IP66 |
| Dimensions | 120 × 100 × 50 mm |
| Weight | 0.12 kg |
FAQ
FAQ
Q1: What is the purpose of the Bently Nevada 330900-50-00 Proximity Sensor?
A1: It is used for vibration monitoring and shaft position measurement in industrial machinery.
Q2: What probe type does it use?
A2: The sensor uses an 8 mm proximity probe for precise shaft displacement measurement.
Q3: What is the probe penetration length?
A3: The probe penetration is 50 mm, which affects the measurement range and sensitivity.
Q4: What mounting thread does it use?
A4: The sensor uses a 1/2-20 UNF threaded mount.
Q5: What materials are used in the construction?
A5: Housing, probe tip, and probe case are all made of stainless steel.
Q6: What are the power requirements?
A6: -17.5 Vdc to -26 Vdc at 12 mA max without barriers, or -23 Vdc to -26 Vdc with barriers.
Q7: What are the sensor dimensions and weight?
A7: Dimensions: 120 × 100 × 50 mm; Weight: 0.12 kg.
Q8: What is the operating temperature range?
A8: -51°C to +177°C.
