Technical Specifications
| Item | Specification |
|---|---|

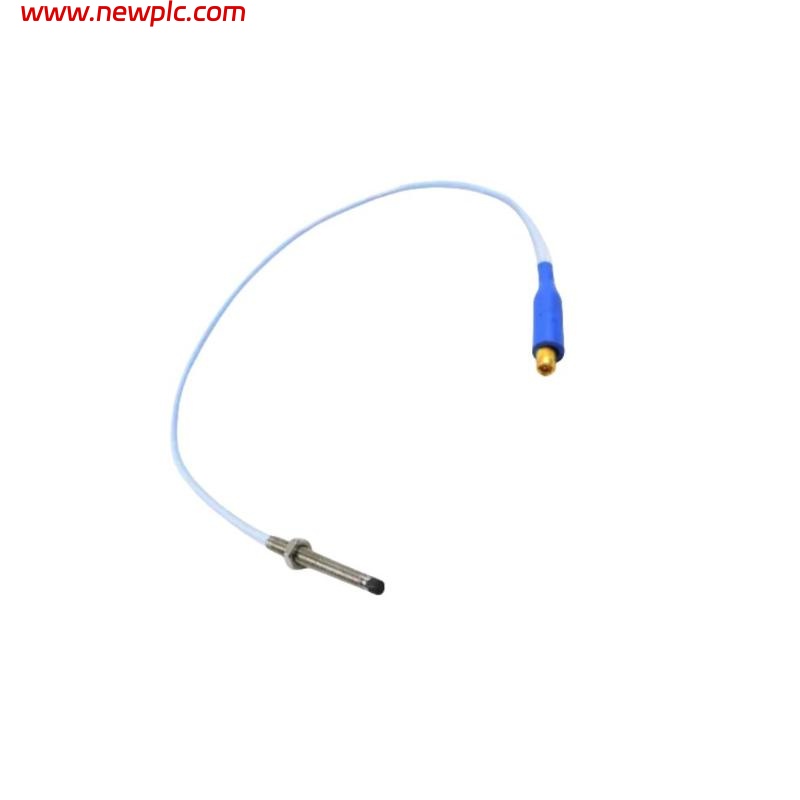

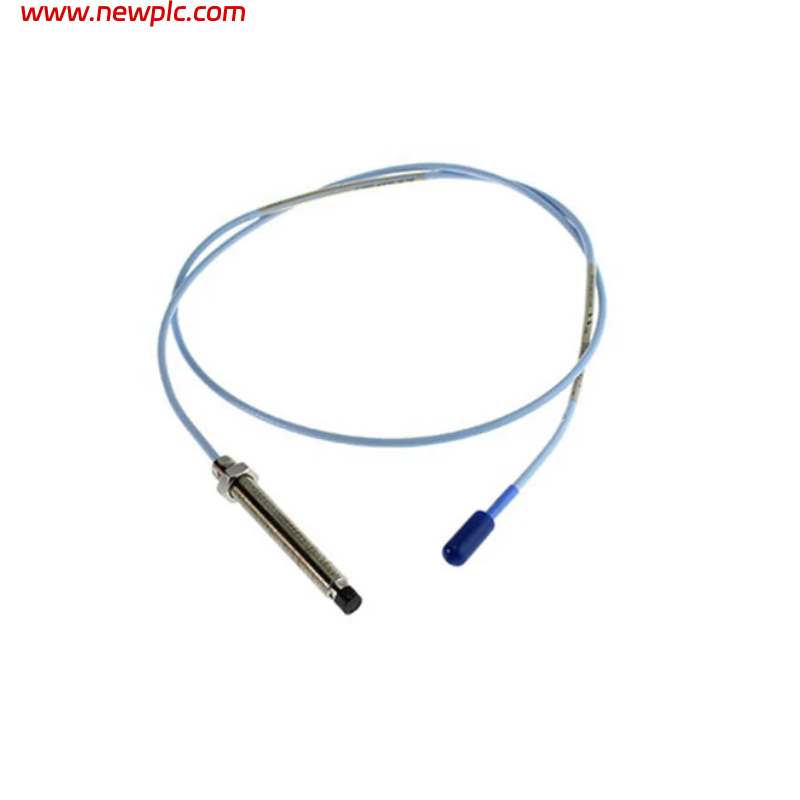

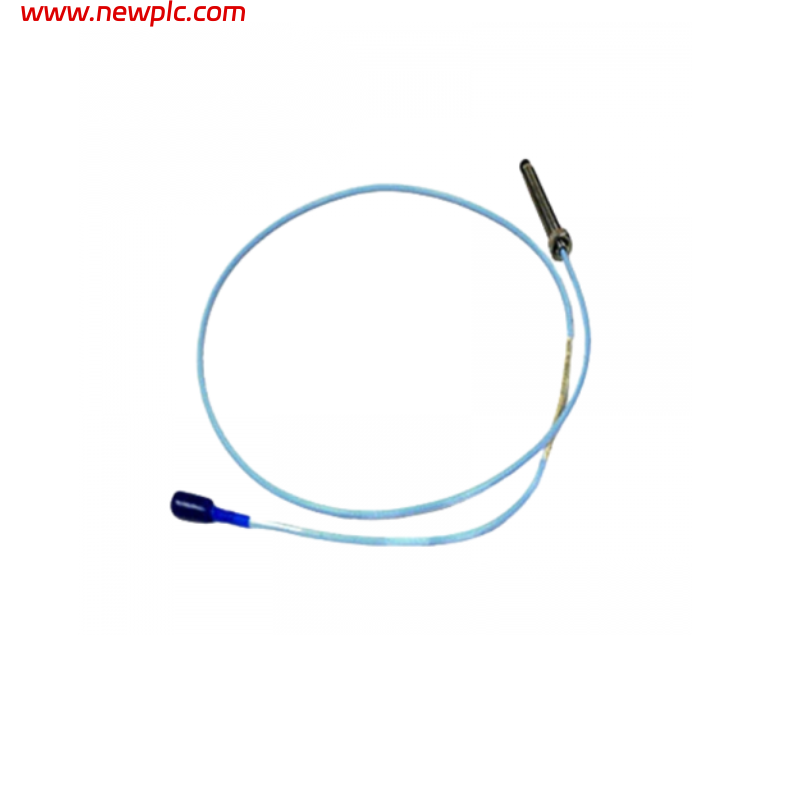

| Model | Bently Nevada 330905-00-05-10-12-CN |
| Type | 3300 XL Proximitor Sensor System |
| Product Category | Machinery Condition Monitoring |
| Product Family | 3300 XL Series |
| Function | Shaft vibration, displacement, and position measurement |
| Measurement Principle | Eddy-current proximity sensing |
| Probe Size | 5 mm |
| Measurement Range | ±2 mm |
| Sensitivity | Standard for 5 mm 3300 XL probes |
| Frequency Response | Suitable for continuous vibration and displacement monitoring |
| Output Signal | Conditioned analog voltage proportional to displacement |
| Housing Material | Stainless steel |
| Protection Rating | Industrial sealed construction |
| Cable Length | 12 m coaxial cable |
| Connector Type | Standard 3300 XL Proximitor interface |
| Operating Temperature Range | –35 °C to +177 °C |
| Application Environment | Industrial rotating machinery |
| Regional Version | CN |
| Dimensions | 5 mm probe diameter, 12 m cable |
| Weight | 0.60 kg |
FAQ
FAQ
Q1: What is the primary function of the 330905-00-05-10-12-CN sensor?
It monitors shaft vibration, displacement, and axial position in rotating machinery.
Q2: What sensing technology does this model use?
It uses eddy-current proximity sensing to detect shaft movement and displacement.
Q3: What is the probe diameter?
The probe diameter is 5 mm.
Q4: What is the measurement range of this sensor?
The sensor supports a measurement range of ±2 mm.
Q5: How is the sensor connected to the monitoring system?
It is supplied with a 12 m integral coaxial cable and a standard 3300 XL connector.
Q6: Can this sensor operate in harsh industrial conditions?
Yes, the stainless-steel housing and sealed design provide reliability in oil, dust, and vibration environments.
Q7: What is the operating temperature range?
The operating range is –35 °C to +177 °C.
Q8: What are the physical dimensions and weight of the sensor system?
The probe diameter is 5 mm, the cable length is 12 m, and the weight is 0.60 kg.
