Technical Specifications
| Item | Specification |
|---|---|

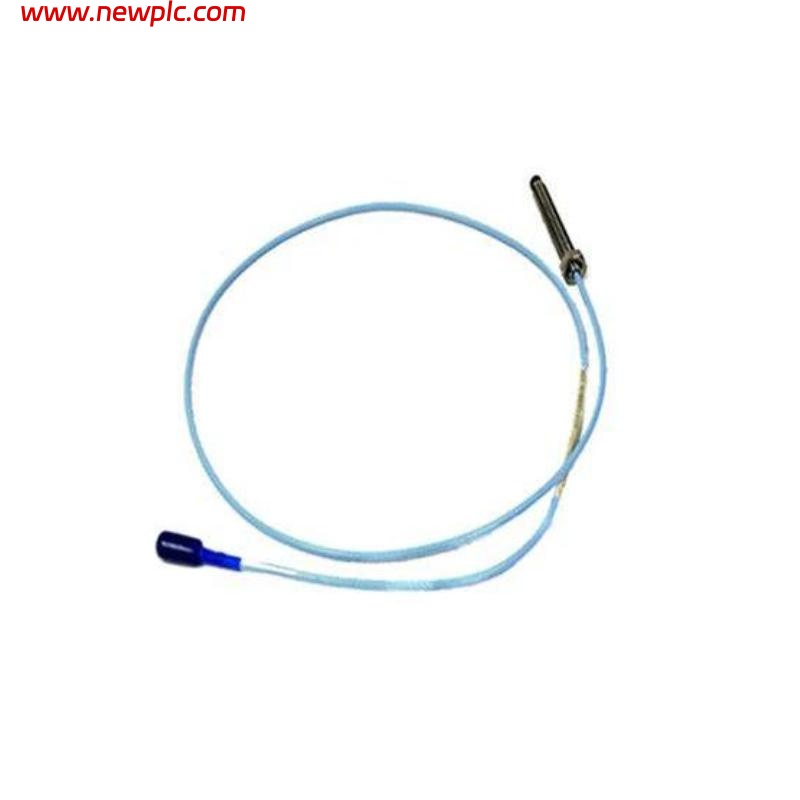

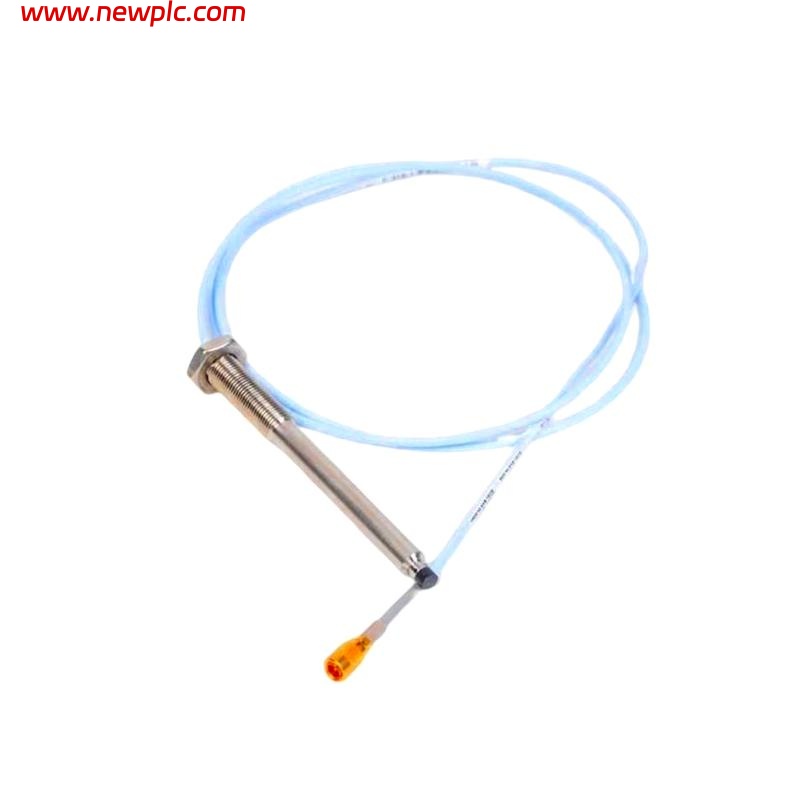

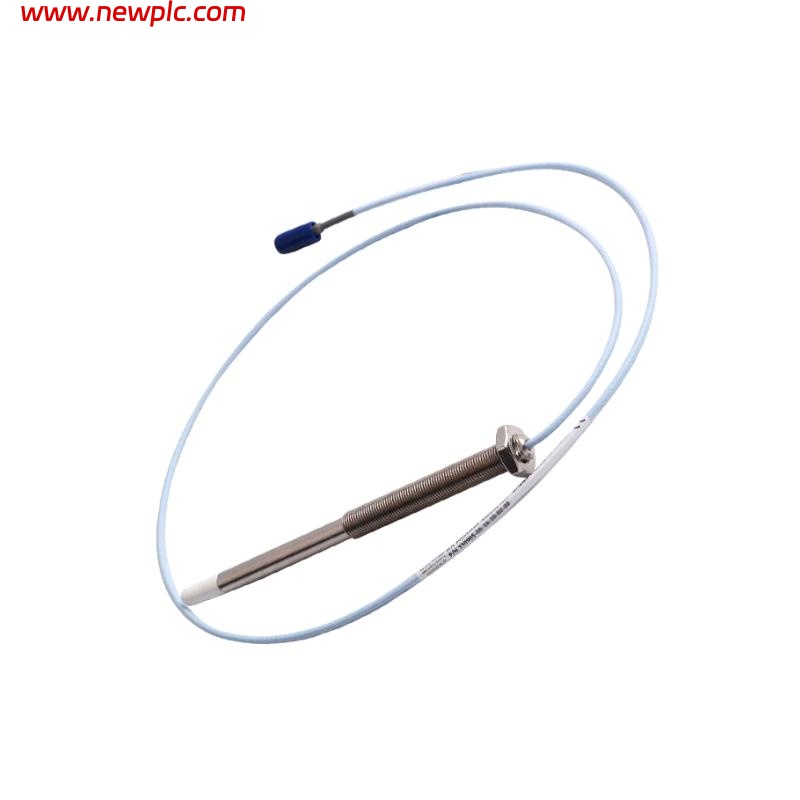

| Model | Bently Nevada 330905-00-05-50-02-00 |
| Type | 3300 XL Proximitor Sensor System |
| Product Category | Machinery Condition Monitoring |
| Product Family | 3300 XL Series |
| Function | Shaft vibration, displacement, and position measurement |
| Measurement Principle | Eddy-current proximity sensing |
| Probe Size | 8 mm |
| Measurement Range | ±2 mm |
| Sensitivity | Standard 3300 XL 8 mm system sensitivity |
| Frequency Response | Suitable for continuous vibration and displacement monitoring |
| Output Signal | Conditioned analog voltage proportional to displacement |
| Housing Material | Stainless steel |
| Protection Rating | Industrial sealed construction |
| Cable Length | 50 m coaxial cable |
| Connector Type | Standard 3300 XL Proximitor interface |
| Operating Temperature Range | –35 °C to +177 °C |
| Application Environment | Industrial rotating machinery |
| System Compatibility | 3300 XL Proximitor Sensor |
| Dimensions | 8 mm probe diameter, 50 m cable |
| Weight | 1.90 kg |
FAQ
FAQ
Q1: What is the function of the 330905-00-05-50-02-00 system?
It is used to measure shaft vibration, displacement, and axial position in rotating machinery.
Q2: What sensing technology does this product use?
It uses eddy-current proximity sensing technology.
Q3: What probe size is included in this model?
This system uses an 8 mm proximity probe.
Q4: What measurement range does it support?
The supported displacement range is ±2 mm.
Q5: What type of output signal is provided?
It provides a conditioned analog voltage output proportional to displacement.
Q6: Is this model suitable for long cable installations?
Yes, it includes a 50 m coaxial cable designed for long-distance installations.
Q7: Can the sensor operate in harsh industrial environments?
Yes, the stainless-steel housing and sealed construction support reliable operation in industrial conditions.
Q8: What are the physical dimensions and weight of this system?
The probe diameter is 8 mm, the cable length is 50 m, and the weight is 1.90 kg.
