Technical Specifications
| Item | Description |
|---|---|
| Product Model | Bently Nevada 330909-00-60-10-02-CN |

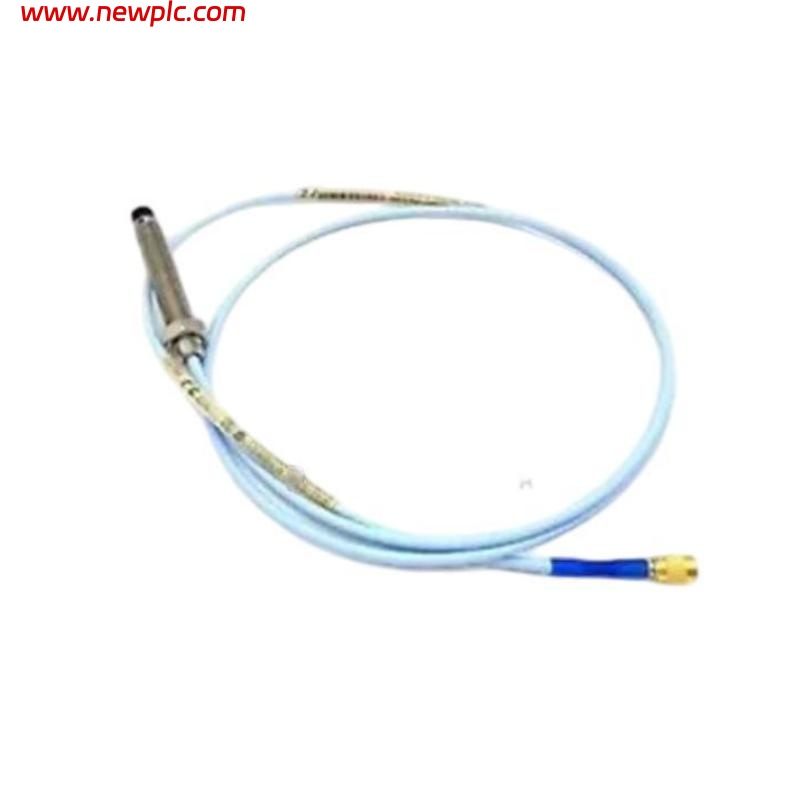

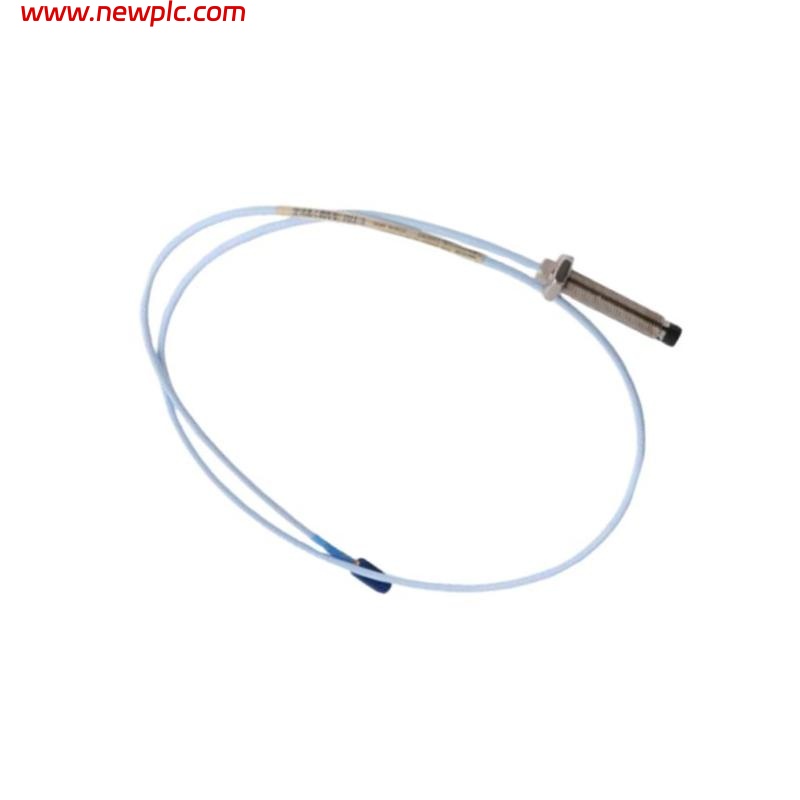

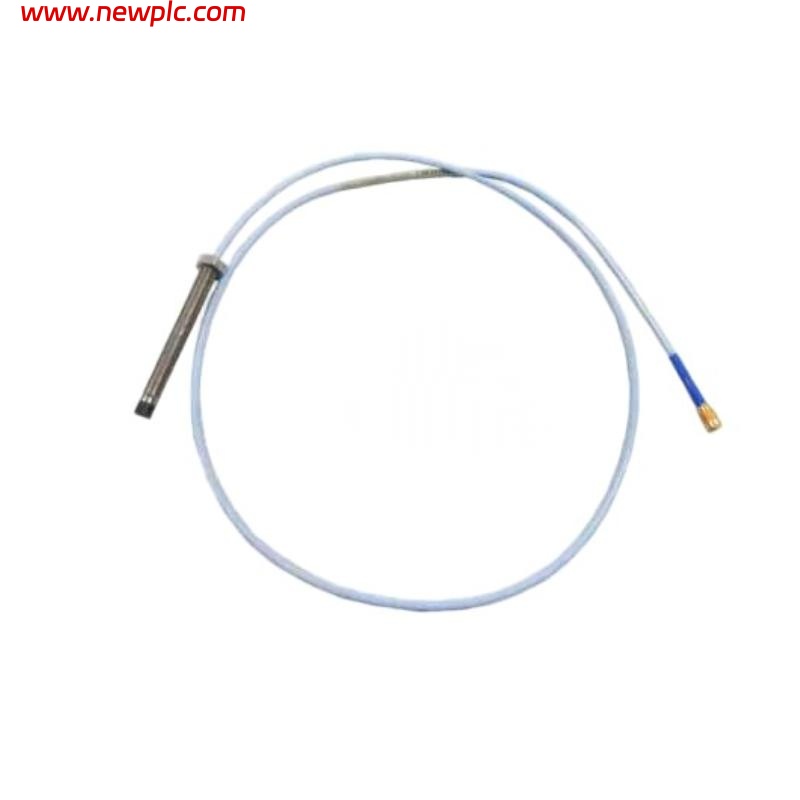

| Product Type | 3300 NSv Proximity Probe |
| Application | Non-contact vibration and displacement measurement in small and fluid-film bearing machines |
| Probe Tip Diameter | 5 mm (NSv series) |
| Probe Length | 60 mm |
| Cable Length | 1.0 m |
| Connector Type | Miniature coaxial connector, reverse thread (China version) |
| Compatible Proximitor | 3300 NSv Proximitor Sensor |
| Linear Range | 2 mm (80 mils) |
| Sensitivity | –7.87 V/mm (–200 mV/mil) |
| System Accuracy | ±5% typical over full linear range |
| Frequency Response | 0 to 8 kHz (–3 dB) |
| Gap Voltage | –1 VDC to –14 VDC |
| Operating Temperature | –35 °C to +177 °C (probe) |
| Storage Temperature | –40 °C to +177 °C |
| Pressure Rating | 10,000 psi (68.9 MPa) with appropriate housing |
| Housing Material | Stainless steel |
| Environmental Protection | IP65 (with proper installation) |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.15 kg |
FAQ
FAQ
Q1: What is the Bently Nevada 330909-00-60-10-02-CN mainly used for?
It is mainly used for shaft vibration and displacement monitoring in small high-speed machines, especially fluid-film bearing equipment.
Q2: What is the difference between the CN version and the standard version?
The CN version is manufactured and certified for the Chinese market, with the same core performance as the standard model.
Q3: What proximitor sensor is compatible with this probe?
It is designed to be used with the Bently Nevada 3300 NSv Proximitor Sensor.
Q4: What is the linear measurement range of this probe?
The probe provides a linear range of 2 mm (80 mils).
Q5: What is the sensitivity of the probe?
It outputs –200 mV/mil (–7.87 V/mm).
Q6: What is the operating temperature range?
The probe can operate reliably between –35 °C and +177 °C.
Q7: Can it withstand high pressure environments?
Yes, with appropriate housing, it can handle up to 10,000 psi (68.9 MPa).
Q8: Is it compatible with the Bently Nevada 3500 system?
Yes, it integrates seamlessly with the Bently Nevada 3500 monitoring system.
