Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 3500/33‑03‑00 ; 149992‑03 |

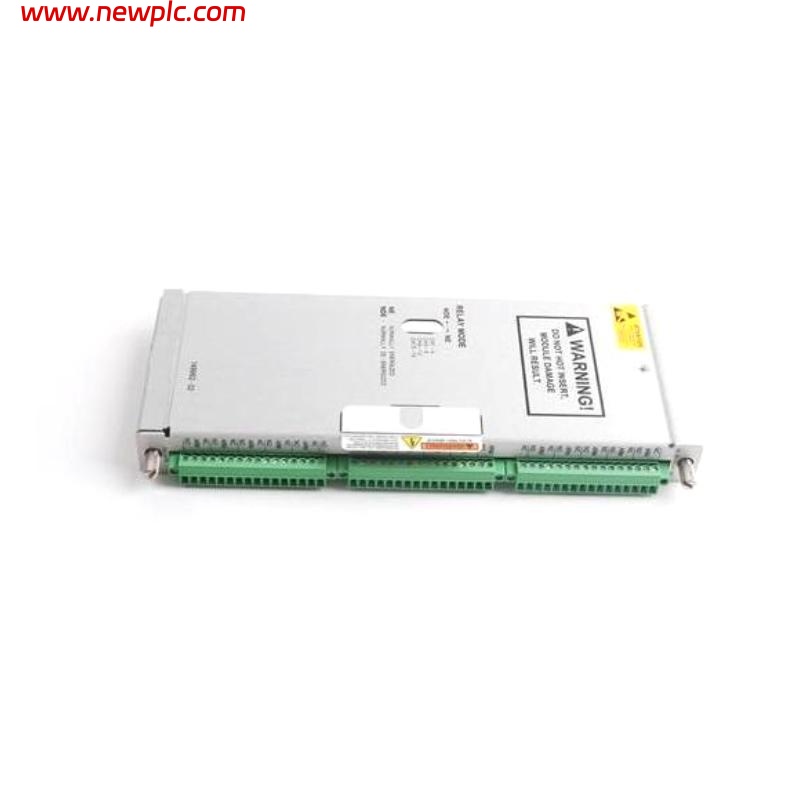

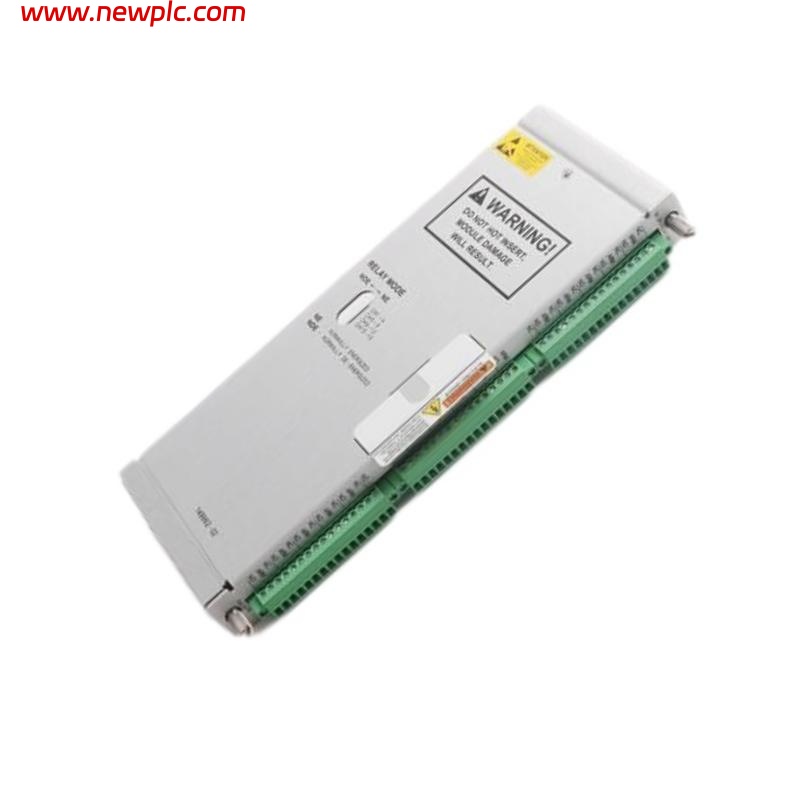

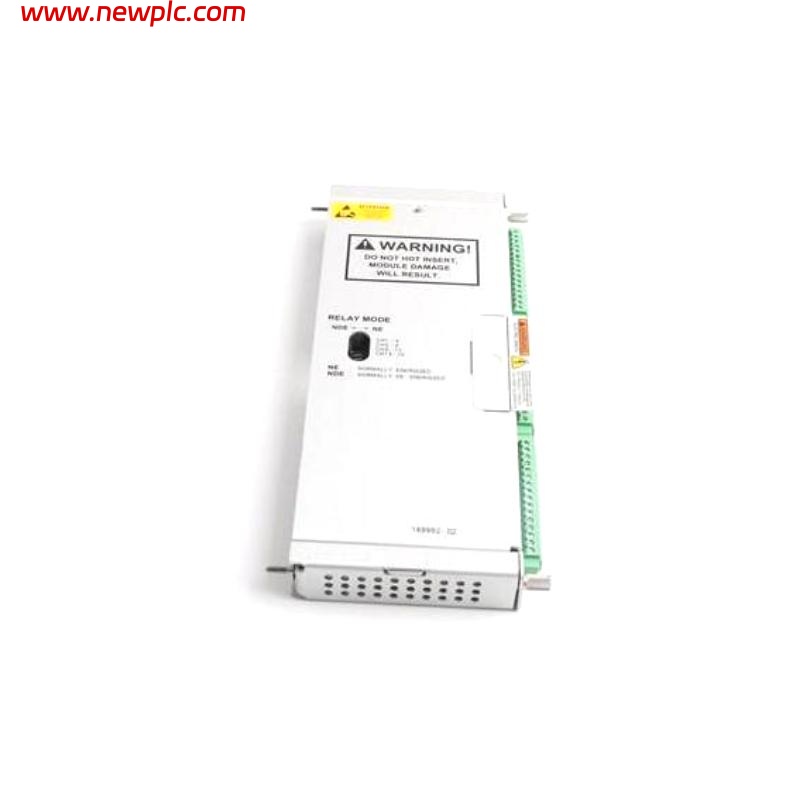

| Product Type | Bently Nevada 3500 Series Monitor / Module |
| Function | Vibration, shaft position, and speed monitoring |
| Module Type | 3500/33 Three-Channel Proximitor Module |
| Channels | 3 |
| Input Type | Proximitor sensor inputs (8 mm/5 mm) |
| Alarm and Trip Capability | Independent alarm/trip per channel |
| Power Requirements | 24 V DC nominal, 1.2 W per channel |
| Dimensions | 19 in rack width ; Height: 4 U (≈7 in / 177.8 mm) ; Depth: ≈9 in (228.6 mm) |
| Operating Temperature Range | 0 °C to +70 °C (32 °F to +158 °F) |
| Storage Temperature Range | ‑40 °C to +85 °C (‑40 °F to +185 °F) |
| Weight | ≈ 2.7 kg |
| Case Material | Sheet steel, powder-coated |
FAQ
FAQ
Q1: What is the purpose of the 3500/33‑03‑00 module?
It monitors vibration and shaft position for machinery protection and diagnostic purposes.
Q2: What do the part numbers 3500/33‑03‑00 and 149992‑03 signify?
3500/33‑03‑00 is the three-channel proximitor module; 149992‑03 is the specific configuration/version of the module.
Q3: How many channels does this module support?
It supports 3 independent channels for proximitor inputs.
Q4: What type of sensors are compatible with this module?
It works with Bently Nevada 3300 XL or standard proximitor sensors (5 mm or 8 mm).
Q5: Does it provide alarm or trip functionality?
Yes, each channel has independent alarm and trip outputs.
Q6: What are the operating temperature limits?
The module operates reliably from 0 °C to +70 °C (32 °F to +158 °F).
Q7: How is this module powered?
It requires 24 V DC nominal and consumes approximately 1.2 W per channel.
Q8: What are the physical dimensions and weight of the module?
Width: 19 in (rack) ; Height: 4 U (≈7 in / 177.8 mm) ; Depth: ≈9 in (228.6 mm) ; Weight: ≈ 2.7 kg.
