Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 3500/40‑01 |

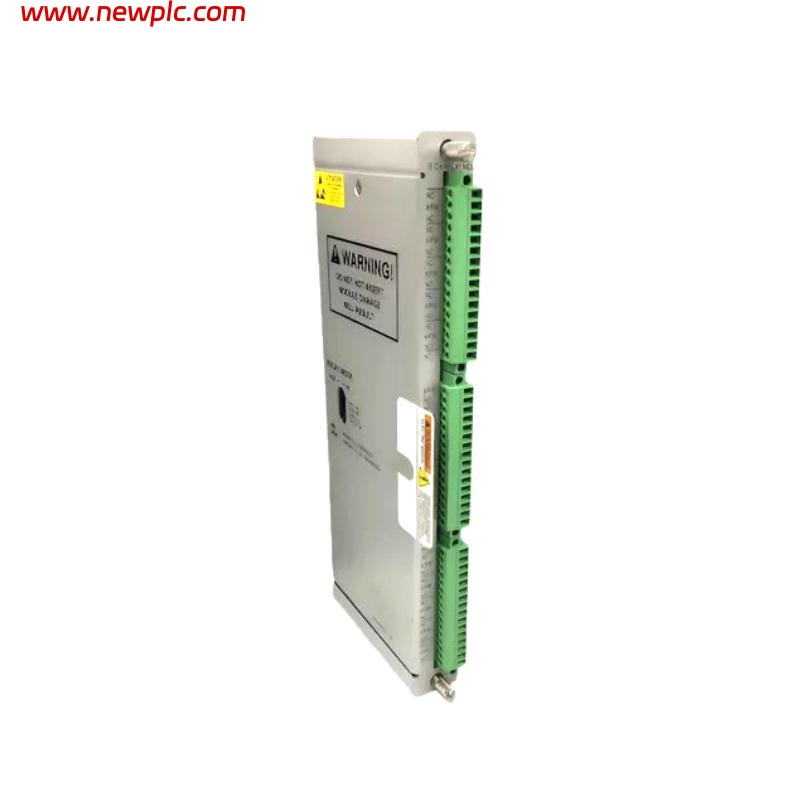

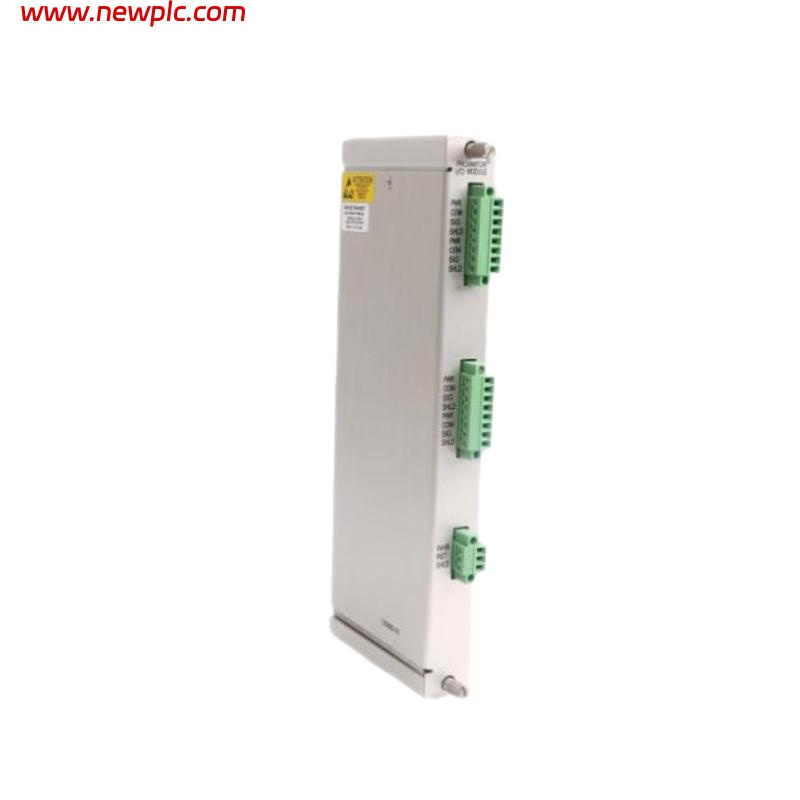

| Product Type | Bently Nevada 3500 Series Monitor / Module |
| Function | Keyphasor / Speed Monitor Module |
| Module Type | 3500/40 Single-Channel Speed / Keyphasor Monitor |
| Channels | 1 |
| Input Type | Proximity sensor or magnetic pickup inputs |
| Alarm and Trip Capability | Speed, phase, and reference pulse outputs |
| Power Requirements | 24 V DC nominal |
| Dimensions | 19 in rack width ; Height: 3 U (≈5.25 in / 133.35 mm) ; Depth: ≈9 in (228.6 mm) |
| Operating Temperature Range | 0 °C to +70 °C (32 °F to +158 °F) |
| Storage Temperature Range | ‑40 °C to +85 °C (‑40 °F to +185 °F) |
| Weight | ≈ 2.0 kg |
| Case Material | Sheet steel, powder-coated |
FAQ
FAQ
Q1: What is the purpose of the 3500/40‑01 module?
It provides speed and phase monitoring for rotating machinery and generates reference pulses.
Q2: What type of sensors can be connected to this module?
It supports proximity sensors or magnetic pickups.
Q3: How many channels does this module support?
It has 1 channel for speed/phase monitoring.
Q4: Does it provide alarm or trip functionality?
Yes, it provides speed, phase, and reference pulse outputs for alarm/trip integration.
Q5: What is the operating temperature range?
The module operates reliably from 0 °C to +70 °C (32 °F to +158 °F).
Q6: What are the power requirements?
It requires 24 V DC nominal.
Q7: What are the physical dimensions of this module?
Width: 19 in (rack) ; Height: 3 U (≈5.25 in / 133.35 mm) ; Depth: ≈9 in (228.6 mm).
Q8: What is the weight of the module?
The module weighs approximately 2.0 kg.
