Technical Specifications
| Item | Specification |
|---|---|

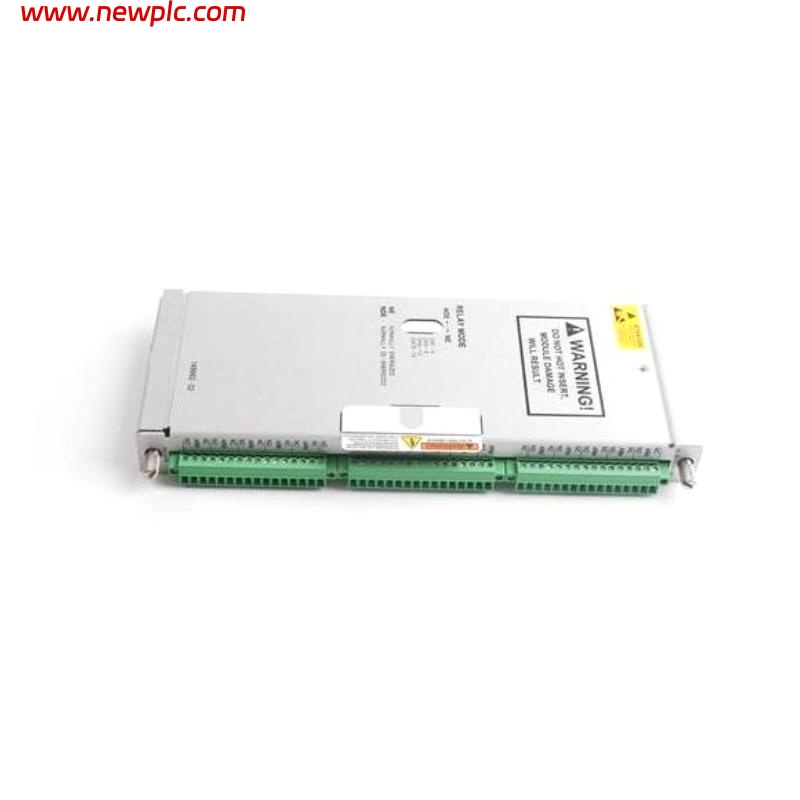

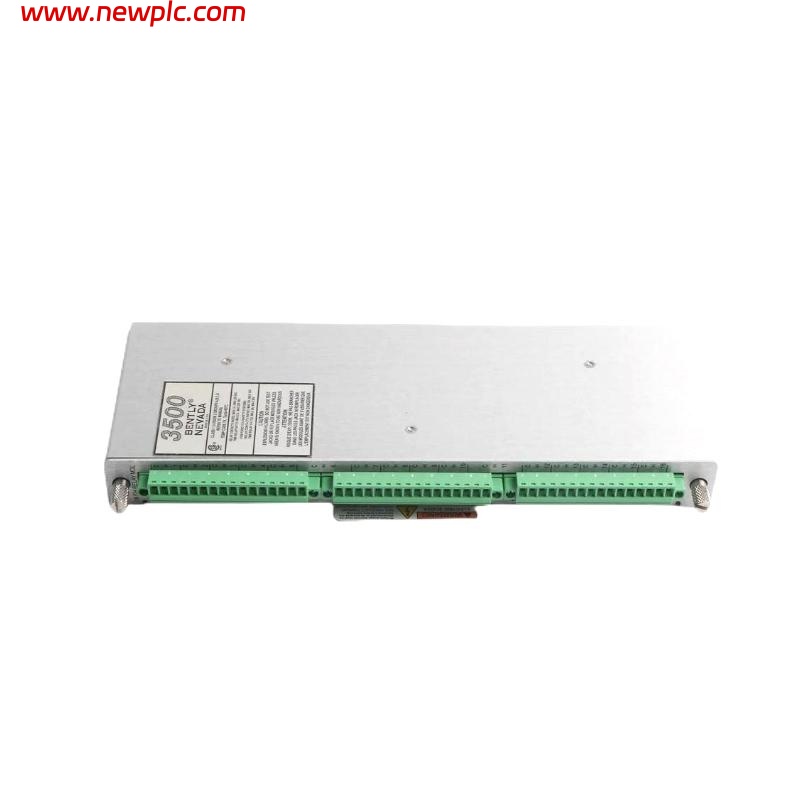

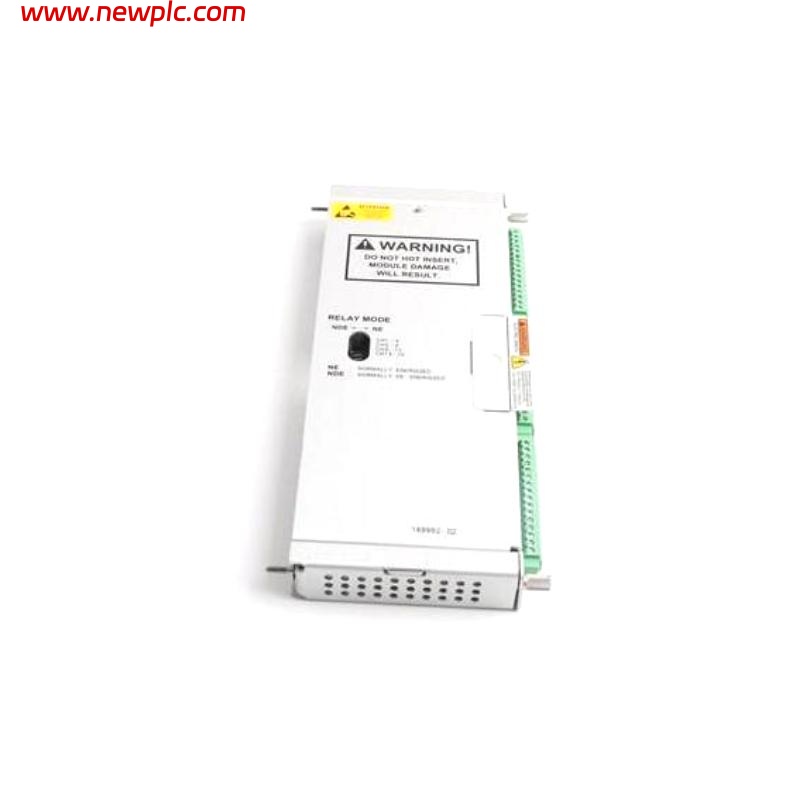

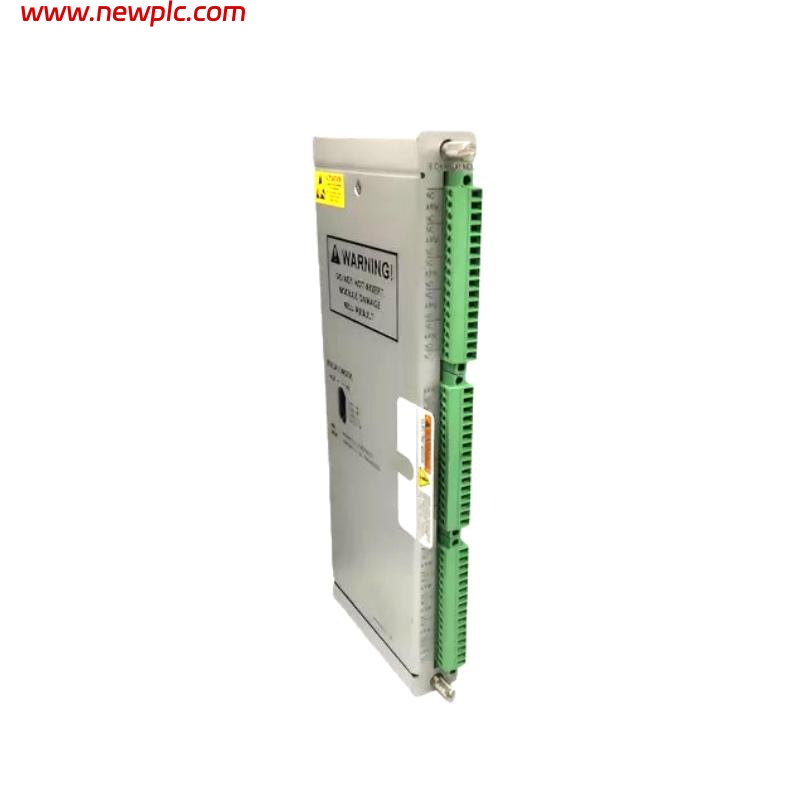

| Model | Bently Nevada 3500/33-03-00 |
| Type | Machinery Protection & Condition Monitoring Input Module |
| Product Category | 3500 Series Monitoring System Module |
| Product Family | Bently Nevada 3500 Machinery Protection System |
| Function | Conditions and inputs signals from vibration and speed sensors for protection and monitoring |
| Channel Type | Multi-purpose analog input channel |
| Supported Sensor Types | Proximity (eddy-current) probes, velocity transducers, speed pickups |
| Input Signal Conditioning | Analog conditioning, filtering, and scaling for machinery vibration and speed |
| Output Interfaces | Process values and alarm/trip logic routed via 3500 rack backplane |
| Protection Functions | Support for machinery protection thresholds (alert and trip) when configured in system software |
| Power Supply | Powered from the 3500 rack backplane |
| Isolation | Internal isolation between sensor inputs and logic circuits |
| Status Reporting | Module status reported through system interface; often with front rack LEDs |
| Mounting Method | 3500 rack slot installation |
| Operating Temperature Range | 0 °C to +60 °C (typical industrial monitoring environment) |
| Application Environment | Rotating machinery such as turbines, compressors, generators, and pumps |
| Compatibility | Bently Nevada 3500 monitoring system racks and related modules |
| Dimensions | Approx. 160 mm (H) × 20 mm (W) × 120 mm (D) (standard 3500 module form) |
| Weight | Approximately 0.25 kg |
FAQ
FAQ
Q1: What is the primary purpose of the 3500/33-03-00 module?
It conditions and processes analog signals from vibration and speed sensors for use in the Bently Nevada 3500 machinery protection and condition monitoring system.
Q2: What types of sensors can be used with this module?
It supports proximity (eddy-current) probes, velocity transducers, and speed pickups for monitoring vibration and shaft speed.
Q3: How is the 3500/33-03-00 module powered?
It is powered directly from the 3500 rack backplane, which distributes power to all installed modules.
Q4: What does the module do with sensor signals?
It conditions and filters raw analog signals from sensors, producing stable measurement data that can be used for protection thresholds and condition analysis.
Q5: Can this module contribute to machinery protection decisions?
Yes, in conjunction with system configuration and alarms in the 3500 monitoring software, its inputs can trigger alert and trip logic.
Q6: How does the system report the module’s status?
Status is reported through the 3500 system interface and backplane communications; some rack systems also provide basic LED indications.
Q7: Is this module suitable for harsh industrial environments?
Yes, when installed in a protected rack within an industrial control room or cabinet environment, it supports continuous industrial operation.
Q8: What are the physical dimensions and approximate weight of the 3500/33-03-00?
The module is approximately 160 mm high, 20 mm wide, 120 mm deep, and weighs about 0.25 kg.
