Technical Specifications
| Item | Specification |
|---|---|

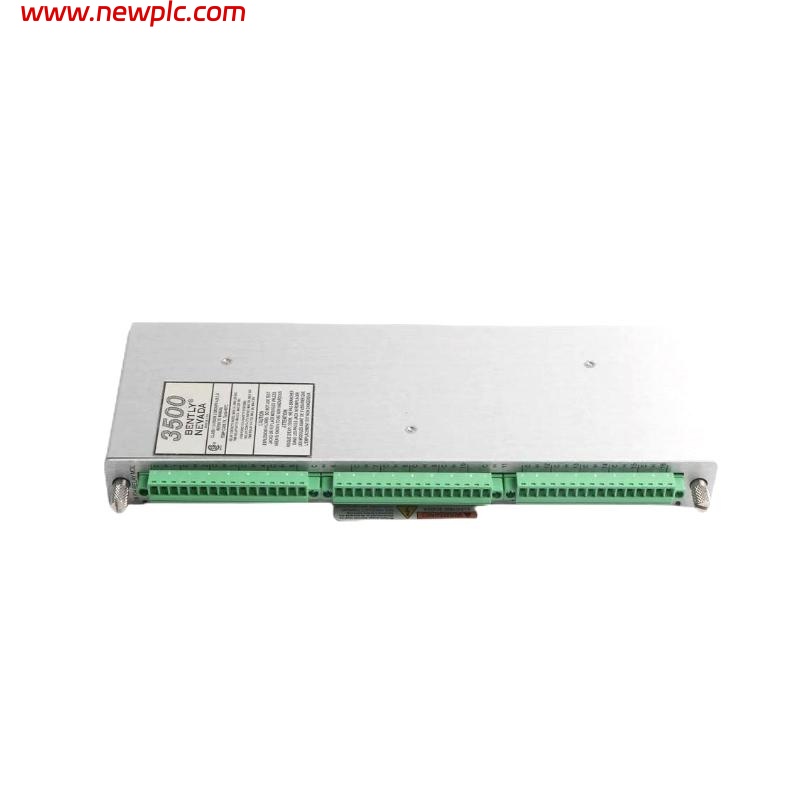

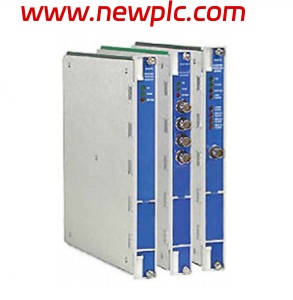

| Model | Bently Nevada 3500/33-A01-B00 |
| Type | Vibration/Speed Transducer Input Module (Monitoring Card) |
| Product Category | Machinery Protection & Condition Monitoring Module |
| Product Family | Bently Nevada 3500 Monitoring System |
| Function | Accepts input from proximity and vibration transducers and provides processed signals for machine protection and monitoring |
| Channel Type | Single transducer channel (dual input types supported) |
| Input Signal Types | Proximity (eddy-current), velocity transducer, or speed pickup signals |
| Transducer Compatibility | Eddy-current probes, velocity sensors, and other compatible vibration sensors |
| Signal Processing | Analog conditioning, filtering, and fault detection |
| Output Signals | Process value and alarm/trip logic outputs via rack backplane |
| Protection Functions | Machinery protection thresholds (trip, alert) configurable in system software |
| Rack Power | Powered from 3500 rack backplane |
| Isolation | Internal galvanic isolation between input and logic sections |
| Status Indication | LED or backplane status reporting through system interface |
| Mounting Method | 3500 rack slot installation |
| Operating Temperature Range | 0 °C to +60 °C (typical industrial module range) |
| Application Environment | Rotating machinery (turbines, compressors, generators, pumps) |
| Compatibility | Bently Nevada 3500 rack and associated monitoring modules |
| Dimensions | Approx. 160 mm (H) × 20 mm (W) × 120 mm (D) (module form factor) |
| Weight | Approximately 0.25 kg |
FAQ
FAQ
Q1: What is the primary function of the Bently Nevada 3500/33-A01-B00 module?
It serves as an input module in the 3500 monitoring system, accepting signals from vibration and speed sensors to support condition monitoring and protection logic.
Q2: What types of sensors can be connected to this module?
It supports eddy-current proximity probes, velocity transducers, and compatible speed pickups for vibration and speed measurement.
Q3: Where is this module installed?
It is installed in a 3500 monitoring system rack in a designated slot and powered via the rack backplane.
Q4: Does the module provide built-in protection functions?
Yes, when configured within the 3500 system, it contributes to machinery protection by supplying measured values to system software for alarm and trip decisions.
Q5: How does the 3500/33-A01-B00 communicate its status?
Module status and diagnostics are communicated through the rack interface and indicated via system software; some rack implementations also show LED indicators for basic status.
Q6: What signal conditioning does the module perform?
It conditions and filters raw sensor input signals to produce stable vibration and speed measurements for monitoring and protection channels.
Q7: Is this module suitable for harsh industrial environments?
Yes, it is designed for industrial machinery monitoring environments when installed in a protective cabinet or rack infrastructure.
Q8: What are the physical dimensions and weight of the module?
The module measures approximately 160 mm high, 20 mm wide, 120 mm deep, and weighs about 0.25 kg.
