Technical Specifications
| Item | Specification |
|---|---|

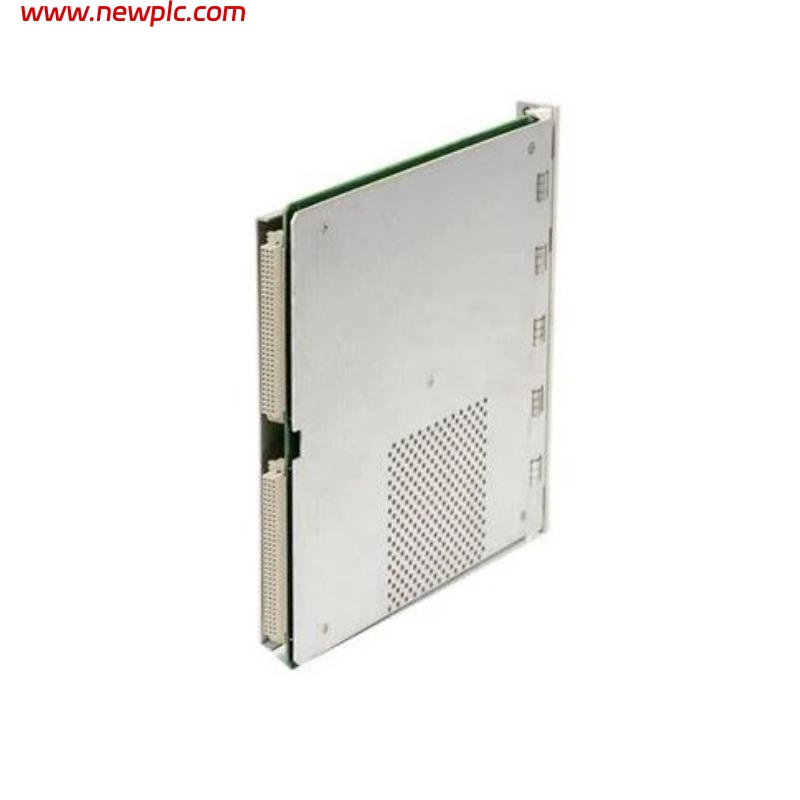

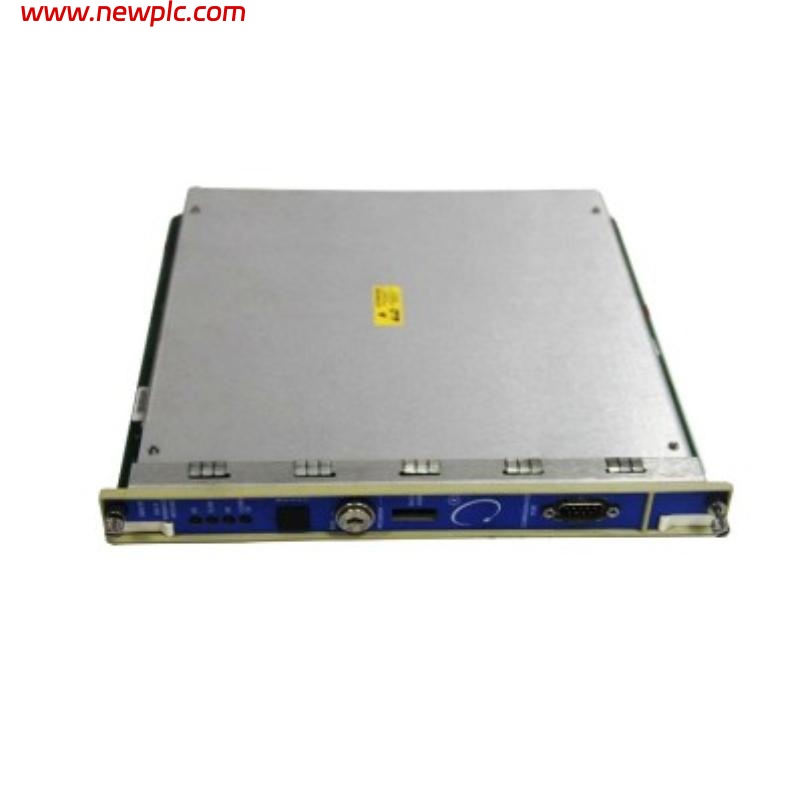

| Model | Bently Nevada 3500/33-A01-B00 |
| Type | Vibration / Speed Transducer Module (Monitor Card) |
| Product Category | Machinery Protection System Module |
| Product Family | Bently Nevada 3500 rack-mount monitoring system |
| Function | Condition monitoring and protection of rotating machinery |
| Channel Type | Vibration and speed input channel |
| Input Signal | Proximitor / eddy-current sensor signal or velocity transducer input |
| Measurement Range | Configurable via software for vibration and speed parameters |
| Output | Process and protection alarm outputs via rack backplane |
| Display Interface | Uses rack-mounted display or HMI (system dependent) |
| Protection Levels | Trip, alert, and advanced protection logic supported |
| Mounting Method | 3500 rack slot-mount module |
| Power Supply | From 3500 rack backplane |
| Isolation | Internal galvanic isolation between channel and logic sections |
| Operating Temperature Range | Typical industrial range (0 °C to +60 °C) |
| Application Environment | Industrial machinery, turbines, compressors, generators |
| Compatibility | Bently Nevada 3500 rack and system modules |
| Dimensions | Approx. 160 mm (H) × 20 mm (W) × 120 mm (D) |
| Weight | Approximately 0.25 kg |
FAQ
FAQ
Q1: What is the primary function of the 3500/33-A01-B00 module?
It is a vibration and speed transducer input module used for machinery protection and condition monitoring in the Bently Nevada 3500 system.
Q2: What types of signals does this module accept?
It accepts signals from proximitor (eddy-current) sensors and velocity transducers.
Q3: Where is the 3500/33-A01-B00 installed?
It is installed in a 3500 monitoring rack and occupies a standard module slot.
Q4: How does this module contribute to machine protection?
It provides measurement and protection logic for vibration and speed, feeding alarm and trip decisions to the rack logic.
Q5: Is this module compatible with other Bently Nevada 3500 system components?
Yes, it interfaces with the 3500 rack backplane and other modules in the 3500 monitoring system.
Q6: What is the operating temperature range?
It operates reliably within typical industrial ambient temperatures.
Q7: Does this module require external power?
No, it is powered via the 3500 rack backplane.
Q8: What are the physical dimensions and weight of the 3500/33-A01-B00?
The module measures approximately 160 mm high, 20 mm wide, 120 mm deep, and weighs about 0.25 kg.
