Technical Specifications
| Parameter | Specification |
|---|---|

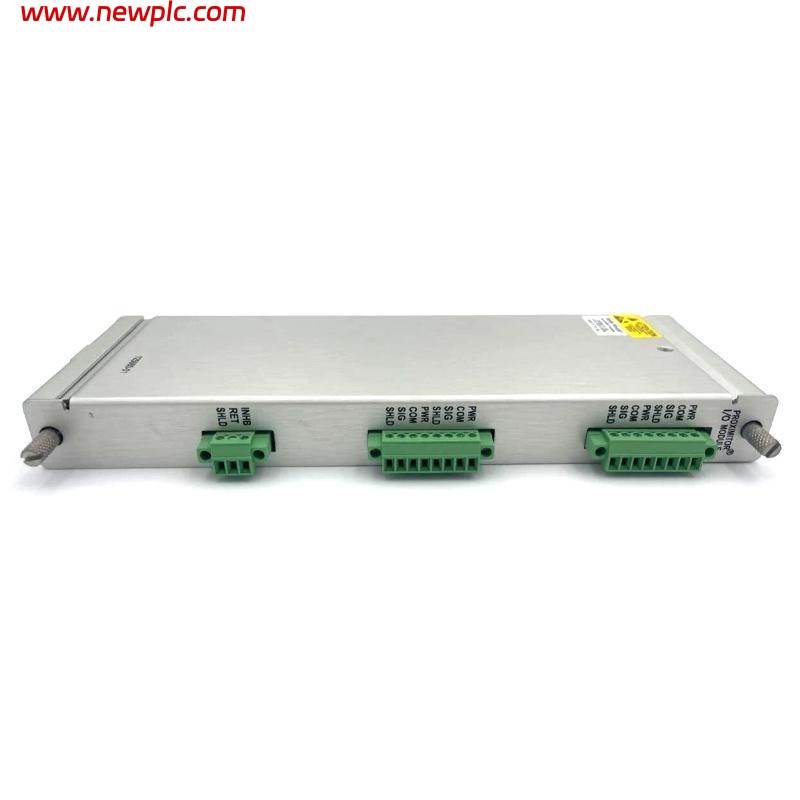

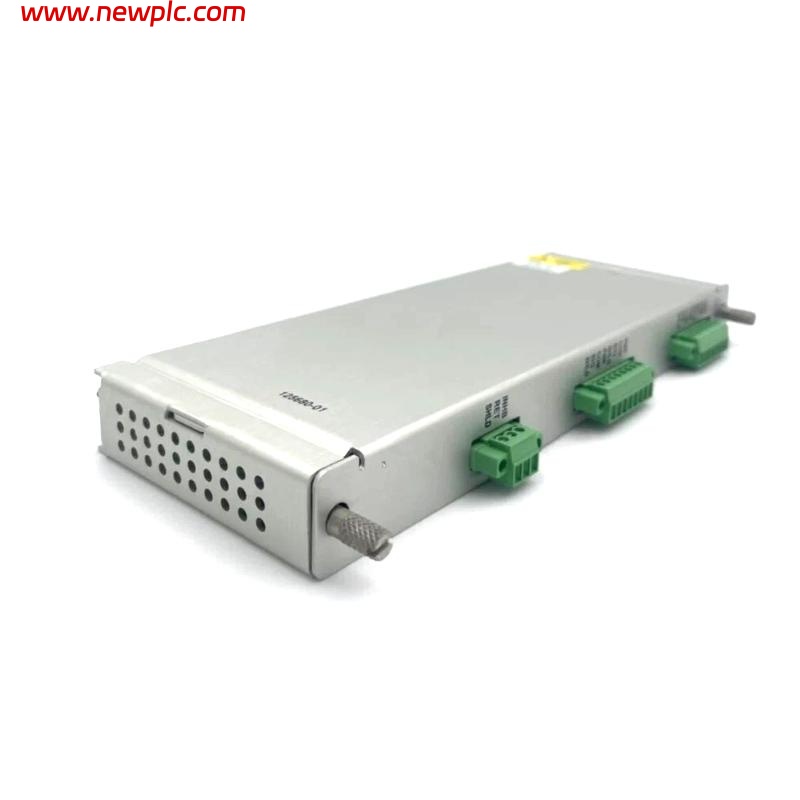

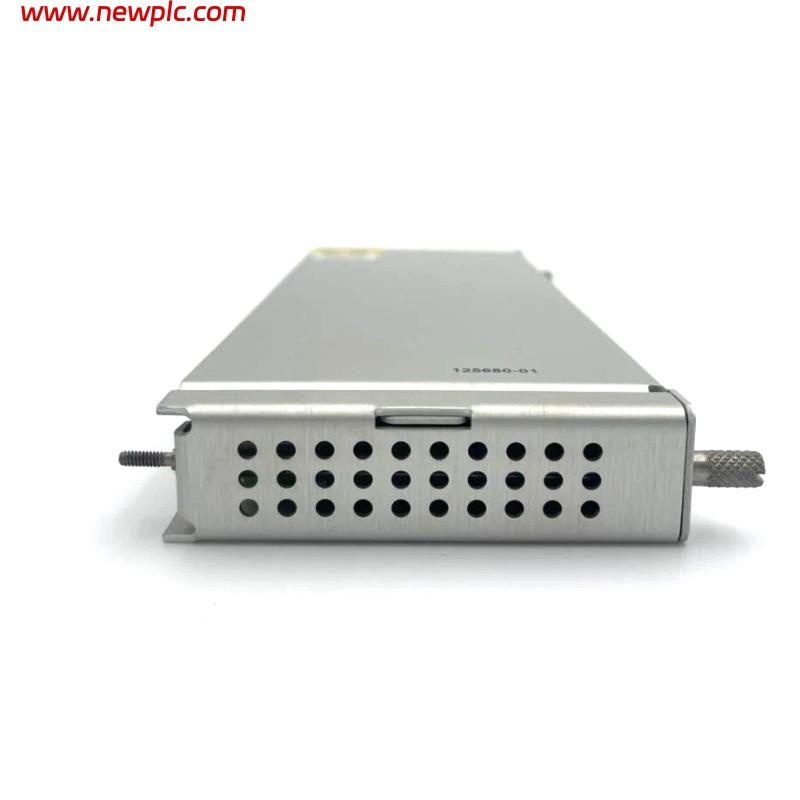

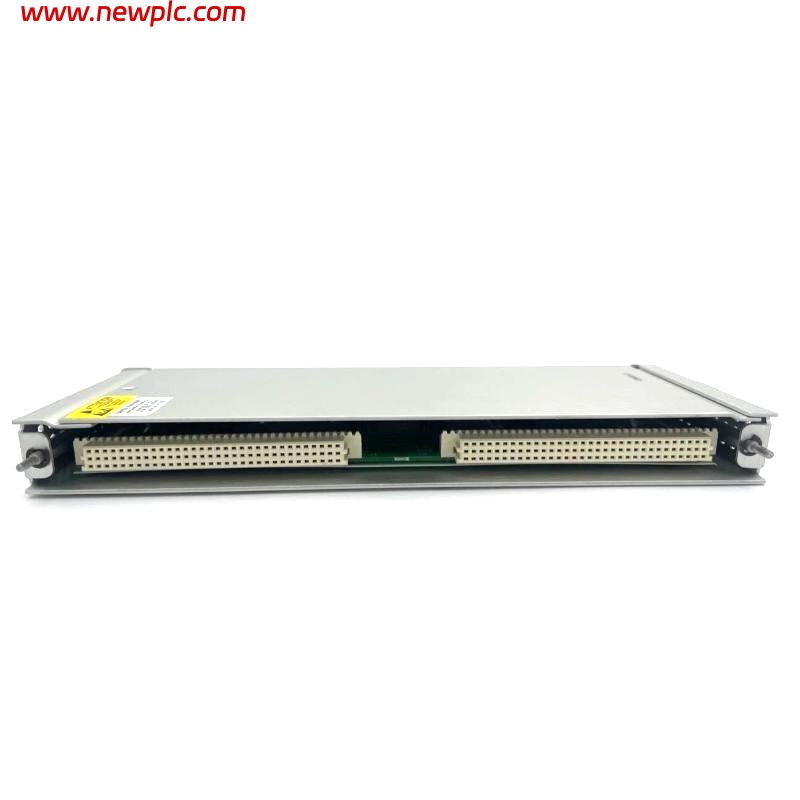

| Product Model | Bently Nevada 3500/40 125680-01 Proximitor I/O Module with Internal Terminations |
| Signal Inputs | Accepts 1 to 4 proximity transducer signals |
| Power Consumption | 7.7 W (typical) |
| Input Impedance | 10 kΩ (Proximitor and acceleration inputs) |
| Sensitivity | Radial Vibration / Thrust / Eccentricity: 3.94 mV/μm or 7.87 mV/μm; Differential Expansion: 0.394 mV/μm or 0.787 mV/μm; REBAM: 40 mV/μm or 80 mV/μm |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 VDC |
| Operating Temperature | -30°C to +65°C (with internal termination) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions (H × W × D) | 241.3 × 24.4 × 99.1 mm |
| Weight | 0.20 kg |
FAQ
FAQ
Q1: What is the main function of this module?
A1: It receives and processes signals from Bently Nevada proximity sensors, providing vibration and position measurements with programmable alarms.
Q2: How many input channels does this I/O module support?
A2: It supports 1 to 4 proximity transducer signal inputs.
Q3: What is the power consumption?
A3: Typical power consumption is 7.7 watts.
Q4: What is the input impedance?
A4: Input impedance is 10 kΩ.
Q5: What is the operating temperature range?
A5: Operating temperature range is -30°C to +65°C (internal termination).
Q6: What is the output impedance?
A6: Output impedance is 550 Ω.
Q7: What are the module’s dimensions and weight?
A7: Dimensions are 241.3 × 24.4 × 99.1 mm, weight is 0.20 kg.
Q8: Does this module have hazardous area certifications?
A8: Yes, it supports ATEX, IECEx, CSA, and cNRTLus explosion-proof certifications.
