Technical Specifications
| Parameter | Specification |
|---|---|

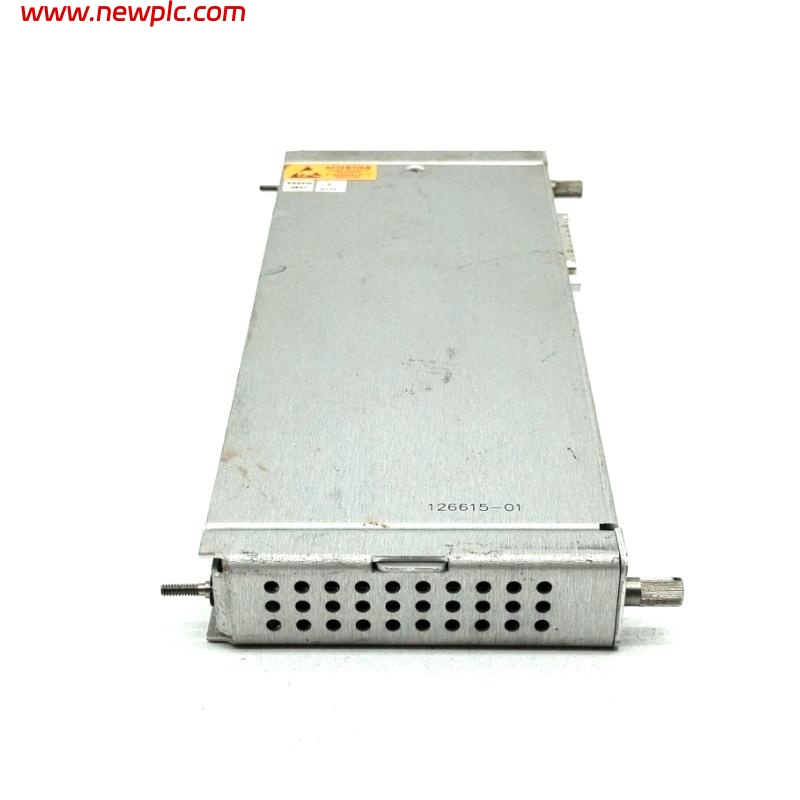

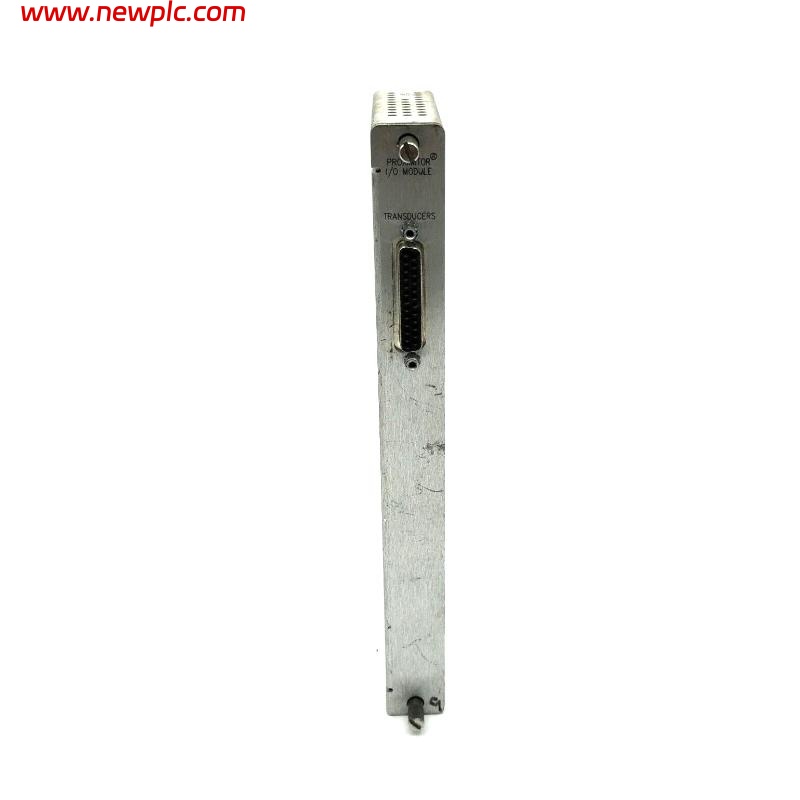

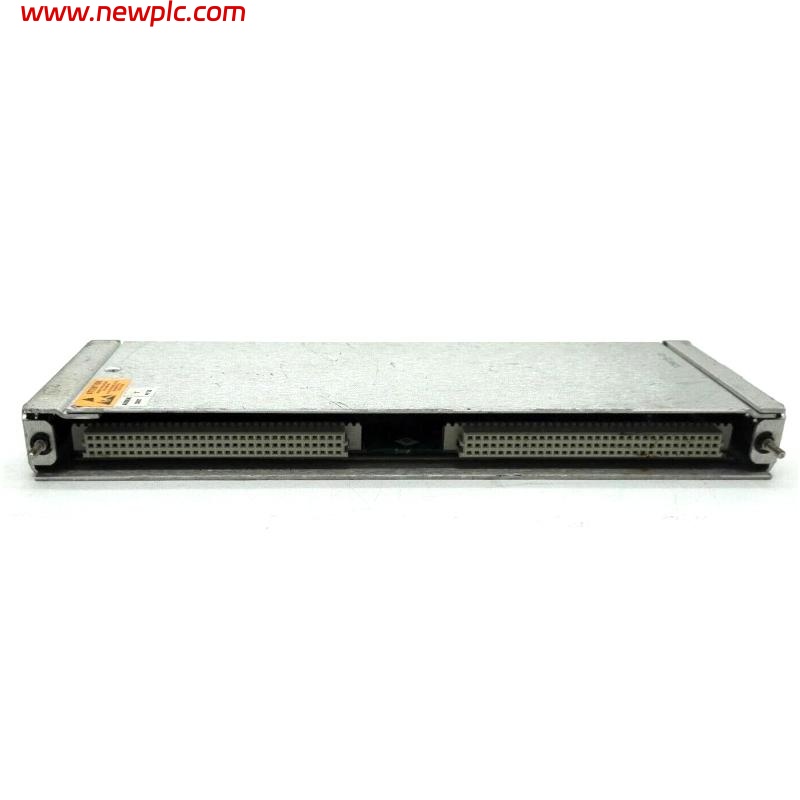

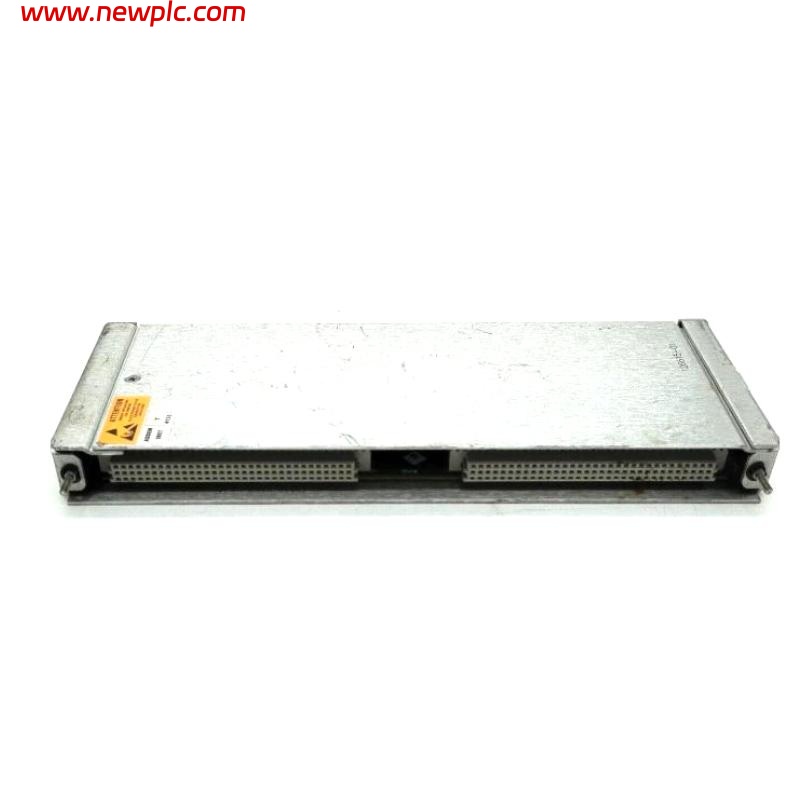

| Model | Bently Nevada 3500/40 126615-01 Proximitor I/O Module with External Terminations |
| Compatible Monitor | 3500/40M Proximitor Monitor |
| Input Channels | Accepts 1 to 4 proximity transducer signals |
| Input Impedance | 10 kΩ (Proximitor and acceleration inputs) |
| Sensitivity | Radial/Thrust/Eccentricity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil); Differential Expansion: 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil); REBAM: 40 mV/μm (1000 mV/mil) or 80 mV/μm (2000 mV/mil) |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 Vdc |
| Power Consumption | 7.7 W typical |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Dimensions (H × W × D) | 241.3 × 24.4 × 99.1 mm |
| Weight | 0.20 kg |
| Rack Space Requirements | 1 full-height rear slot |
FAQ
FAQ
Q1: What is the primary function of this module?
A1: It connects and receives signals from 1 to 4 Bently Nevada proximity transducers, sending them to the 3500/40M monitor for processing.
Q2: Does this module have built-in terminations?
A2: The 126615-01 is the external termination version, requiring external termination blocks and cables.
Q3: What measurement types are supported?
A3: Supports radial vibration, thrust position, eccentricity, differential expansion, and REBAM analysis.
Q4: What is the output impedance?
A4: The output impedance is 550 ohms.
Q5: What is the operating temperature range?
A5: -30°C to +65°C.
Q6: What are the dimensions and weight?
A6: Dimensions are 241.3 × 24.4 × 99.1 mm, weight is 0.20 kg.
Q7: What is the power consumption?
A7: Typical power consumption is 7.7 W.
Q8: How much rack space does it require?
A8: Requires one full-height rear slot.
