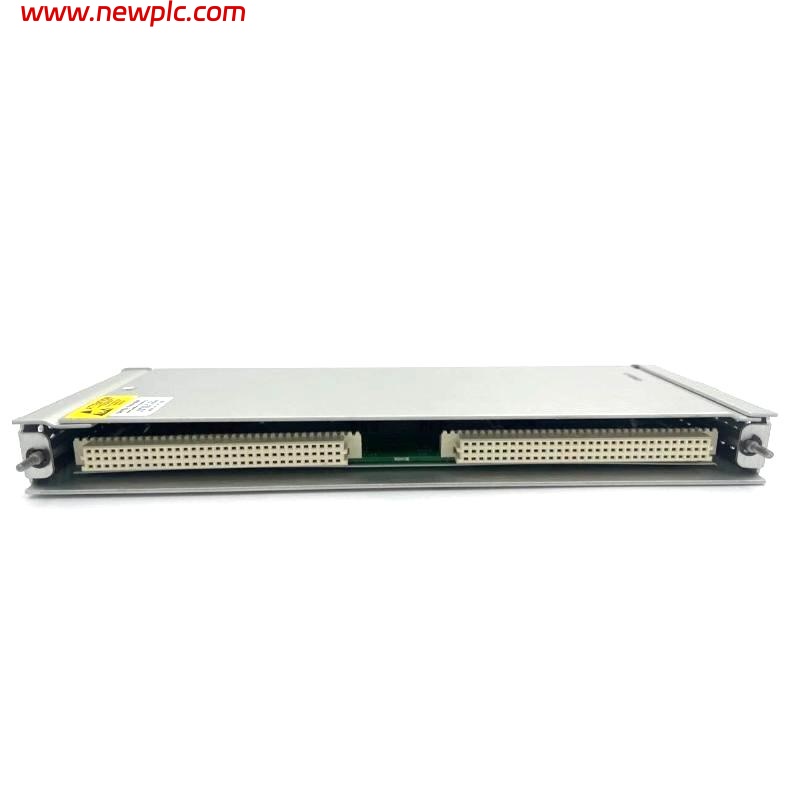

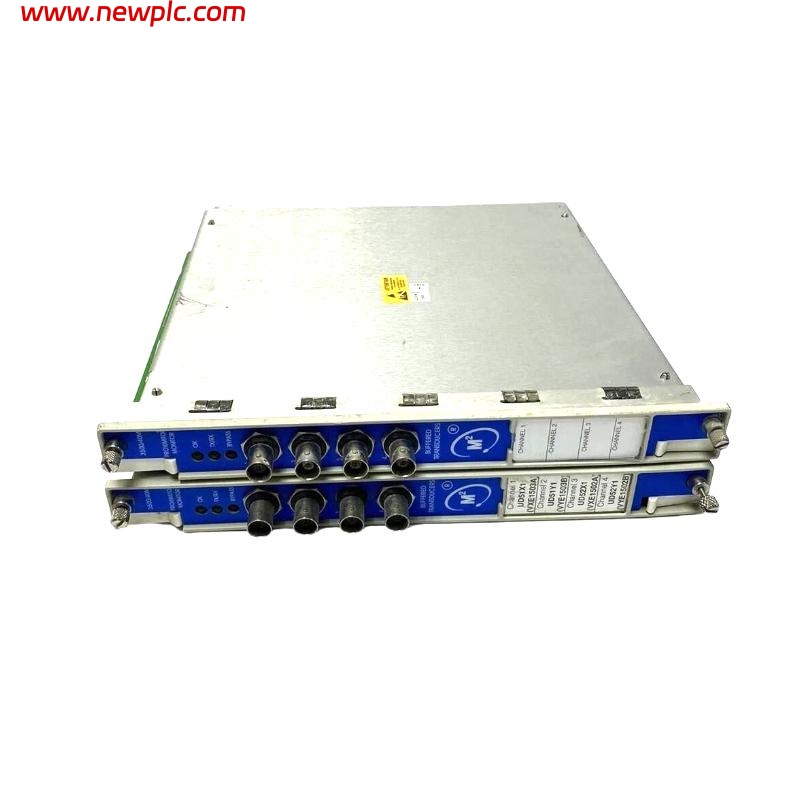

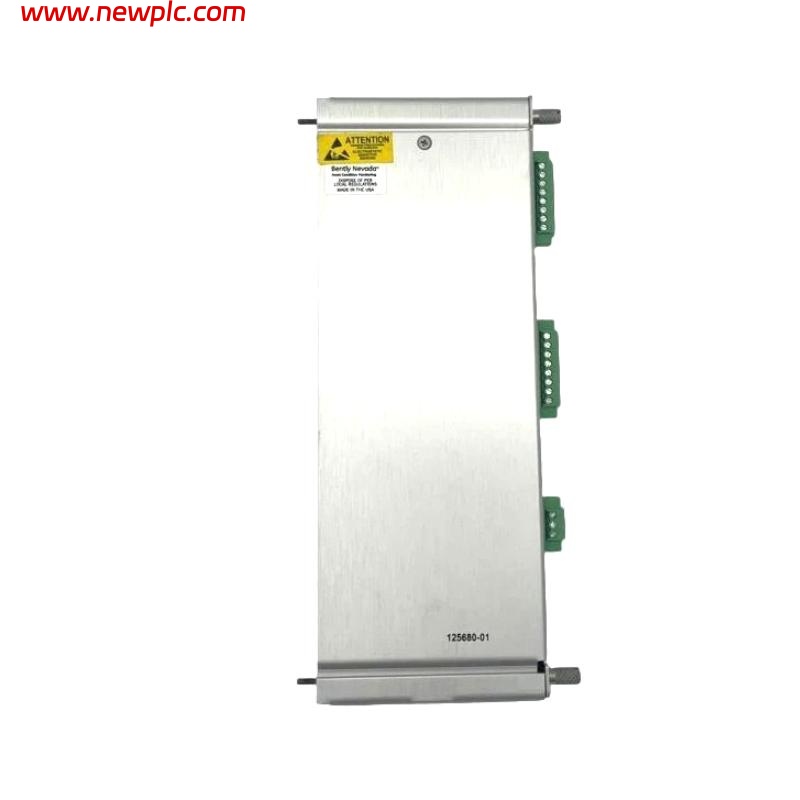

Bently Nevada 3500/40 140734-01+125680-01 Four-Channel Proximitor Monitor

FAQ

Q1: Can this monitor perform multiple measurement functions simultaneously?
A1: Yes, the 4 channels can be programmed in pairs to perform two different or identical functions simultaneously.

Q2: What types of sensors are compatible with the 3500/40?
A2: It is compatible with Bently Nevada Proximitor proximity transducer inputs.

Q3: What are the characteristics of the output interface?

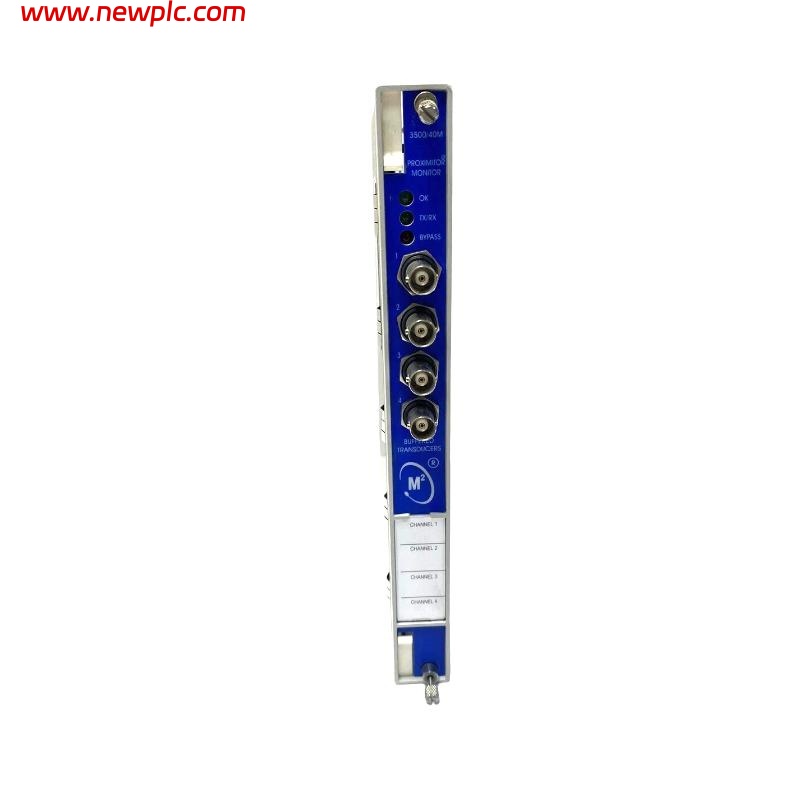

A3: Each channel has a front-panel coaxial connector with short-circuit protection and 550 Ω output impedance.

Q4: Can the alarm setpoints be adjusted?
A4: Yes, alarm setpoints can be configured from 0–100% of the measurement range via Rack Configuration Software.

Q5: Is it suitable for harsh environments?
A5: Yes, it supports operating temperatures from -30°C to +65°C (depending on I/O module type) and meets various industrial environment certifications.

Q6: What frequency range does the REBAM function support?
A6: REBAM supports programmable frequency ranges from 0.152 Hz to 8678 Hz (Spike) and corresponding ranges for other modes.

Q7: What is the main application of this device?
A7: It is used for monitoring and protecting rotating machinery parameters such as shaft vibration, thrust position, eccentricity, and differential expansion.

Q8: How is the alarm delay function implemented?
A8: Alarm delays can be set via Rack Configuration Software, ranging from 1 to 60 seconds, with danger alarms as short as 0.1 seconds.
