Technical Specifications
| Parameter | Specification |
|---|---|

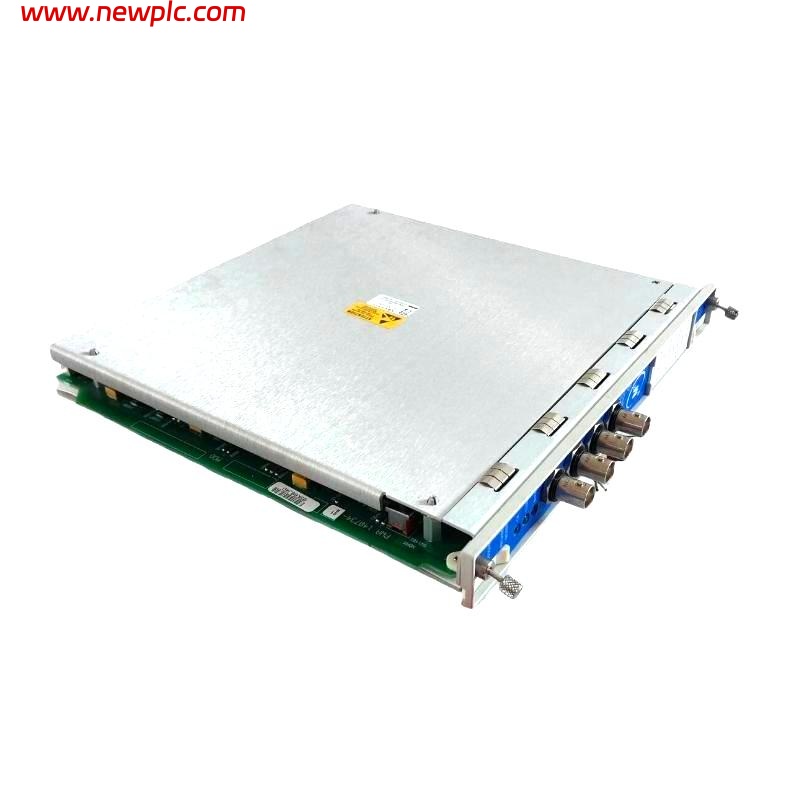

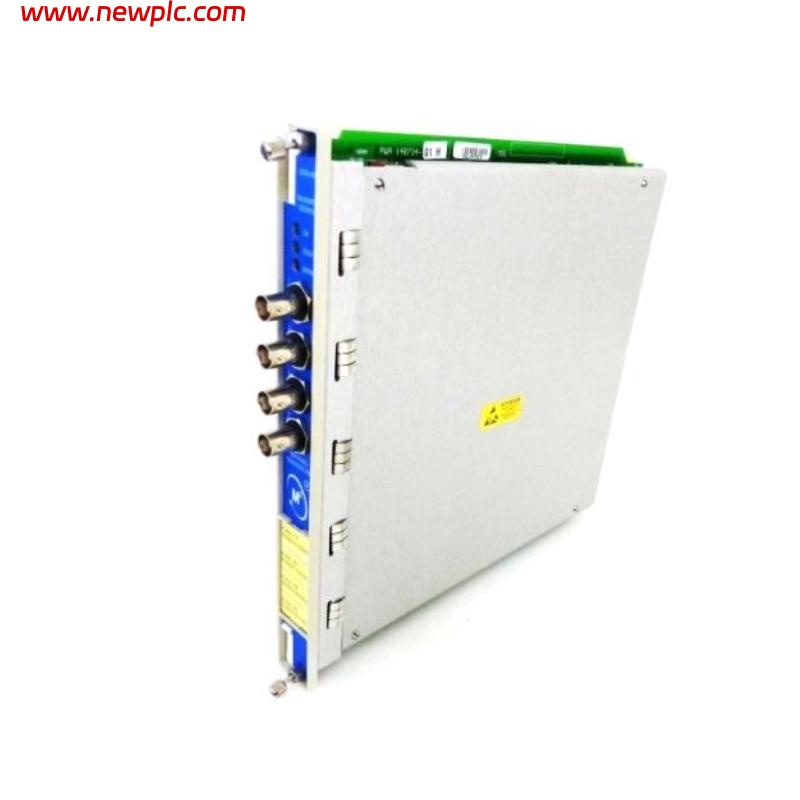

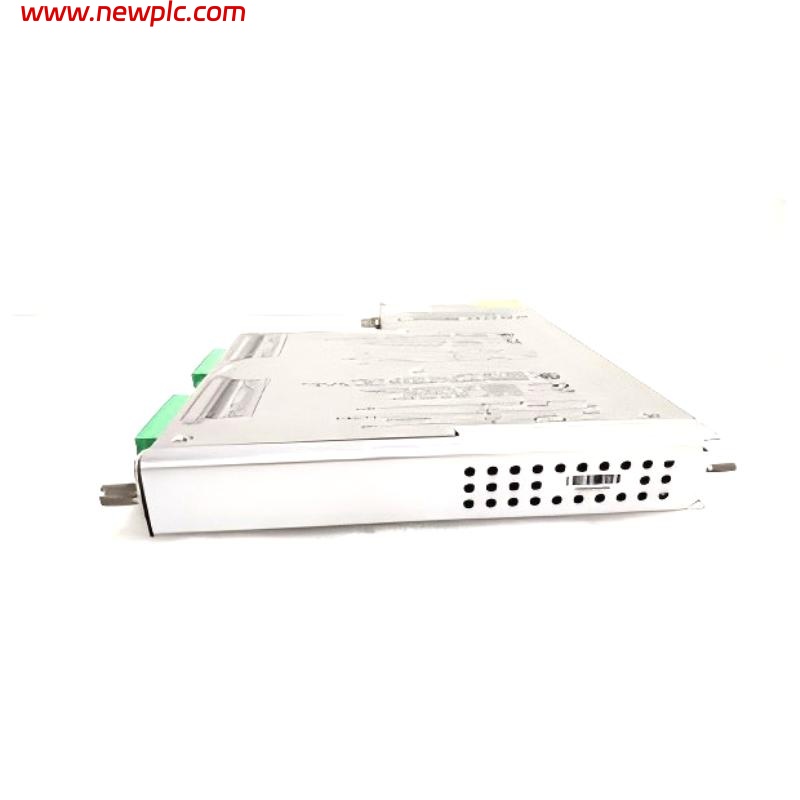

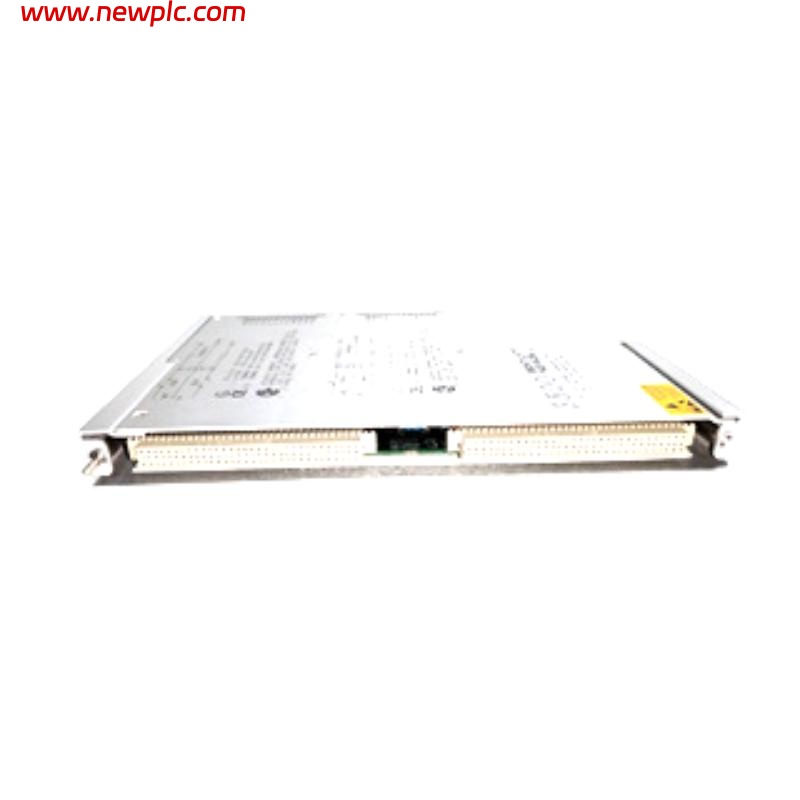

| Product Model | Bently Nevada 3500/40 140734-01 + 135489-04 Four-Channel Proximitor Monitor |
| Input Channels | 4 proximity transducer inputs |
| Power Consumption | 7.7 W (typical) |
| Input Impedance | 10 kΩ |
| Sensitivity | Radial Vibration / Thrust / Eccentricity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil) Differential Expansion: 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil) REBAM: 40 mV/μm (1000 mV/mil) or 80 mV/μm (2000 mV/mil) |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 Vdc |
| Frequency Response | Radial Vibration Direct Filter: 4 Hz – 4 kHz or 1 Hz – 600 Hz Gap Filter: -3 dB at 0.09 Hz |
| Accuracy | Direct/Gap: ±0.33% FS typical, ±1% max |
| Operating Temperature | -30°C to +65°C (Internal/External Termination) 0°C to +65°C (Internal Barrier) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| Rack Space Requirement | 1 full-height front slot (monitor) + 1 full-height rear slot (I/O module) |
FAQ
FAQ
Q1: What is the primary function of the 3500/40 Four-Channel Proximitor Monitor?
A1: It processes signals from proximity transducers to monitor vibration, position, and other parameters, providing machine protection through user-defined alarm setpoints.
Q2: How many input channels does this device support?
A2: It supports four independent proximity transducer input channels.
Q3: What is the power consumption of this model?
A3: Typical power consumption is 7.7 watts.
Q4: What is its input impedance?
A4: The standard I/O input impedance is 10 kΩ.
Q5: What measurement functions are supported?
A5: It supports radial vibration, thrust position, eccentricity, differential expansion, and REBAM measurements.
Q6: What is the operating temperature range?
A6: -30°C to +65°C for internal/external termination modules; 0°C to +65°C for internal barrier modules.
Q7: How much rack space is required for installation?
A7: One full-height front slot for the monitor and one full-height rear slot for the I/O module.
Q8: What are the physical dimensions and weight?
A8: Dimensions are 241.3 × 24.4 × 241.8 mm, and weight is 0.91 kg.
