Technical Specifications
| Parameter | Specification |
|---|---|

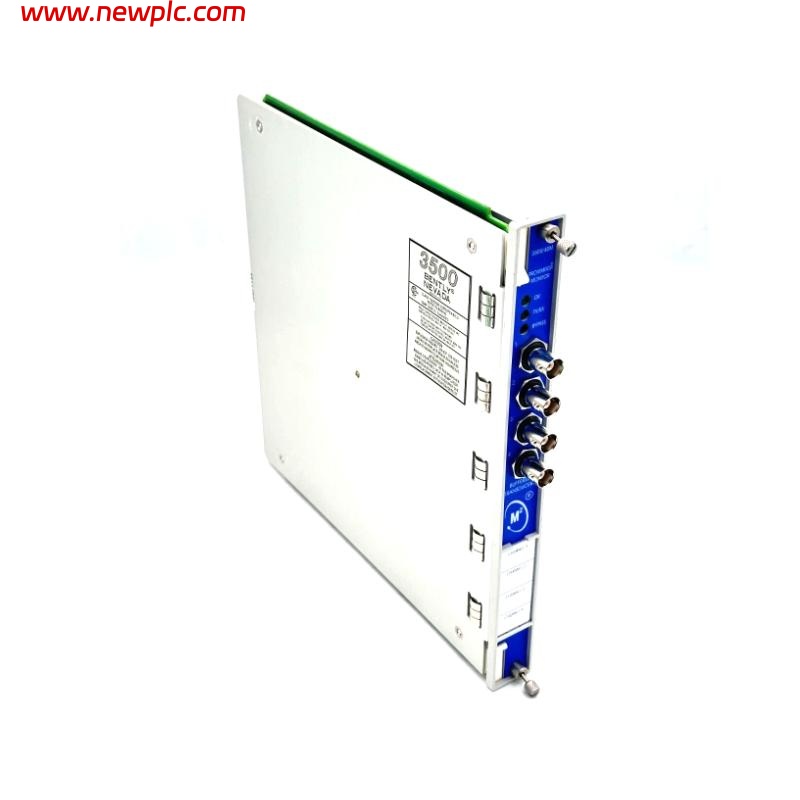

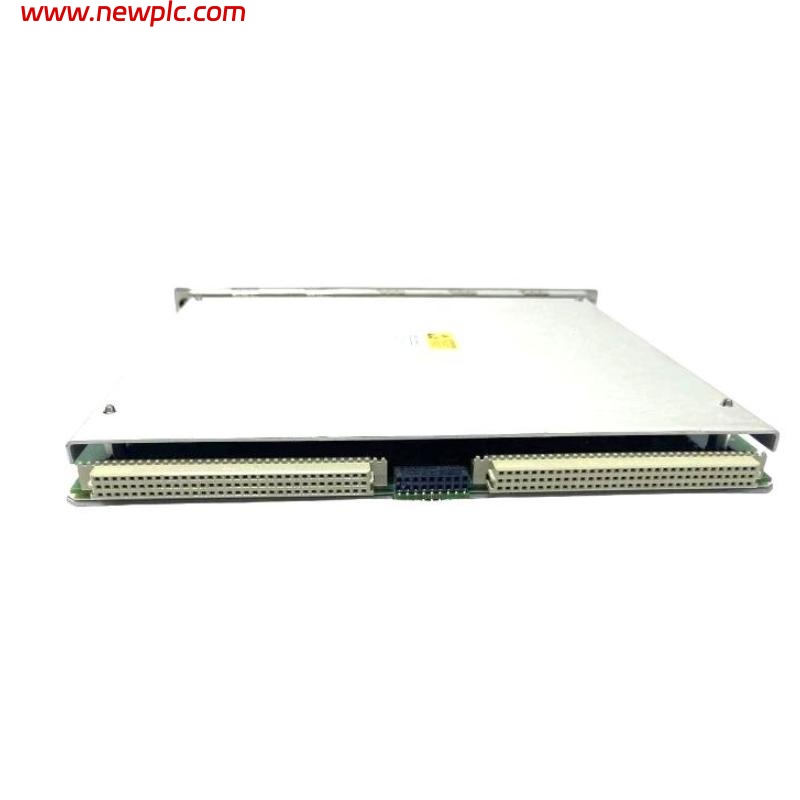

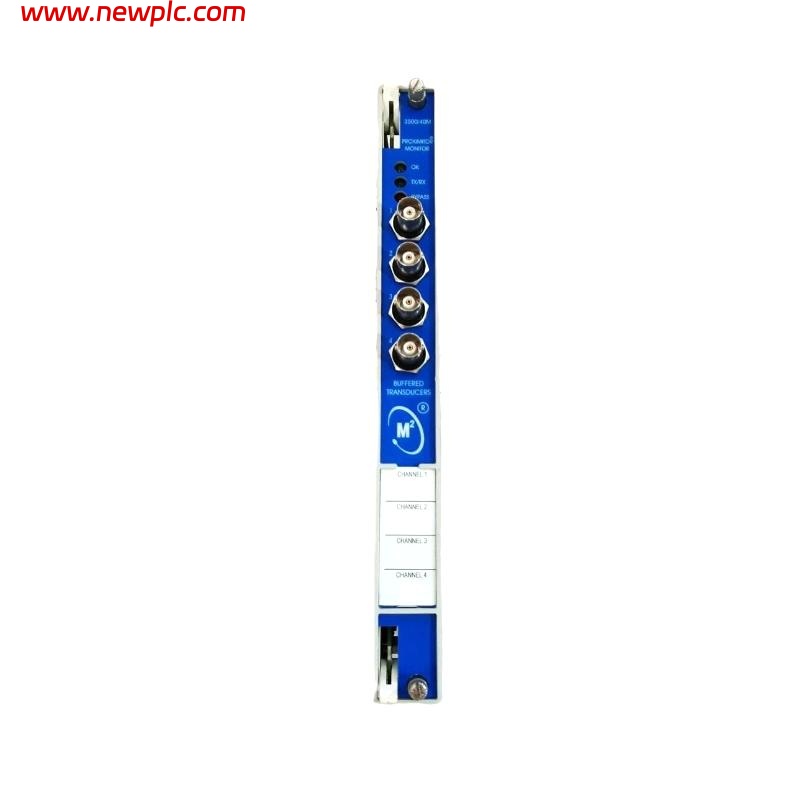

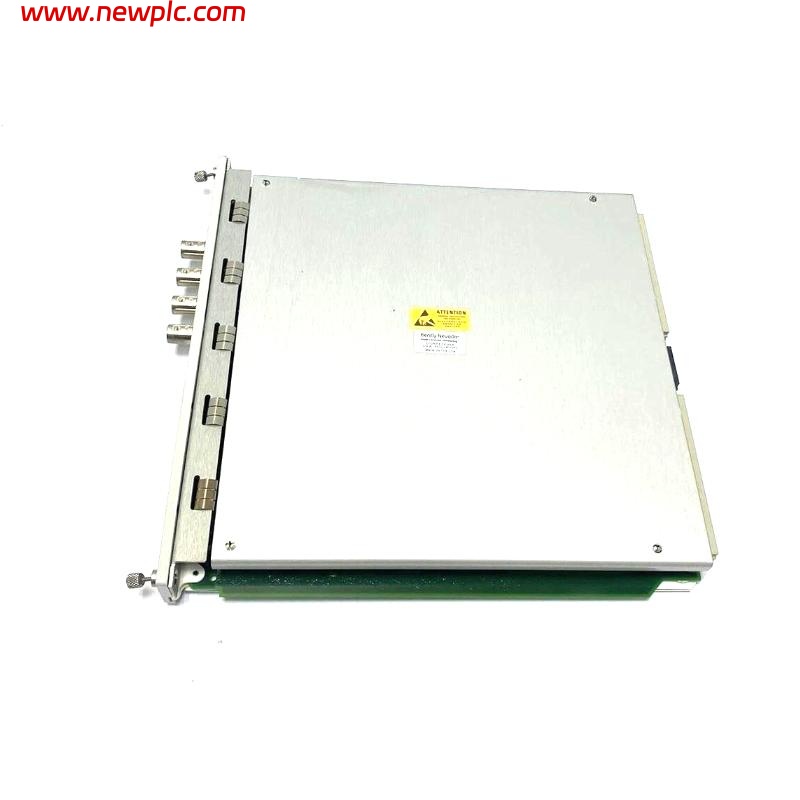

| Product Model | Bently Nevada 3500/40 149716-01 Four-Channel Proximitor Monitor |
| Input Signal | Accepts from 1 to 4 proximity transducer signals |
| Power Consumption | 7.7 W typical |
| Input Impedance | 10 kΩ (Proximitor and acceleration inputs) |
| Sensitivity | Radial Vibration / Thrust / Eccentricity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil); Differential Expansion: 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil); REBAM: 40 mV/μm (1000 mV/mil) or 80 mV/μm (2000 mV/mil) |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 Vdc |
| Frequency Response (Radial Vibration) | Direct Filter: 4 Hz to 4000 Hz or 1 Hz to 600 Hz (user-programmable); Gap Filter: -3 dB at 0.09 Hz |
| Accuracy | ±0.33% typical, ±1% maximum (most parameters) |
| Operating Temperature | -30°C to +65°C (with Internal/External Termination I/O Module); 0°C to +65°C (with Internal Barrier I/O Module) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| Rack Space Requirement | 1 full-height front slot (monitor), 1 full-height rear slot (I/O modules) |
FAQ
FAQ
Q1: What is the main application of the 3500/40 149716-01?
A1: It is used to receive and process Bently Nevada proximity probe signals for radial vibration, thrust position, eccentricity, differential expansion, and REBAM monitoring.
Q2: How many input channels does the product support?
A2: It supports 1 to 4 proximity transducer inputs.
Q3: What is the power consumption?
A3: Typical power consumption is 7.7 watts.
Q4: What is the operating temperature range?
A4: -30°C to +65°C (standard I/O modules), 0°C to +65°C (internal barrier I/O modules).
Q5: What is the output impedance?
A5: Output impedance is 550 ohms.
Q6: What are the product dimensions and weight?
A6: Dimensions are 241.3 × 24.4 × 241.8 mm, weight is 0.91 kg.
Q7: How accurate is the product?
A7: Typical accuracy is ±0.33% of full scale, maximum ±1%.
Q8: How much rack space does the product require?
A8: One full-height front slot for the monitor and one full-height rear slot for I/O modules.
