Technical Specifications
| Parameter | Specification |
|---|---|

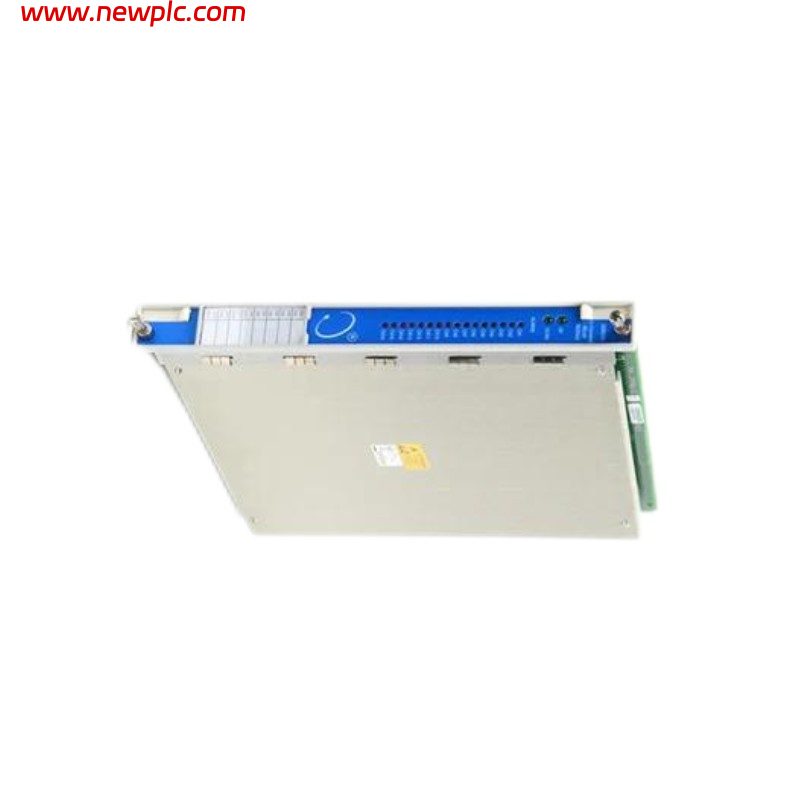

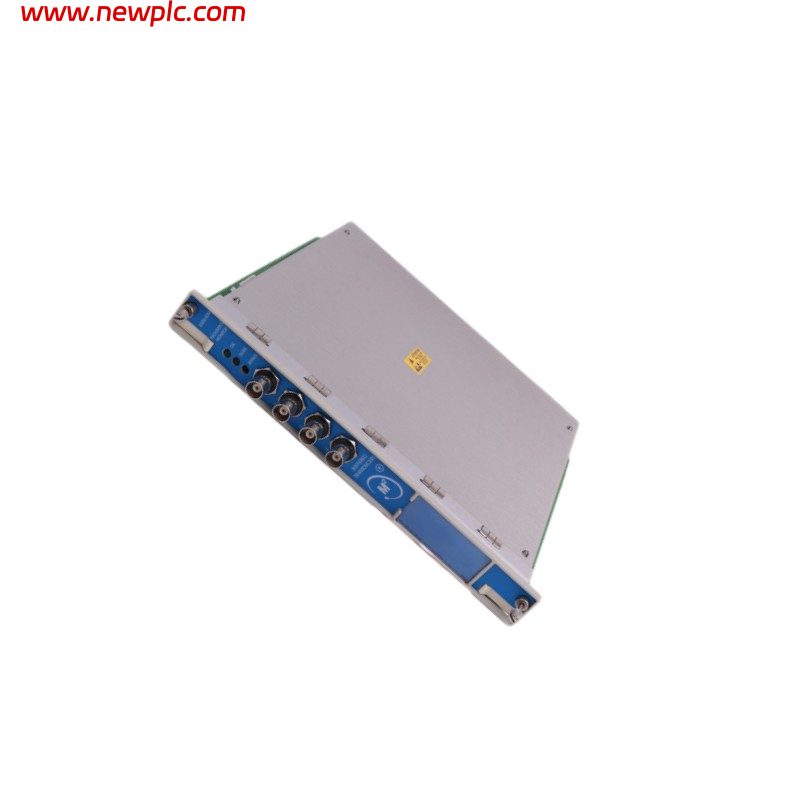

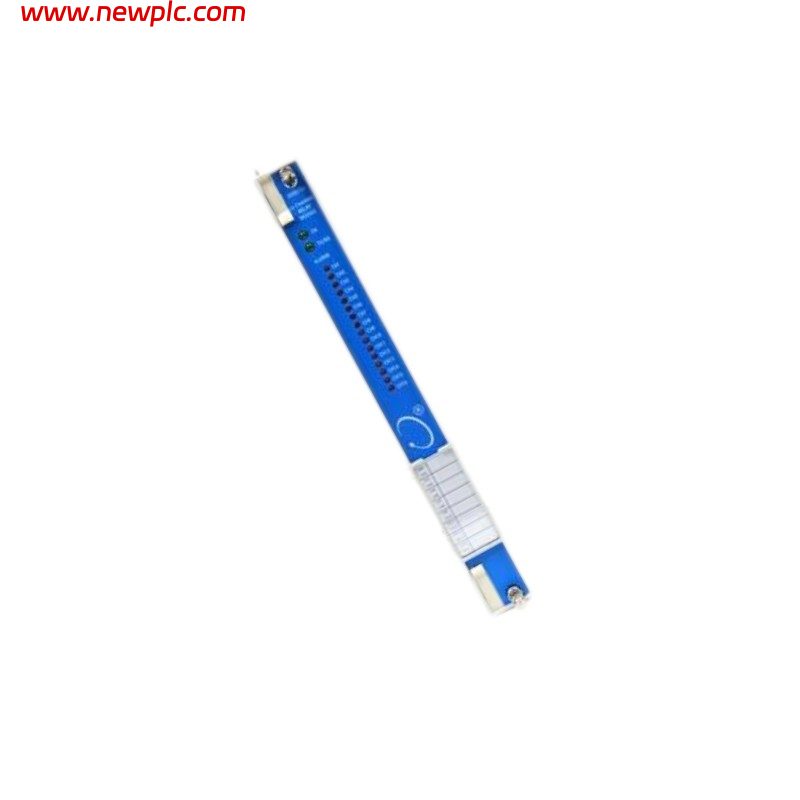

| Part Number | 3500/40M-01-00 (P/N 140734-01) |
| Manufacturer | Bently Nevada |
| Series | 3500 Machinery Protection System |
| Product Type | Proximitor Monitor |
| Function | Monitors radial vibration, eccentricity, REBAM, differential expansion, shaft position, and thrust position measurements |
| Channel Count | 4 Channels |
| Input Type | Proximity probes and Proximitor® sensors |
| Signal Processing | Continuous machinery condition monitoring and protection |
| Outputs | Buffered outputs, alarm outputs, relay logic integration |
| Indicators | OK, TX/RX, Bypass, Channel Status LEDs |
| Compatibility | 3300 XL 8 mm, 3300 NSv, 7200 Series, and compatible proximity transducer systems |
| Communication | Interfaces with 3500 Rack and TDI modules |
| Mounting Type | Rack-mounted module for 3500 System |
| Power Consumption | Approx. 7.7 W |
| Operating Temperature | 0°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 95%, non-condensing |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm |
| Weight | ≈ 0.82 kg |
FAQ
FAQ
Q1: What is the 3500/40M-01-00 used for?
It is a 4-channel Proximitor Monitor used for continuous monitoring and protection of rotating machinery.
Q2: How many channels does it support?
It supports 4 independent monitoring channels.
Q3: What measurements can it perform?
Radial vibration, shaft position, differential expansion, eccentricity, and thrust position monitoring.
Q4: Which sensors are compatible?
It works with Bently Nevada proximity probe systems such as 3300 XL 8 mm, 3300 NSv, and 7200 Series transducers.
Q5: Is this a protection monitor or a sensor?
It is a monitor module, not a sensor.
Q6: What are its dimensions?
Approximately 241.3 × 24.4 × 241.8 mm (H × W × D).
Q7: What is its weight?
Approximately 0.82 kg.
Q8: Which system is it installed in?
It is installed in a Bently Nevada 3500 Machinery Protection System rack.
