Technical Specifications
| Parameter | Specification |
|---|---|

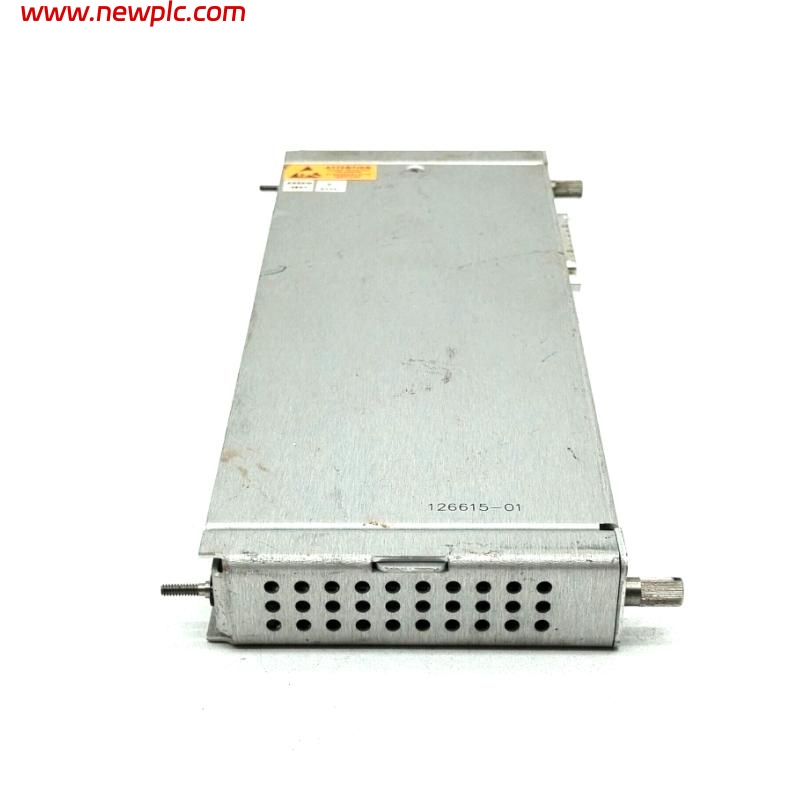

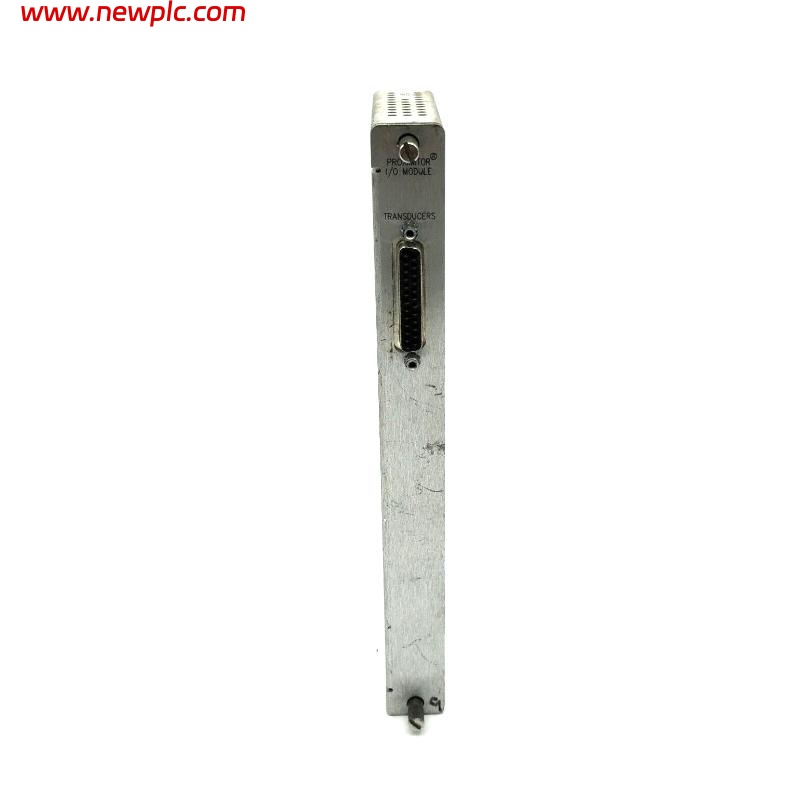

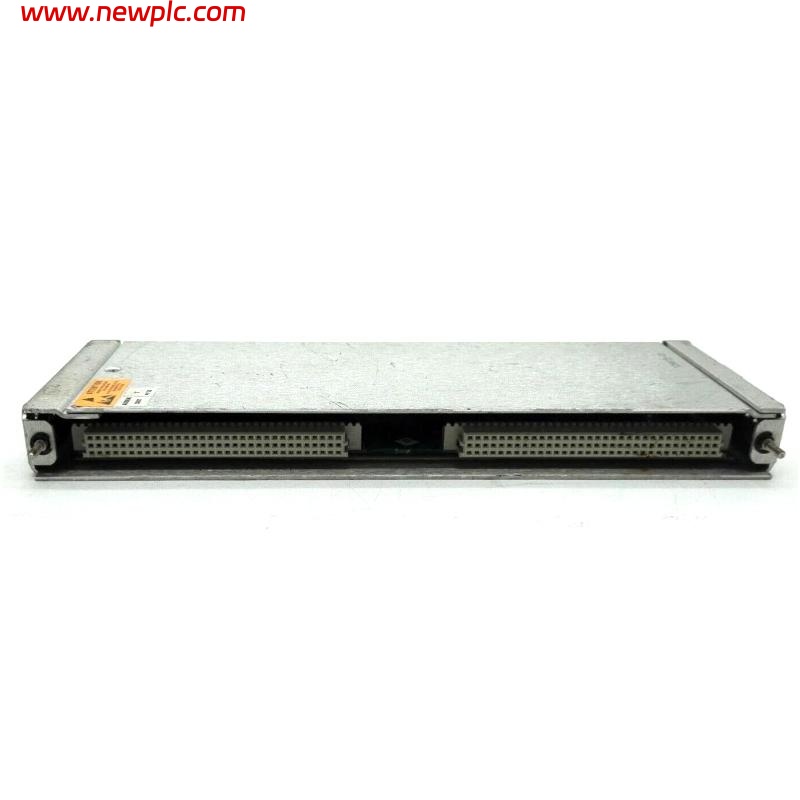

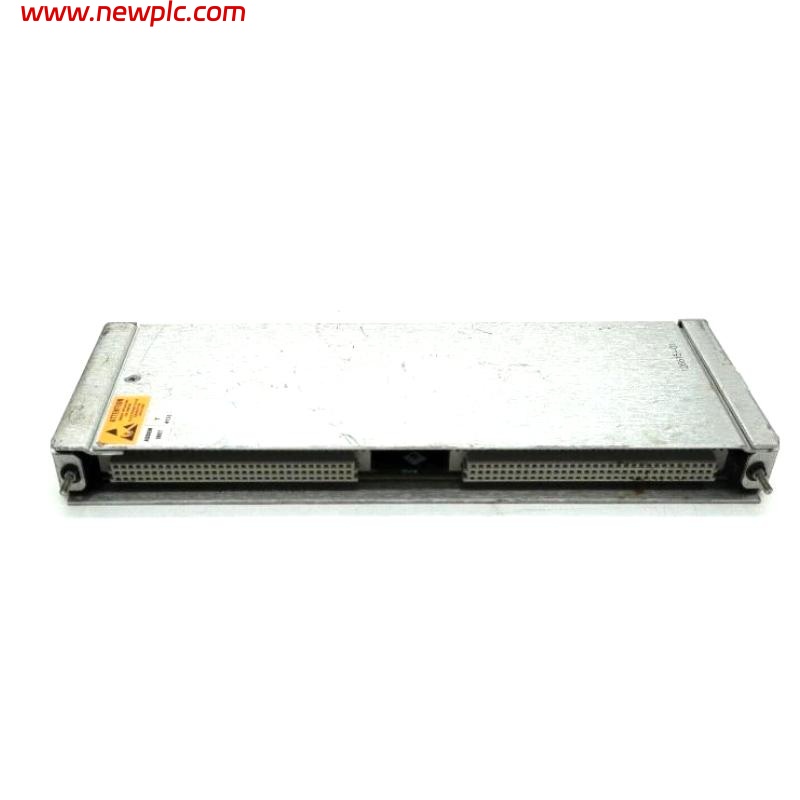

| Model | Bently Nevada 3500/40M 126615-01 Proximitor Seismic Monitor I/O Module |
| Channels | 4 independent channels |
| Compatible Sensors | Bently Nevada proximity transducers |
| Functions | Radial vibration, Eccentricity, REBAM, Thrust position, Differential expansion |
| Power Consumption | 7.7 W (typical) |
| Input Impedance | 10 kΩ (Proximitor & acceleration inputs) |
| Sensitivity | Radial/Thrust/Eccentricity: 3.94 mV/µm or 7.87 mV/µm; Differential expansion: 0.394 mV/µm or 0.787 mV/µm; REBAM: 40 mV/µm or 80 mV/µm |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 Vdc |
| Frequency Response | Programmable (varies by mode) |
| Accuracy | ±0.33% typical, ±1% max |
| Alarm Setpoints | Adjustable 0–100% of full scale |
| Operating Temperature | -30°C to +65°C (standard I/O) / 0°C to +65°C (barrier I/O) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95%, non-condensing |
| Dimensions (I/O Module) | 241.3 × 24.4 × 99.1 mm |
| Weight (I/O Module) | 0.20 kg |
FAQ
FAQ
Q1: What is the primary function of the 3500/40M module?
A1: It receives and processes signals from Bently Nevada proximity transducers, performs vibration, eccentricity, thrust position, and differential expansion monitoring, and triggers alarms based on user-configured thresholds.
Q2: How many channels does the module support?
A2: The module provides 4 independent channels, each assignable to different measurement functions.
Q3: What is the power consumption of the module?
A3: Typical power consumption is 7.7 watts.
Q4: What is the input impedance of the module?
A4: The standard I/O module input impedance is 10 kΩ.
Q5: What sensitivity ranges are supported?
A5: Vibration, thrust, and eccentricity: 3.94 mV/µm or 7.87 mV/µm; Differential expansion: 0.394 mV/µm or 0.787 mV/µm; REBAM: 40 mV/µm or 80 mV/µm.
Q6: What is the operating temperature range?
A6: Standard I/O modules: -30°C to +65°C; barrier I/O modules: 0°C to +65°C.
Q7: What are the dimensions and weight of the module?
A7: Dimensions are 241.3 × 24.4 × 99.1 mm, weight is 0.20 kg.
Q8: How are alarms configured on this module?
A8: Using the 3500 rack configuration software, alert and danger setpoints can be set for each measured value within 0–100% of full scale.
