Technical Specifications
| Parameter | Description |
|---|---|

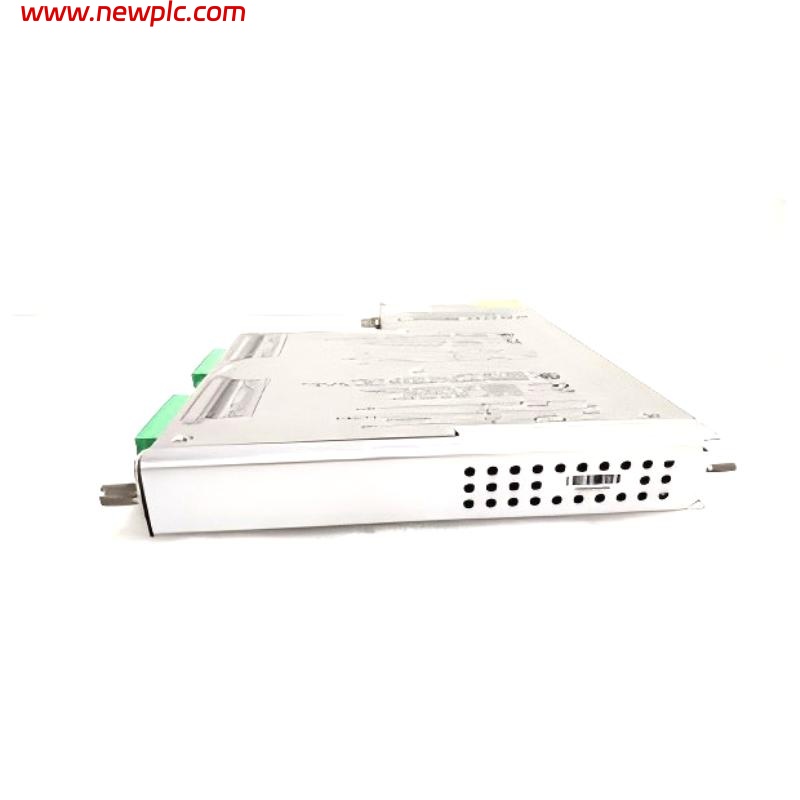

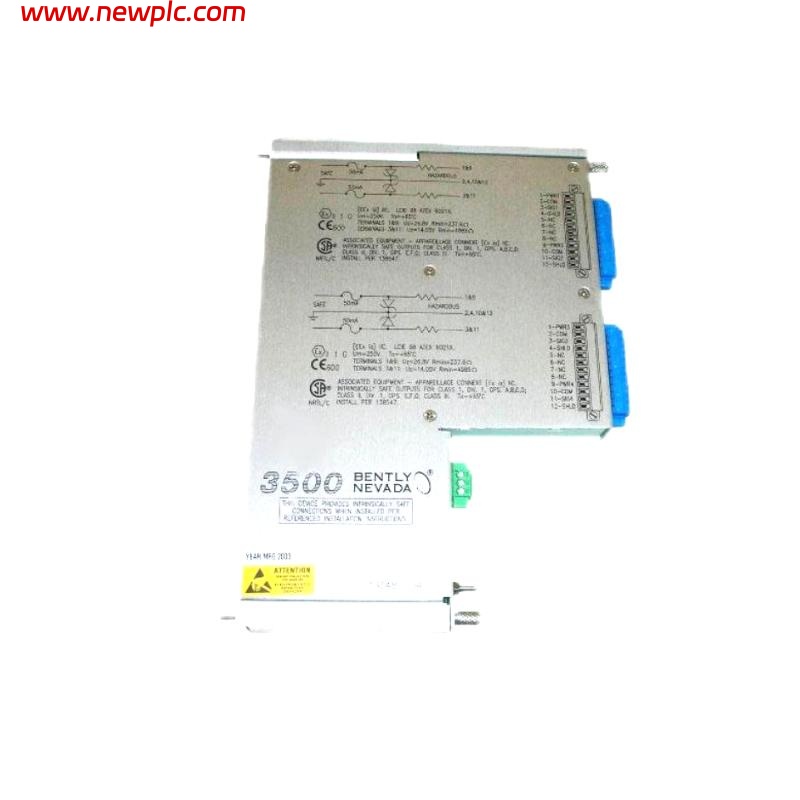

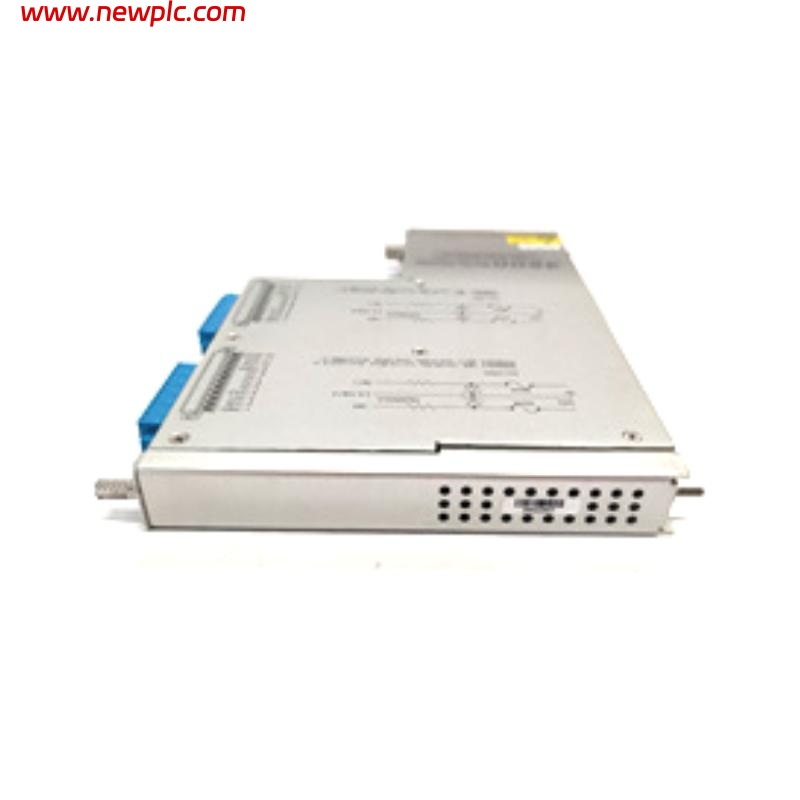

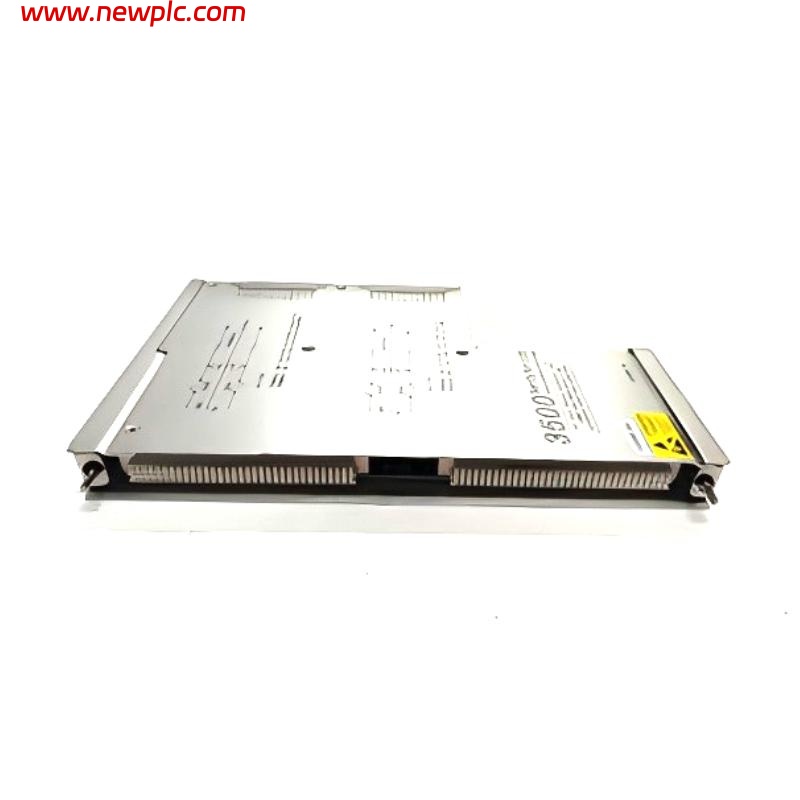

| Product Model | Bently Nevada 3500/40M 135489-04 Proximitor I/O Module |
| Function | Accepts input from 1 to 4 proximity transducer signals, conditions signals for vibration/position measurements, compares to alarm setpoints |
| Input Impedance | 10 kΩ (Proximitor and acceleration inputs) |
| Sensitivity | Radial Vibration / Thrust / Eccentricity: 3.94 mV/μm (100 mV/mil) or 7.87 mV/μm (200 mV/mil); Differential Expansion: 0.394 mV/μm (10 mV/mil) or 0.787 mV/μm (20 mV/mil); REBAM: 40 mV/μm (1000 mV/mil) or 80 mV/μm (2000 mV/mil) |
| Power Consumption | 7.7 W typical |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 Vdc |
| Accuracy | Direct/Gap: ±0.33% typical, ±1% max; 1X/2X: ±0.33% typical, ±1% max; Smax: ±5% max |
| Frequency Response | Radial Vibration: Direct 4 Hz–4 kHz or 1 Hz–600 Hz; Gap filter -3 dB at 0.09 Hz |
| Operating Temperature | With Internal/External Termination: -30°C to +65°C; With Internal Barrier: 0°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Physical Dimensions (I/O Module with barrier) | 241.3 × 24.4 × 163.1 mm |
| Weight (I/O Module with barrier) | 0.46 kg |
| Rack Space | Monitor: 1 full-height front slot; I/O: 1 full-height rear slot |
| Approvals | ATEX / IECEx / CSA / cNRTLus Zone 2 and Division 2 certifications |
FAQ
FAQ
Q1: What is the main purpose of the 3500/40M 135489-04 module?
A1: It receives and processes proximity probe signals from Bently Nevada sensors, providing vibration, thrust position, eccentricity, and differential expansion monitoring with alarm comparison.
Q2: How many channels does this module support?
A2: It supports 4 channels, which can be configured in pairs for different or identical monitoring functions.
Q3: What is the input impedance?
A3: The standard I/O input impedance is 10 kΩ.
Q4: What is the power consumption?
A4: Typical power consumption is 7.7 W.
Q5: What is the operating temperature range?
A5: -30°C to +65°C with standard termination modules, 0°C to +65°C with internal barrier modules.
Q6: What are the dimensions and weight of the module?
A6: Dimensions are 241.3 × 24.4 × 163.1 mm, weight is 0.46 kg.
Q7: How accurate is the module?
A7: Direct/Gap values ±0.33% typical, ±1% max; Smax ±5% max.
Q8: Does this module have hazardous area certifications?
A8: Yes, it is certified for ATEX, IECEx, CSA, and cNRTLus, suitable for Zone 2 and Division 2 environments.
